Gas Station with Motion Sensor IP66 90W LED Ceiling Recessed Canopy Light
Gas Station with Motion Sensor IP66 90W LED Ceiling Recessed Canopy Light
Gas Station with Motion Sensor IP66 90W LED Ceiling Recessed Canopy Light
Gas Station with Motion Sensor IP66 90W LED Ceiling Recessed Canopy Light
Gas Station with Motion Sensor IP66 90W LED Ceiling Recessed Canopy Light
1 / 5
Gas Station with Motion Sensor IP66 90W LED Ceiling Recessed Canopy Light
Gas Station with Motion Sensor IP66 90W LED Ceiling Recessed Canopy Light
Gas Station with Motion Sensor IP66 90W LED Ceiling Recessed Canopy Light
Gas Station with Motion Sensor IP66 90W LED Ceiling Recessed Canopy Light
Gas Station with Motion Sensor IP66 90W LED Ceiling Recessed Canopy Light

Gas Station with Motion Sensor IP66 90W LED Ceiling Recessed Canopy Light

Customization: Available
Lamp Body Material: Aluminum
IP Rating: IP66
Send Inquiry

Product Description

ℹ

Basic Info.

Model NO.
TP-CPSM90-L
Base Type
FESTOON
Irradiated Area
15-30m²
Input Voltage
220v
Power
60-100w
Color Temperature
Cool White
Emitting Color
White
LED Chips Brand
Nichia
Certification
CCC, CE, CQC, C-tick, EMC, Energy Star, ETL, FCC, FDA, GOST, GS, LVD, PSE, REACH, RoHS, SAA, SASO, VDE
Transport Package
Kraft Paper Carton
Specification
315*315*136mm
Origin
China
HS Code
9405409000
Production Capacity
5000PCS/Month
★

Product Description

The CPSM Series surface mount LED canopy is a utility ceiling-mount fixture for general lighting applications in parking garages, designed for easy installation and maintenance. The CPSM Series LED canopy delivers High lumens, accepts 100-277VAC/347-480VAC, consumes 40/60/90 watts and produces luminous intensity equivalent to 175W/250W/400W metal halide. Available in motion sensor option, the CPSM LED canopy will further save energy during application.

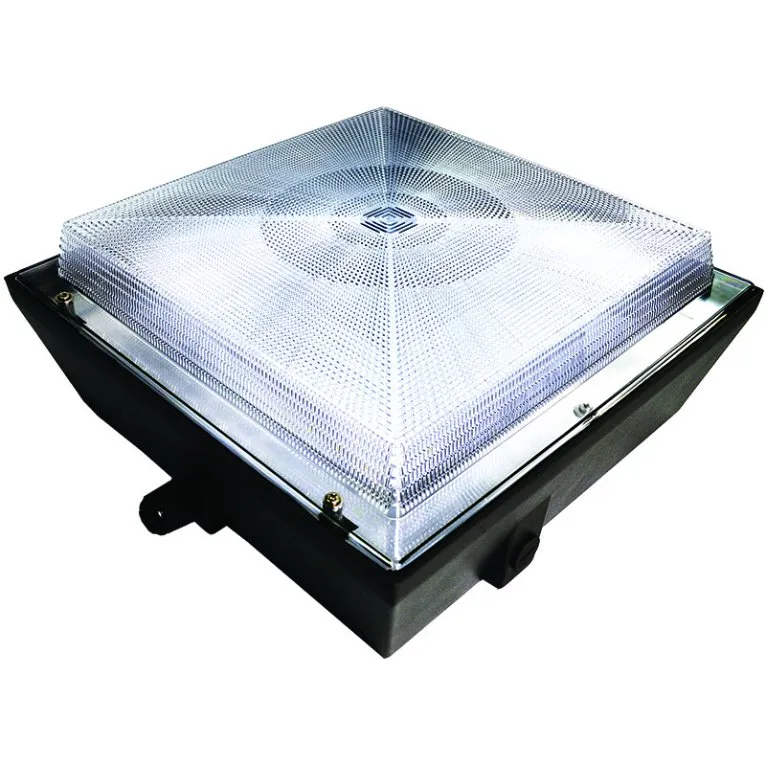

90W LED Ceiling Recessed Canopy Light

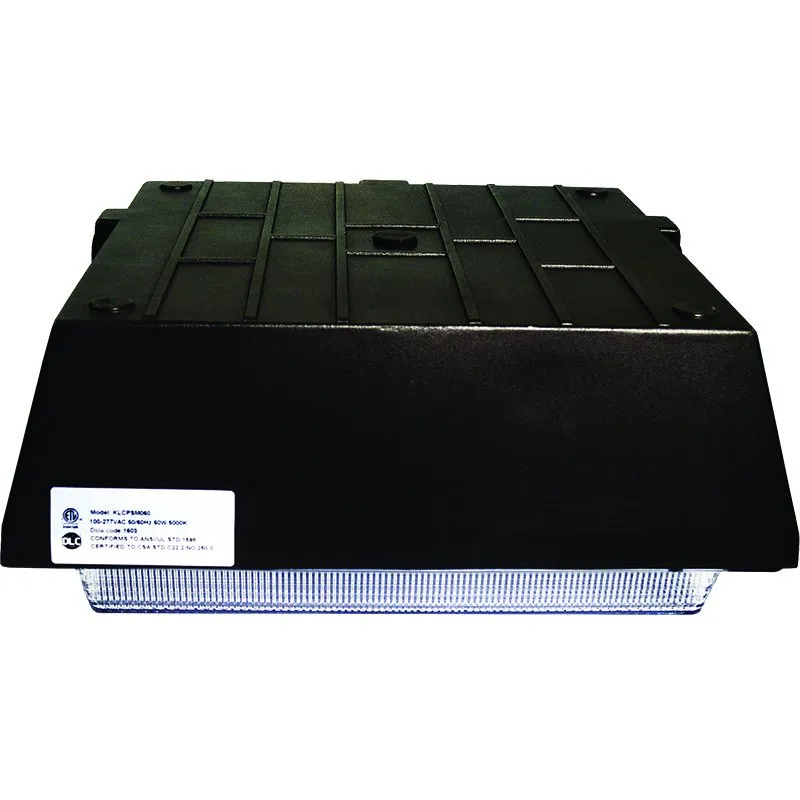

LED Ceiling Recessed Canopy Light

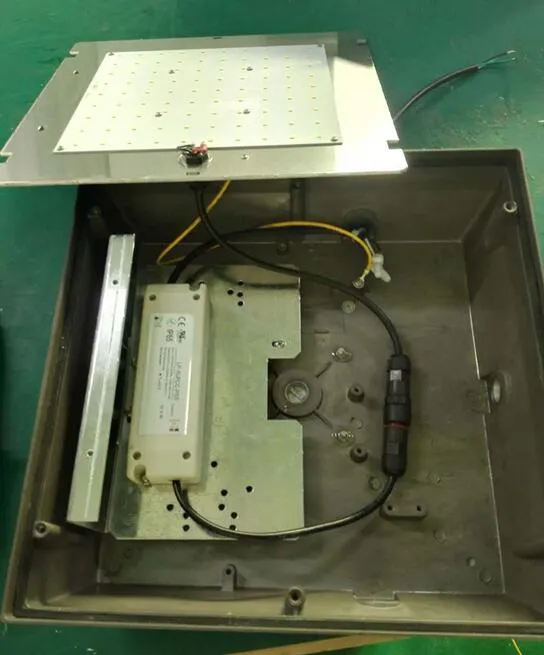

LED Canopy Light Design
LED Light Component

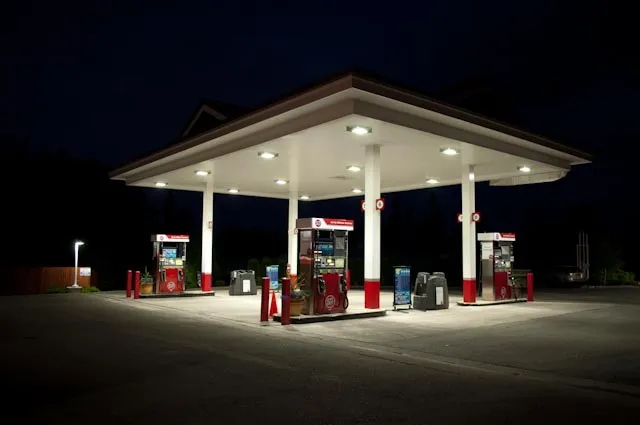

Gas Station Lighting Application
⚙

CONSTRUCTION & MATERIALS

  • One-piece die-cast aluminum housing
  • One-piece silicone perimeter lens gasket and closed-cell neoprene housing gasket help to seal out moisture and contaminants
  • High quality shock proof polycarbonate lens with UV inhibitors
  • Integral secondary heat sink to optimize thermal transfer and maximize performance and life of LED
  • Driver is mounted in direct contact with the casting for a low operating temperature and long life
  • Polyester powder-coated finish, rust and corrosion proof
⚡

SYSTEM & OPTICS

  • Mounting: Three ¾" mounting holes plus one on top; bracket and screws supplied.
  • Environment: ETL/cETL listed for outdoor locations.
  • Electrical: Universal input voltage 100-277VAC or 347VAC-480VAC, 50/60Hz.
  • Optical: Extremely wide lighting distribution with High performance LM80 SMD LEDs.
  • CCT: 5000K standard (other options available for special order).
  • Controls: 0-10V dimmable, photocell, and motion sensor options.
📊

General Performance Data

ITEM SPECIFICATION KLCPSM40-L KLCPSM60-L KLCPSM90-L KLCPSM40-H KLCPSM60-H KLCPSM90-H
PERFORMANCE Power (W) 40W 60W 90W 40W 60W 90W
Lumens (lm) 4600lm 6900lm 10000lm 4500lm 6600lm 9800lm
Efficacy (lm/W) 119lm/W 114lm/W 113lm/W 112lm/W 110lm/W 108lm/W
ELECTRICAL CRI >70
Input Voltage 100-277VAC / 347-480VAC
Power Factor 0.98 at 120VAC | 0.90 at 277-480VAC
PHYSICAL Housing Die-cast aluminum body (Bronze/Black), PC diffuse
Temperature -30ºC Up to 50ºC (-22ºF up to 122ºF)
CERT Warranty 5 Years
Certification ETL/cETL, DLC
?

Frequently Asked Questions

What are the main applications for the CPSM Series LED canopy?
The CPSM Series is designed for utility ceiling-mount applications, particularly in parking garages, gas stations, and general outdoor lighting environments.
Is the fixture durable enough for outdoor wet locations?
Yes, the fixture features a one-piece die-cast aluminum housing with silicone perimeter gaskets, making it ETL/cETL listed for damp and wet outdoor locations.
What voltage range does the CPSM LED canopy support?
It supports a universal input voltage range of 100-277VAC, with high-voltage options of 347-480VAC also available.
Does this light support energy-saving controls?
Yes, it offers several lighting control options including 0-10V dimming, photocells, and motion sensors to maximize energy efficiency.
What is the lifespan and warranty of these LED lights?
The CPSM Series uses high-performance LM80 SMD LEDs with an L70 rating of more than 50,000 hours and is backed by a 5-year warranty.
What are the power options available for this model?
The series is available in 40W, 60W, and 90W configurations, delivering up to 10,000 lumens.
