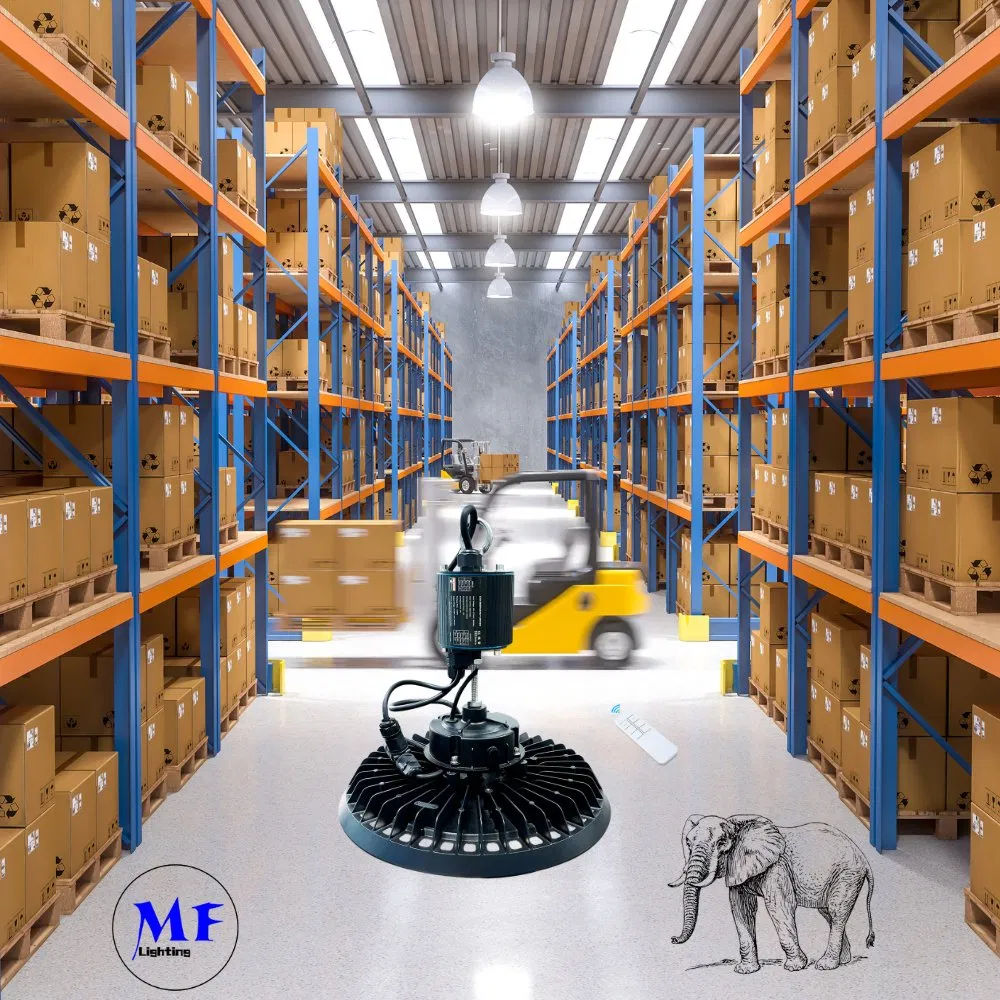

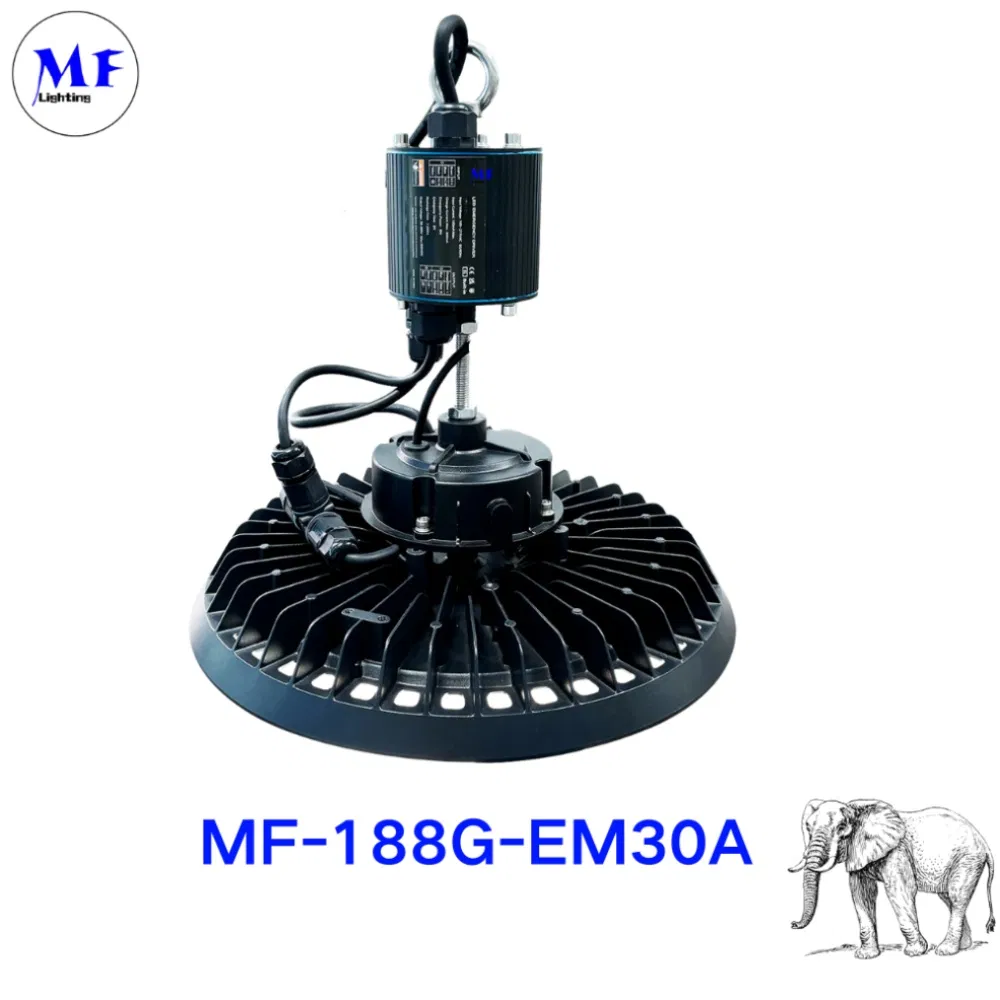

16yrs Manufacture IP65 Waterproof 15W 3h 20W 2h 30W 1.5h LiFePO4 LED Light Emergency Backup Ballast Battery Power Supply Kit Highbay 3years Warranty Driver

Still deciding? Get samples of $ !
Request Sample

Product Description

Basic Specifications

Input Voltage
100-277VAC 50/60Hz
Input Current
100mA Max
Charging Power
5.0W Max
Power Factor
>0.5 230 VAC
Charging Current
0-350mA
Charging Time
≥24 hours
Emergency Output
DC100-260V, DC300V Max
Battery Capacity
LiFePO4 6000mAh 9.6V
Case Temp.
Tc 60℃ Max

IP65 Waterproof LED Emergency Backup Kit

Designed for LED UFO Highbay Lights and modular fixtures, these emergency drivers provide fail-safe lighting during grid outages. They transform standard industrial/commercial LEDs into safety-compliant assets, enabling safe evacuation and minimizing operational disruption.

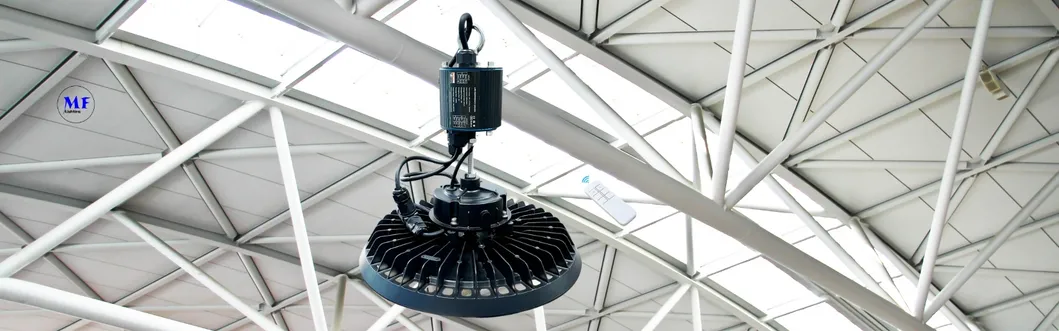

Emergency Backup Power Supply Overview

Key Features

Rapid Response: Switches to battery power in less than 0.5s during outages.
Constant Power: Ensures stable emergency output for various lighting products.
LiFePO4 Technology: Built-in over-charge, discharge, and short-circuit protection.
IP65 Rated: Waterproof design suitable for demanding environments (0 to 60ºC).
Advanced Control: Includes integrated waterproof button, indicator light, and remote control.

Professional Design

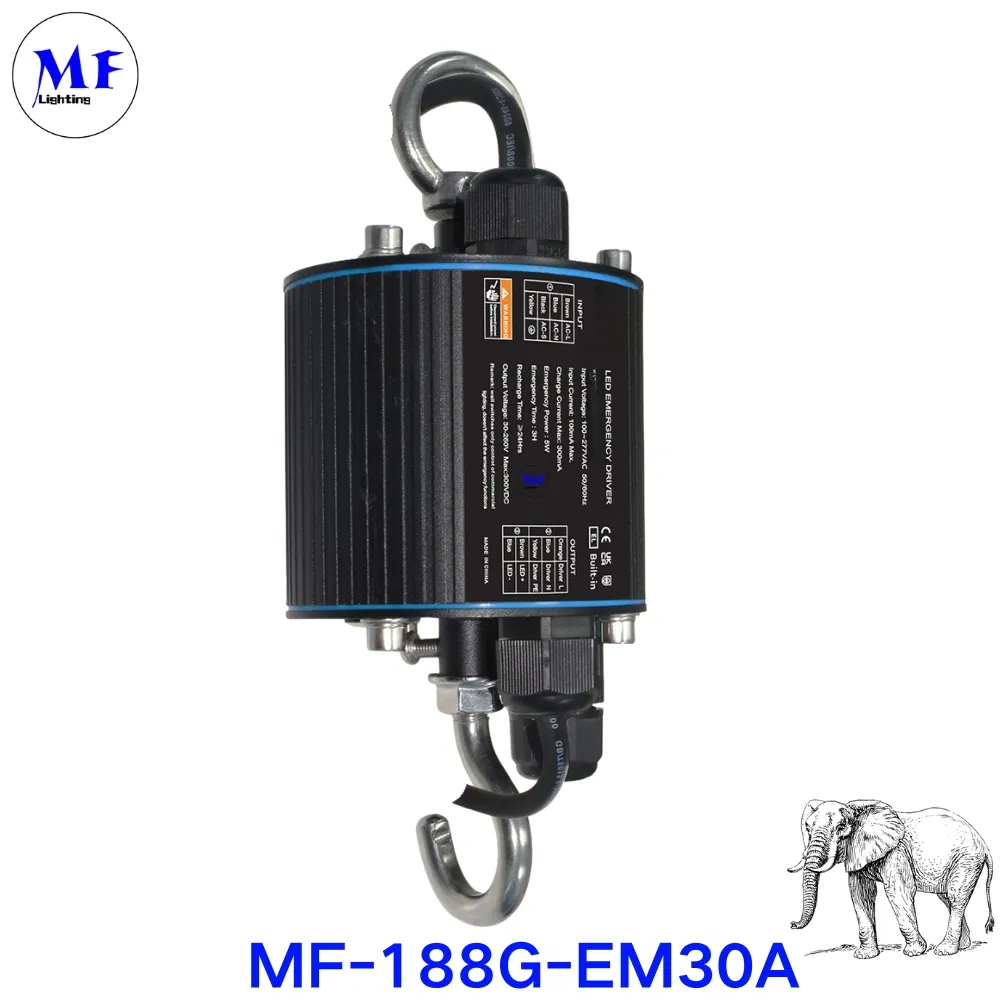

LED Emergency Driver Design View 1

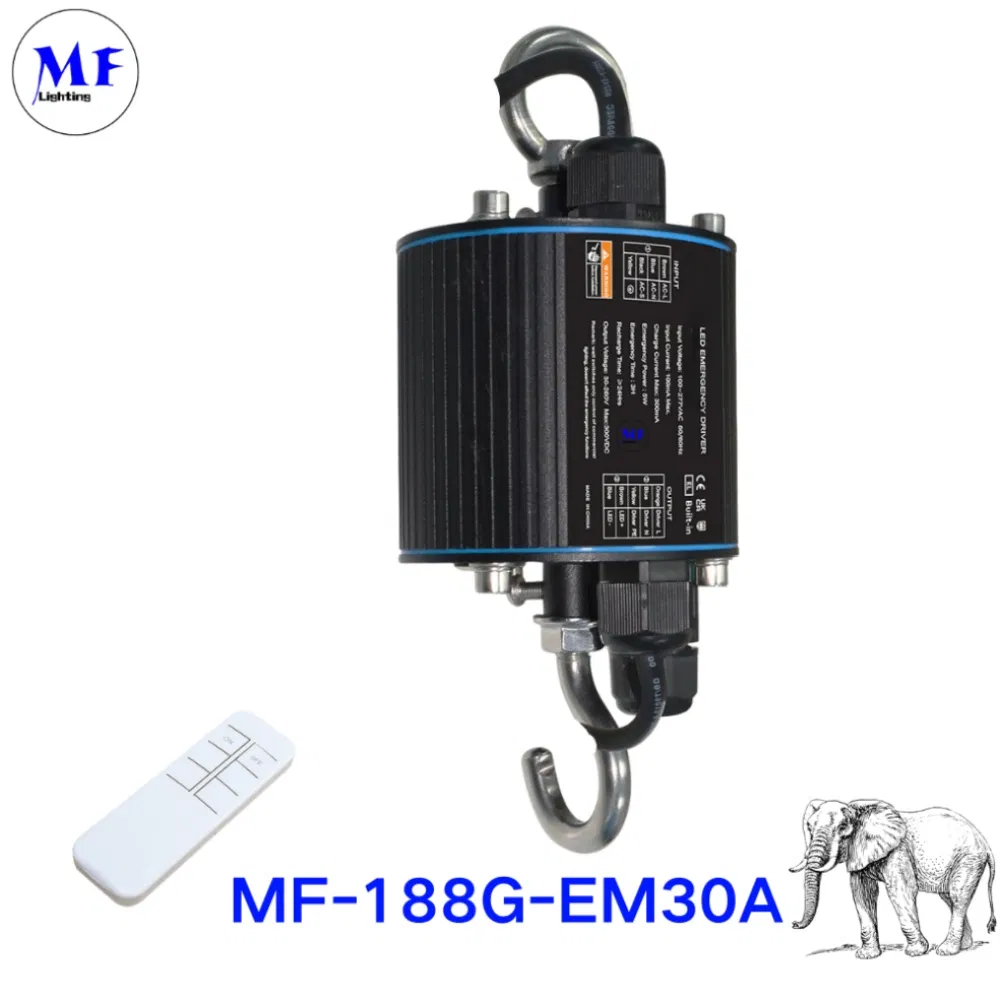

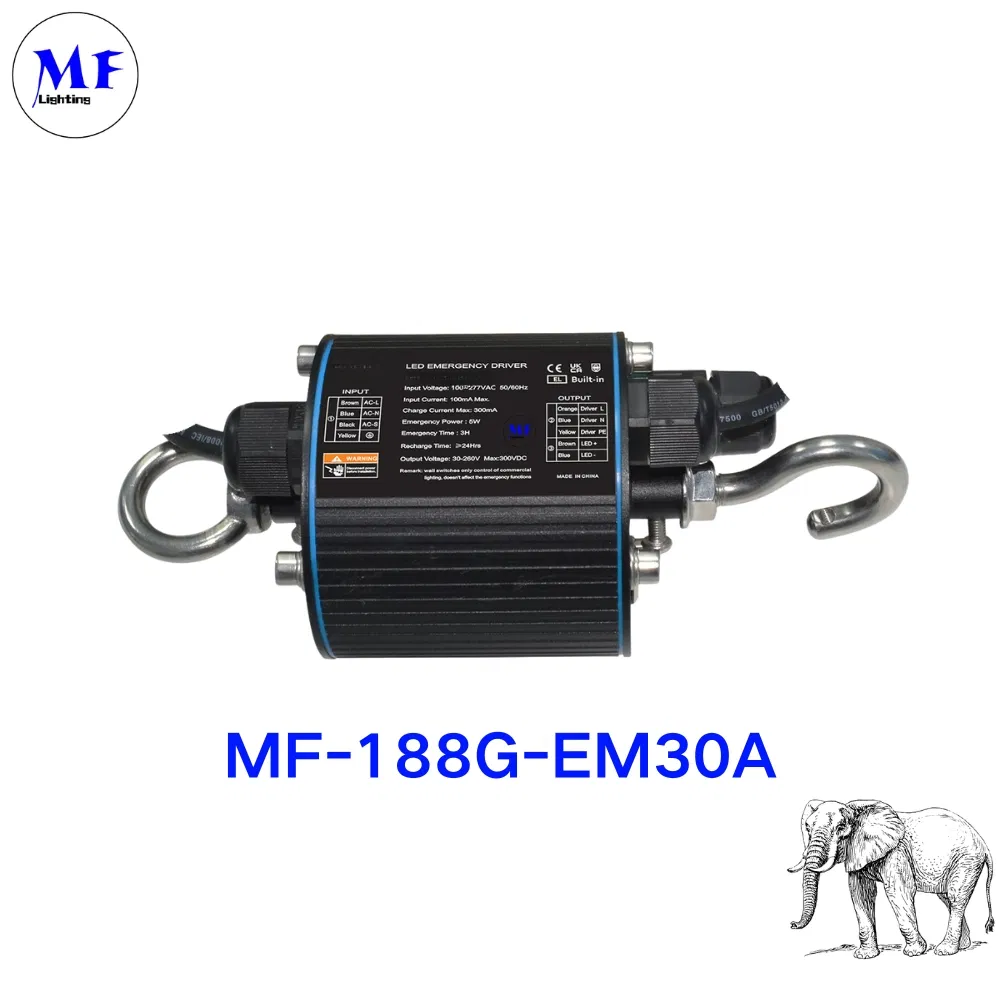

LED Emergency Driver Design View 2

Wiring & Dimensions

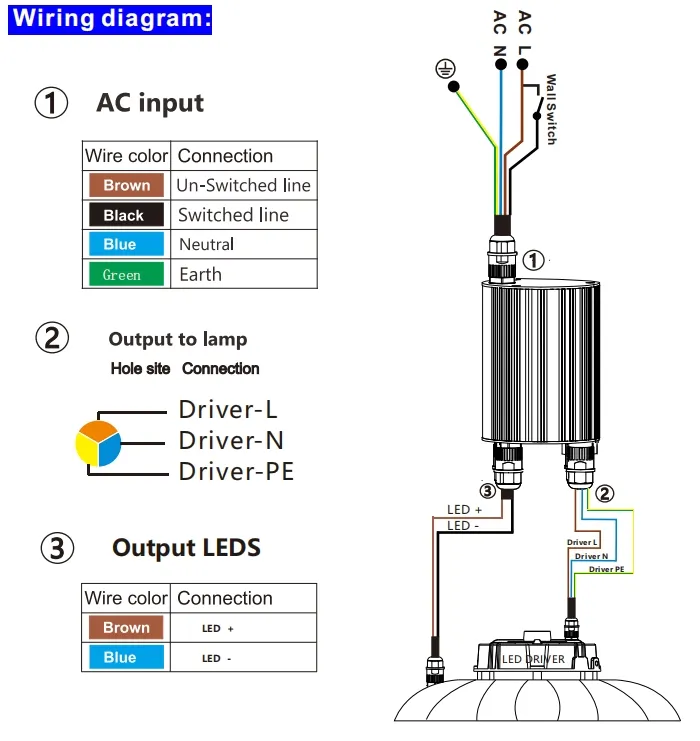

Emergency Backup Wiring Diagram

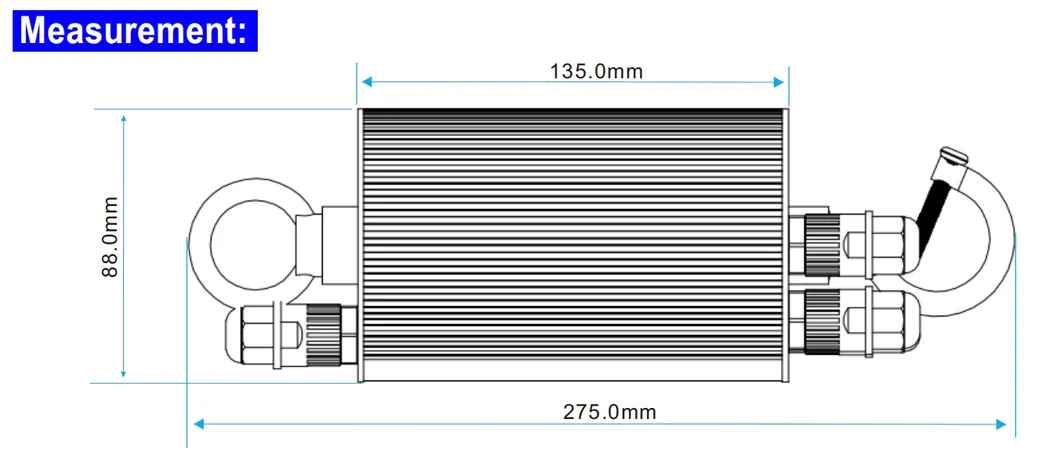

Product Dimensions

LED Indicator & Test Button Status

LED INDICATOR

Green breathing pattern: Charging mode
Green stable: Battery fully charged
Red flashing (once per sec): Battery not connected or defective
Red flashing (four times per sec): Load failure / Short circuit

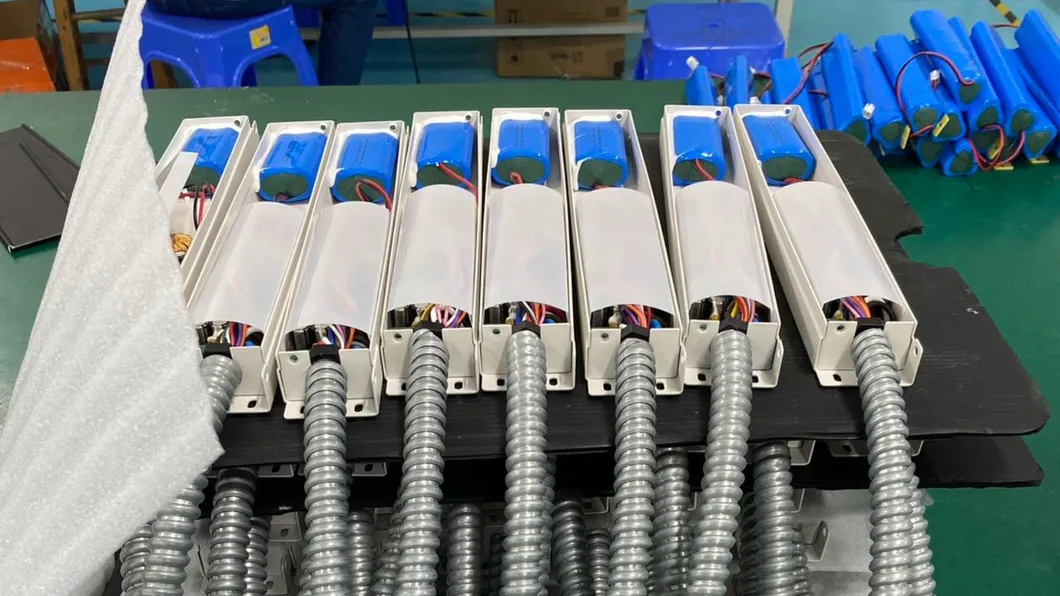

Indicator Part 1
Indicator Part 2

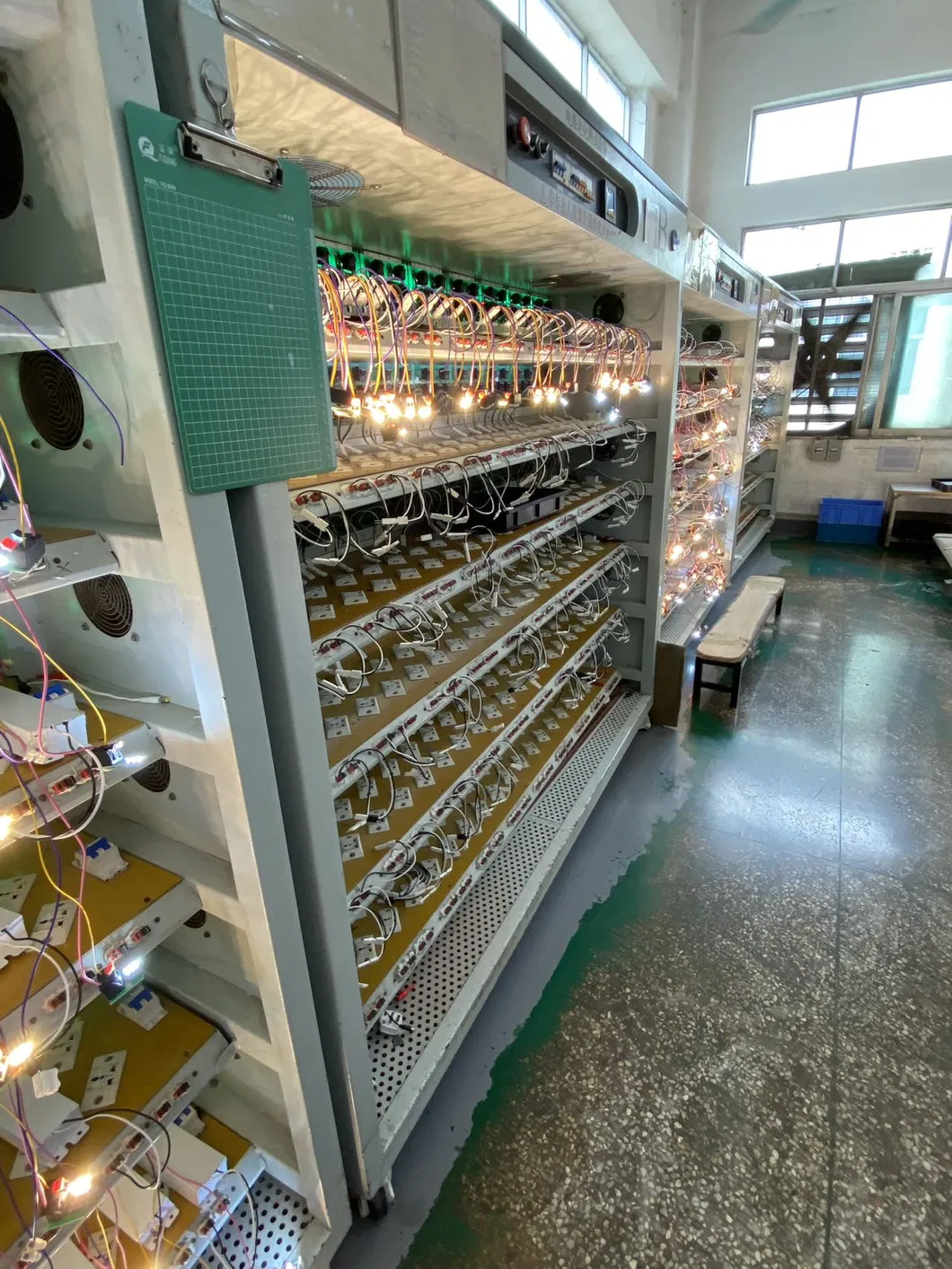

Indicator Part 3

Wide Applications

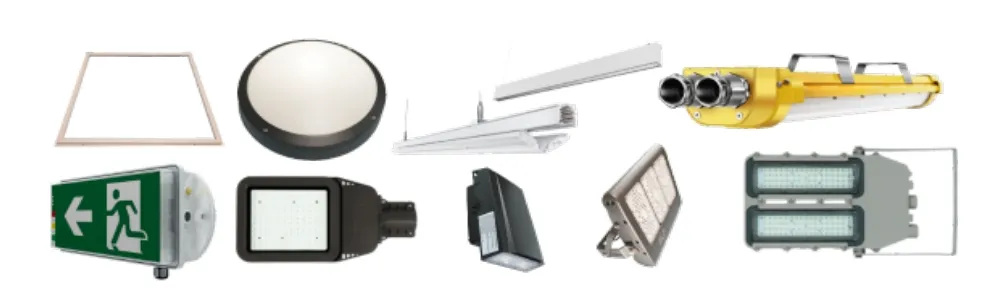

Application Range

Compatible with: Street Lights, High Bay Lights, Panel Lights, Tri-proof Lights, Flood Lights, and Explosion-proof Lights.

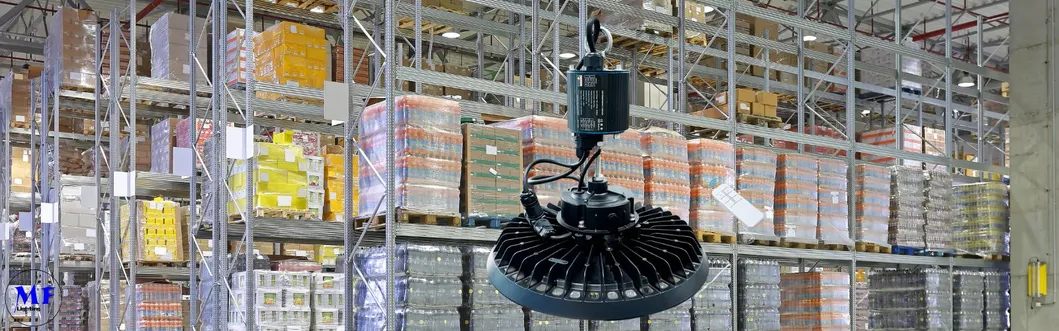

Industrial Application

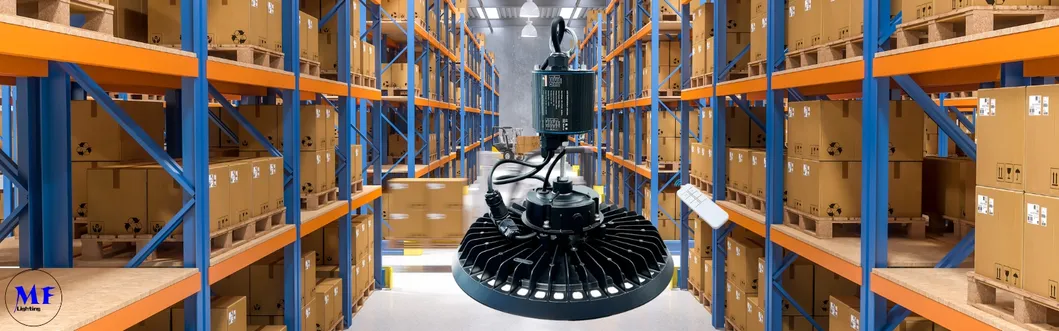

Commercial Application

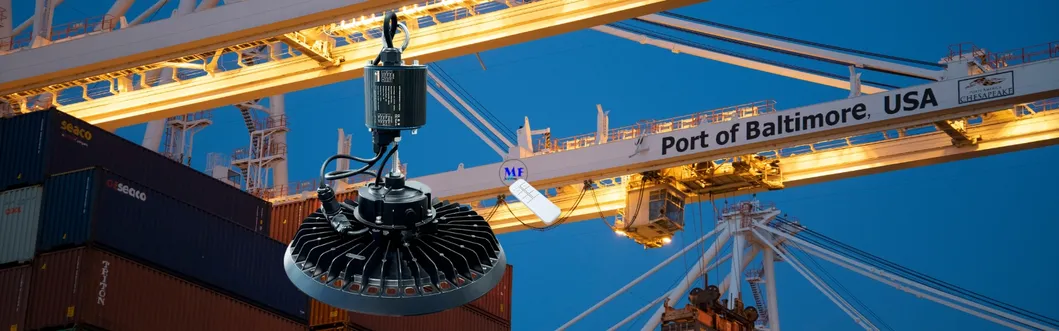

Public Infrastructure
Transport Hub Application

Frequently Asked Questions

What is the main application of this emergency driver?
It is primarily used for LED High Bay lights and industrial fixtures to provide 1.5 to 3 hours of backup illumination during power outages.
Does this unit support self-testing?
Yes, it features an automatic self-test function every 180 days to ensure the battery and driver are in optimal working condition.
Is the battery replaceable?
The system uses a high-quality LiFePO4 battery pack. For safety and performance, we recommend using original replacement batteries provided by the manufacturer.
What is the typical charging time?
A full charge requires at least 24 hours of connection to the main power supply to ensure maximum emergency duration.
Can it be used in outdoor environments?
Yes, with an IP65 waterproof rating, it is designed to withstand dust and water, making it suitable for industrial and outdoor protected fixtures.
What are the available shipping and payment terms?
We support EXW, FOB, CIF, and DDP terms. Payments can be made via T/T, PayPal, or Western Union.
