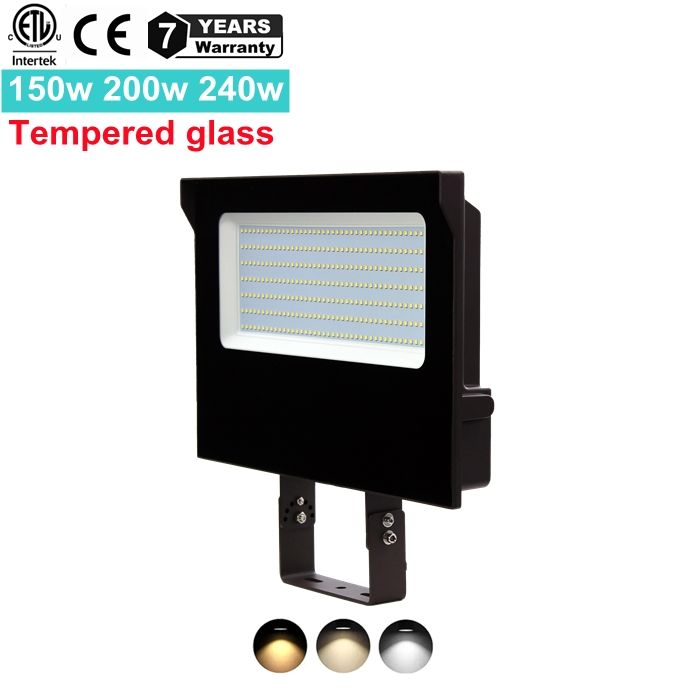

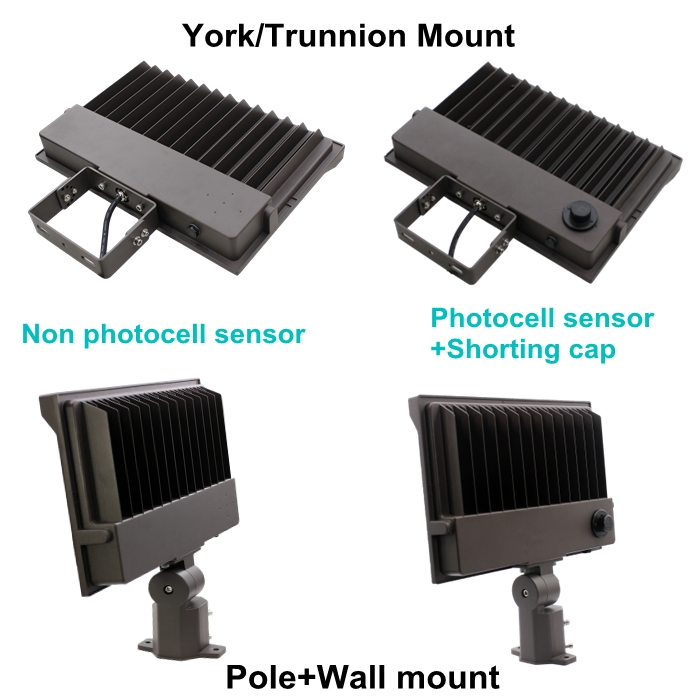

Die-Casting Aluminum 0-10V Dimmable PIR Photocell Sensor 200W Shoe Box Floodlight 240W 150W LED Flood Light Trunnion Wall Mount ETL TUV CE EMC RoHS
Die-Casting Aluminum 0-10V Dimmable PIR Photocell Sensor 200W Shoe Box Floodlight 240W 150W LED Flood Light Trunnion Wall Mount ETL TUV CE EMC RoHS
Die-Casting Aluminum 0-10V Dimmable PIR Photocell Sensor 200W Shoe Box Floodlight 240W 150W LED Flood Light Trunnion Wall Mount ETL TUV CE EMC RoHS
Die-Casting Aluminum 0-10V Dimmable PIR Photocell Sensor 200W Shoe Box Floodlight 240W 150W LED Flood Light Trunnion Wall Mount ETL TUV CE EMC RoHS
Die-Casting Aluminum 0-10V Dimmable PIR Photocell Sensor 200W Shoe Box Floodlight 240W 150W LED Flood Light Trunnion Wall Mount ETL TUV CE EMC RoHS
1 / 5
Die-Casting Aluminum 0-10V Dimmable PIR Photocell Sensor 200W Shoe Box Floodlight 240W 150W LED Flood Light Trunnion Wall Mount ETL TUV CE EMC RoHS
Die-Casting Aluminum 0-10V Dimmable PIR Photocell Sensor 200W Shoe Box Floodlight 240W 150W LED Flood Light Trunnion Wall Mount ETL TUV CE EMC RoHS
Die-Casting Aluminum 0-10V Dimmable PIR Photocell Sensor 200W Shoe Box Floodlight 240W 150W LED Flood Light Trunnion Wall Mount ETL TUV CE EMC RoHS
Die-Casting Aluminum 0-10V Dimmable PIR Photocell Sensor 200W Shoe Box Floodlight 240W 150W LED Flood Light Trunnion Wall Mount ETL TUV CE EMC RoHS
Die-Casting Aluminum 0-10V Dimmable PIR Photocell Sensor 200W Shoe Box Floodlight 240W 150W LED Flood Light Trunnion Wall Mount ETL TUV CE EMC RoHS

Die-Casting Aluminum 0-10V Dimmable PIR Photocell Sensor 200W Shoe Box Floodlight 240W 150W LED Flood Light Trunnion Wall Mount ETL TUV CE EMC RoHS

Still deciding? Get samples of $ !
Request Sample
Send Inquiry

Product Description

Overview
Model NO.
SBLJX150-240W
Power
30W - 240W
Application
Square, Garden, Road Pathway
IP Rating
IP66
LED Chips
Nichia / 2835
Input Voltage
100-277V / 277-480V
Material
Die-Casting Aluminum + Tempered Glass
Working Temp
-40~+50℃
Dimmable
1-10V/0-10V Dimming
Lifespan
75,000 Hours
Product Description

Die-casting aluminum 0-10V dimmable PIR photocell sensor shoe box floodlight

High-performance lighting solution for industrial and commercial outdoor spaces, featuring advanced sensor options and robust construction.

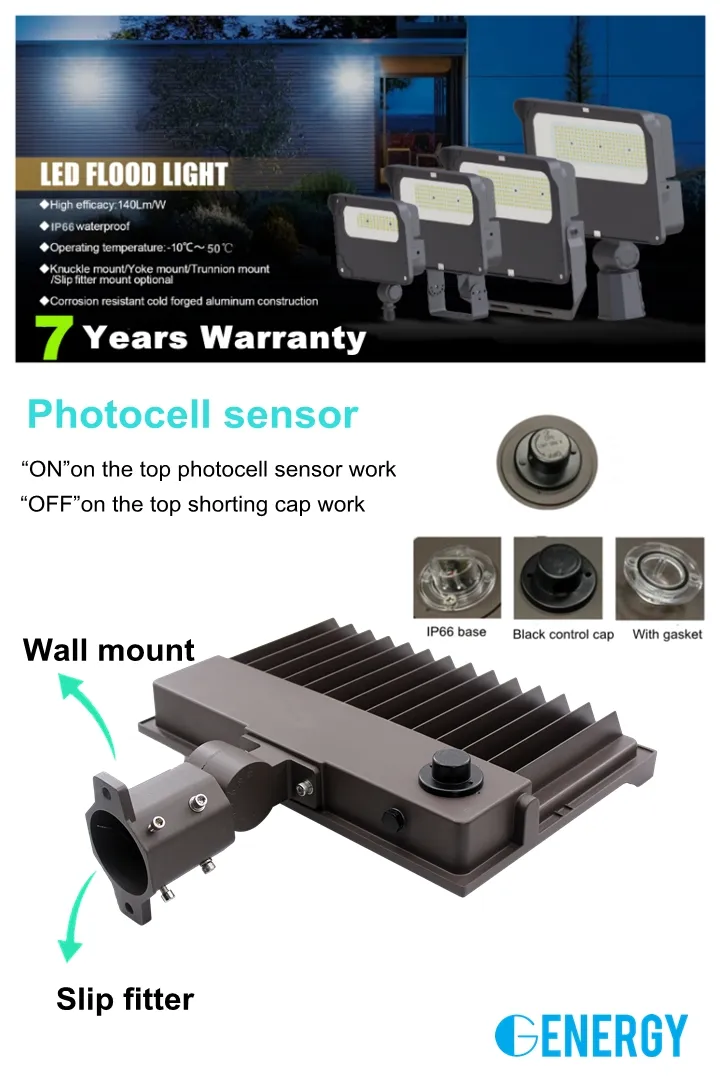

LED Flood Light Features

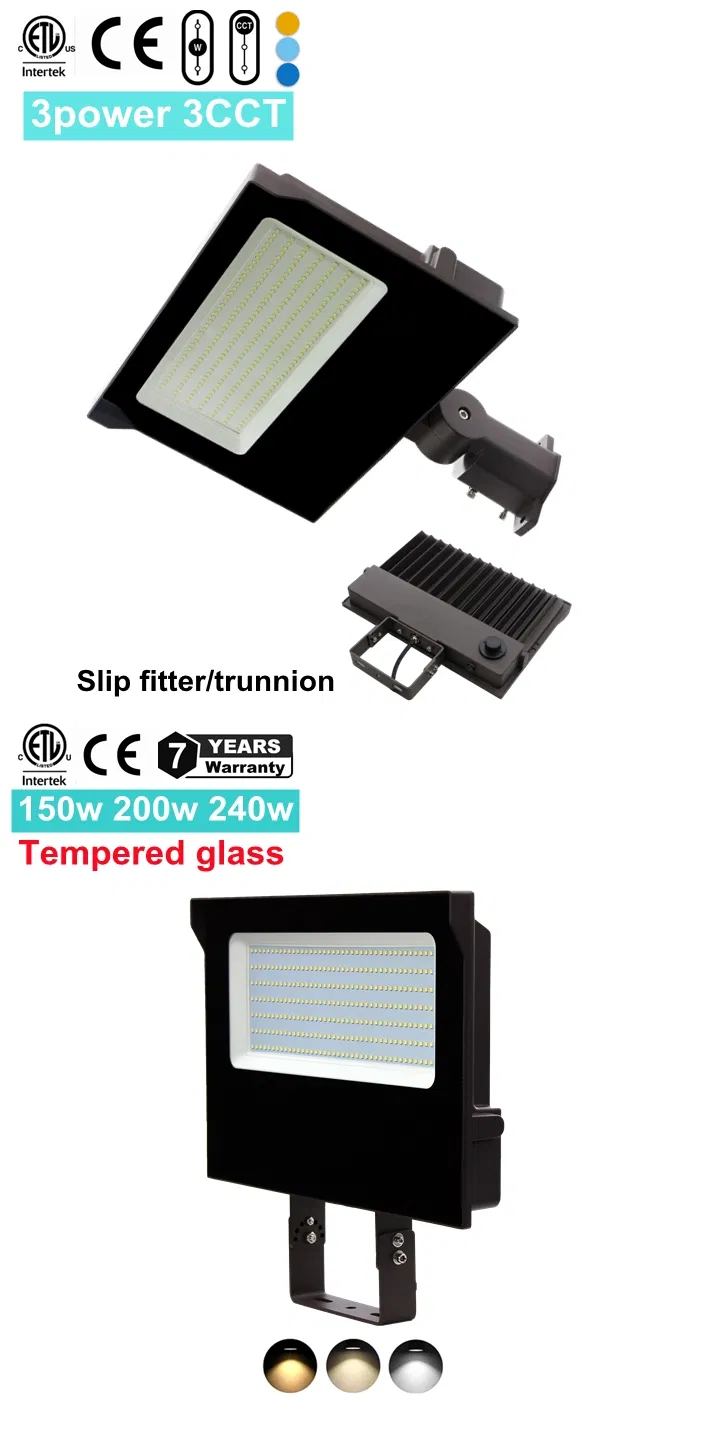

Product Details

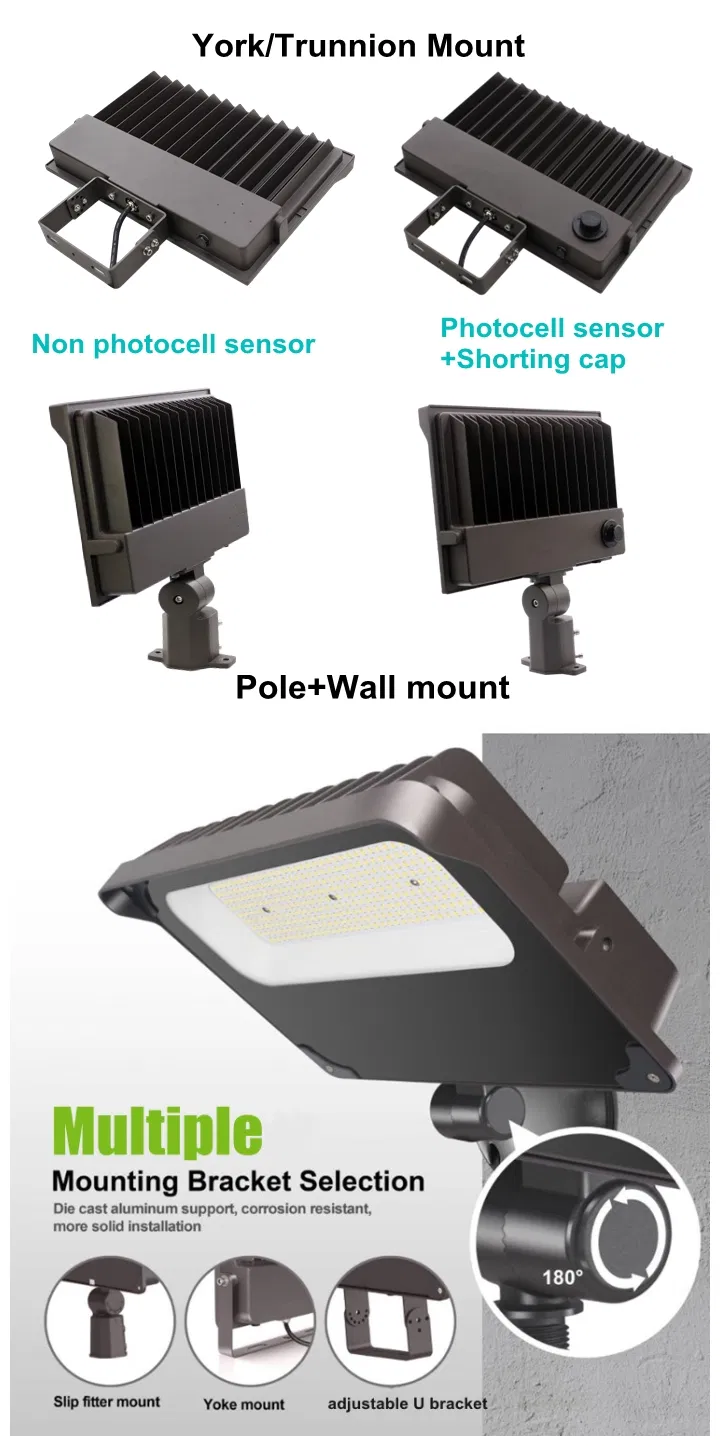

Application View
Product Parameters

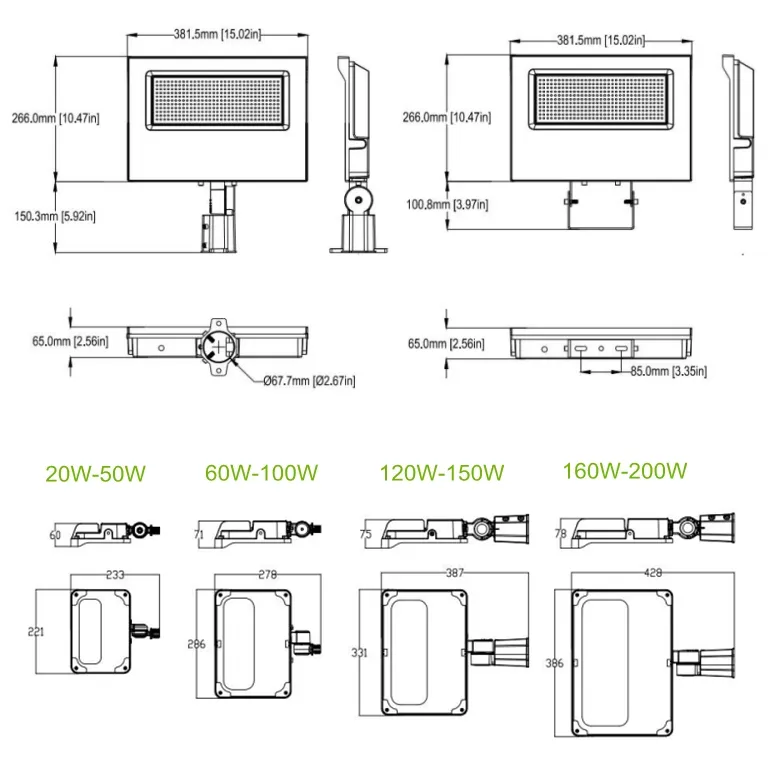

Technical Specs
Performance Chart
Wattage 30W-60W 80W-120W 150W-240W
Lumen Output 4200lm - 8400lm 11200lm - 16800lm 21000lm - 33600lm
Efficiency Standard 140lm/w (Customized up to 170lm/w)
Product Size 233*221*60mm 387*331*75mm 381*416*120mm
Color Temp 3000K, 4000K, 5000K, 5700K (Adjustable options available)
Lifespan 75,000 Hours (Approx. 20 years at 10hrs/day)
Installation Instructions

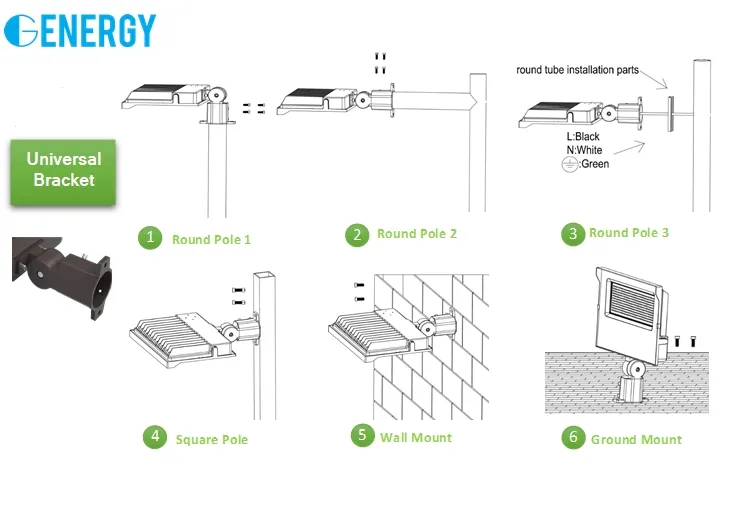

Installation Guide
Certifications & Packaging
Certification 1

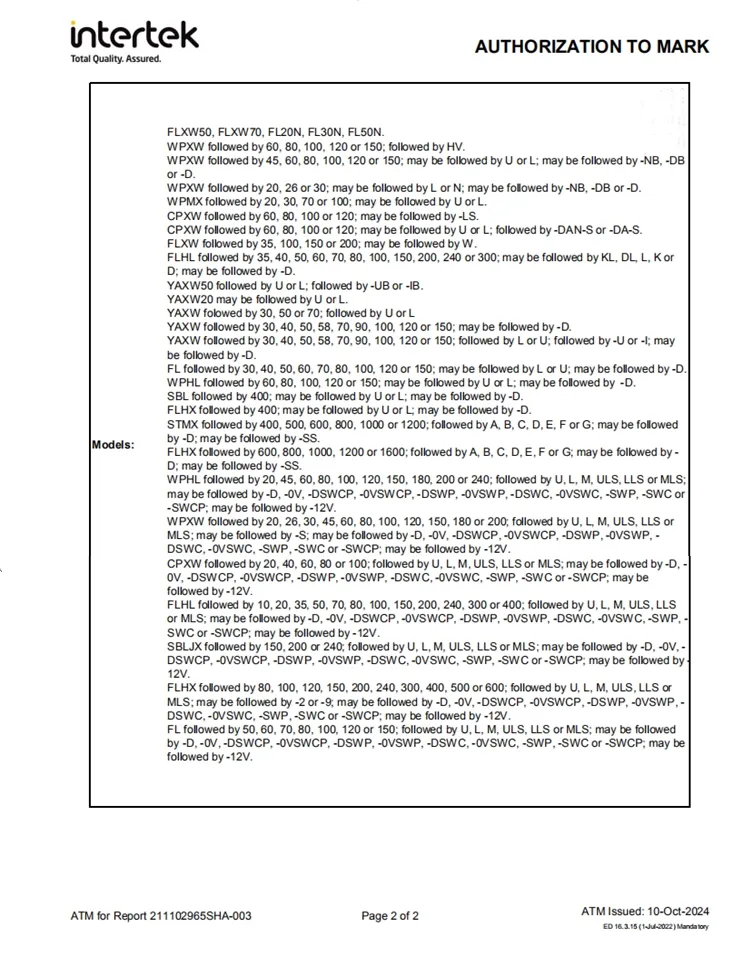

Certification 2
Packaging
Manufacturer Profile

Over 21 years of expertise in researching and manufacturing professional LED lighting solutions. Our facility spans 9,000 square meters across 5 floors, supported by a dedicated team of over 280 workers.

  • Integrated production with in-house driver manufacturing and PCB design.
  • Private housing moulds for cost efficiency and quality control.
  • Full range of certificates: ETL, cETL, DLC, SAA, CE, CB, RoHS.
  • 7-year warranty on all outdoor and high-power lighting products.
Factory Overview

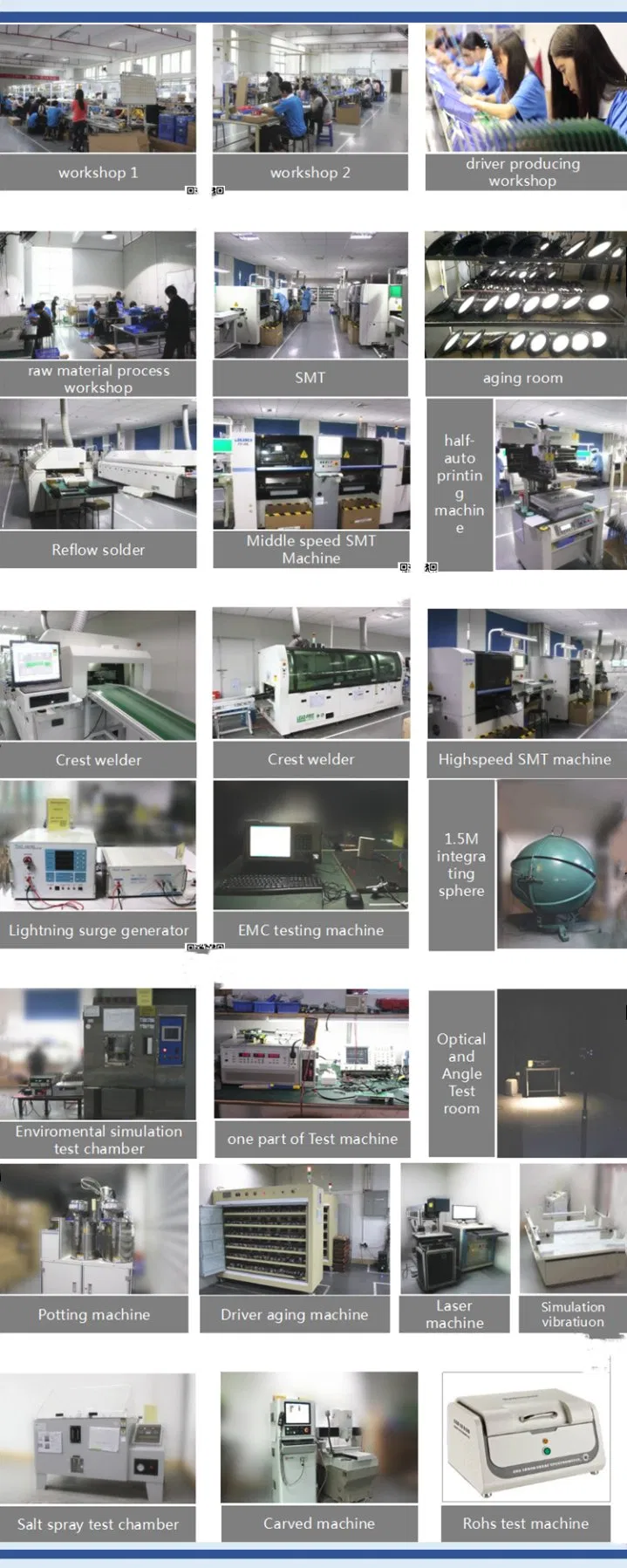

Production Line
Quality Control
Frequently Asked Questions
What are the dimming and sensor options?

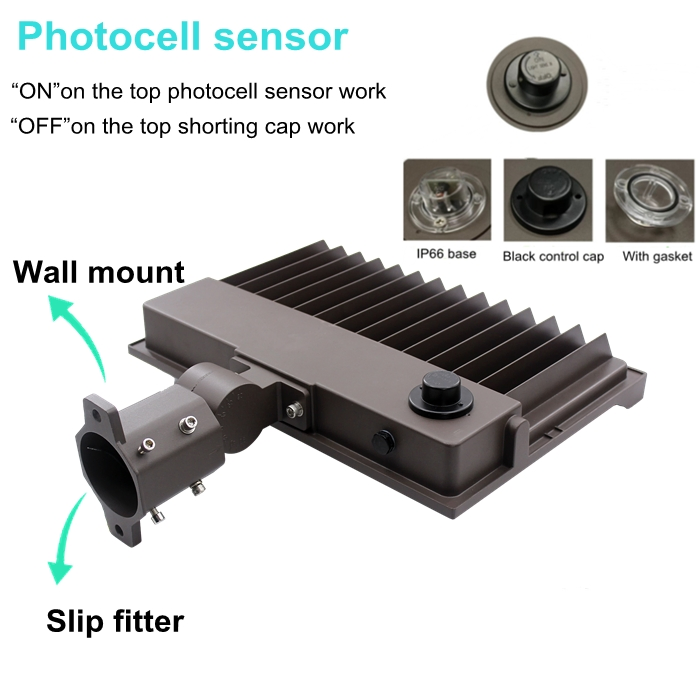

The floodlight supports 0-10V/1-10V dimming. It can be equipped with a PIR motion sensor or a photocell sensor for automatic day/night operation.
What is the warranty period for this LED light?
We provide a 7-year warranty on all outdoor high-power lights, including full lamp compensation.
Are these lights suitable for extreme weather?
Yes, with an IP66 waterproof rating and a working temperature range of -40℃ to +50℃, they are designed for harsh outdoor environments.
What certifications does this product carry?
The product is fully certified with ETL, cETL, DLC, TUV CE, RoHS, CB, and SASO, ensuring compliance with global safety standards.
Can the color temperature and wattage be adjusted?
Yes, we offer models with 3-Power and 3-CCT switchable options, allowing you to select the settings during installation.
What is the lumen efficiency?
The standard efficiency is 140lm/W, but we can customize units to reach up to 170lm/W for higher energy savings.
