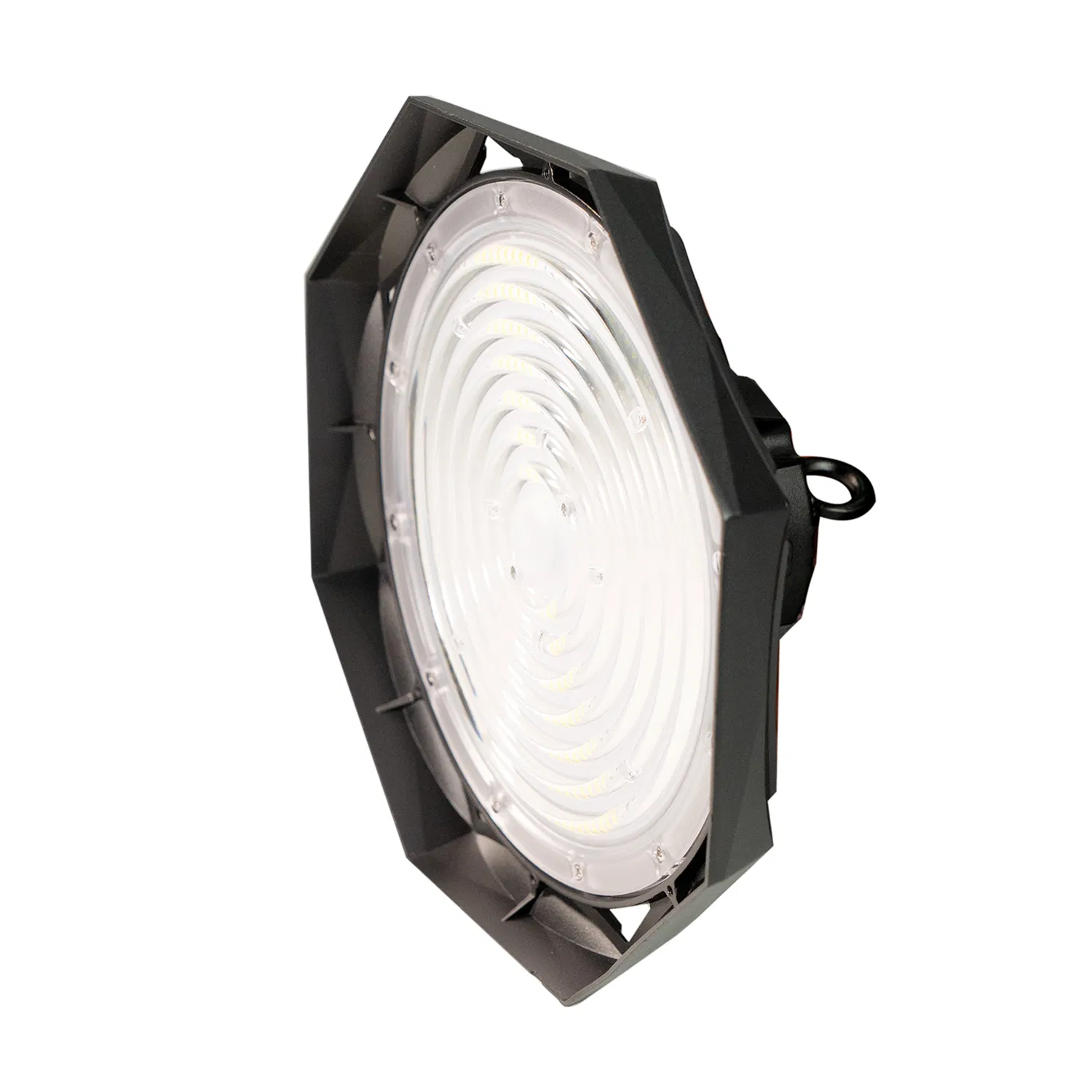

ENGINEERED FOR HARSH & HOT CONDITIONS

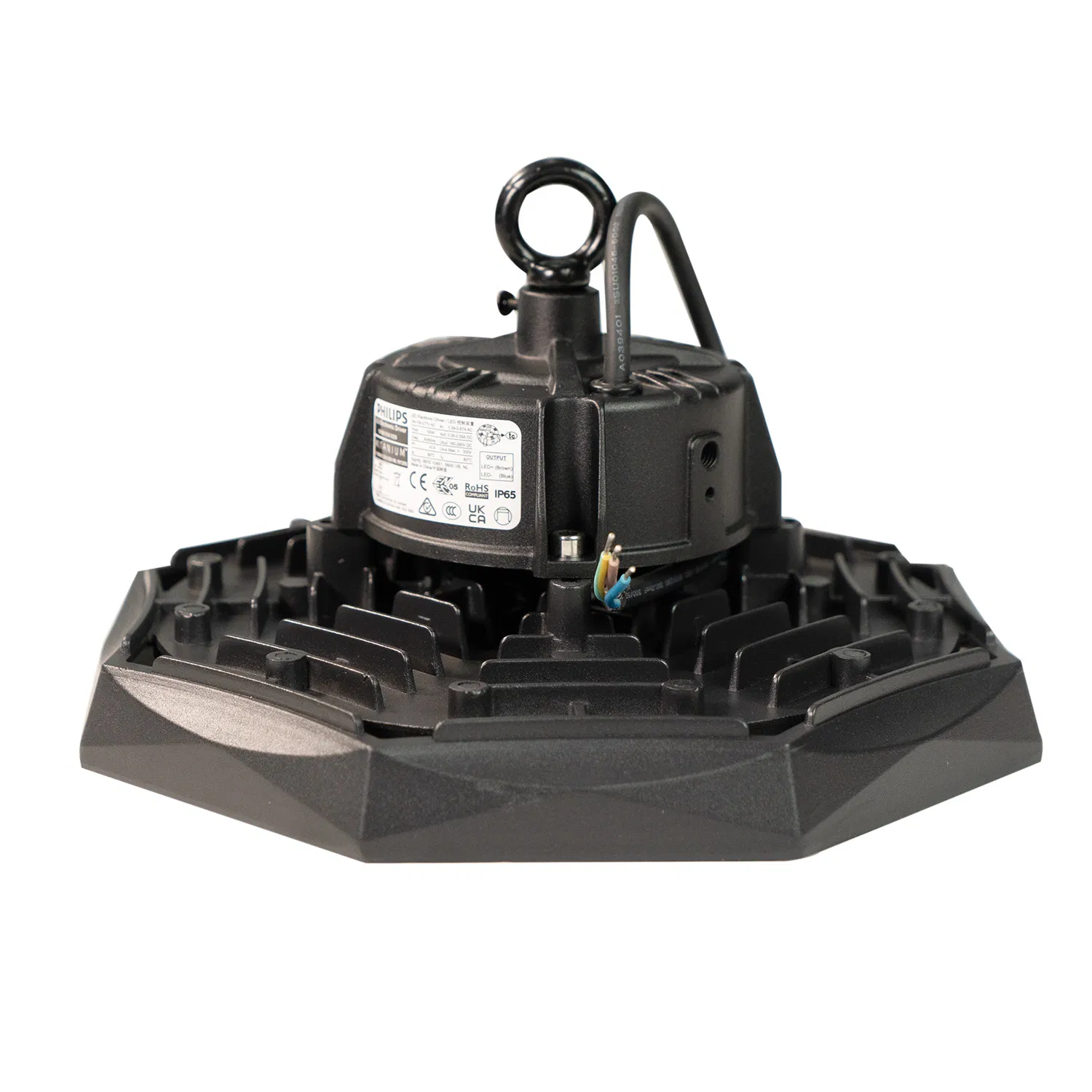

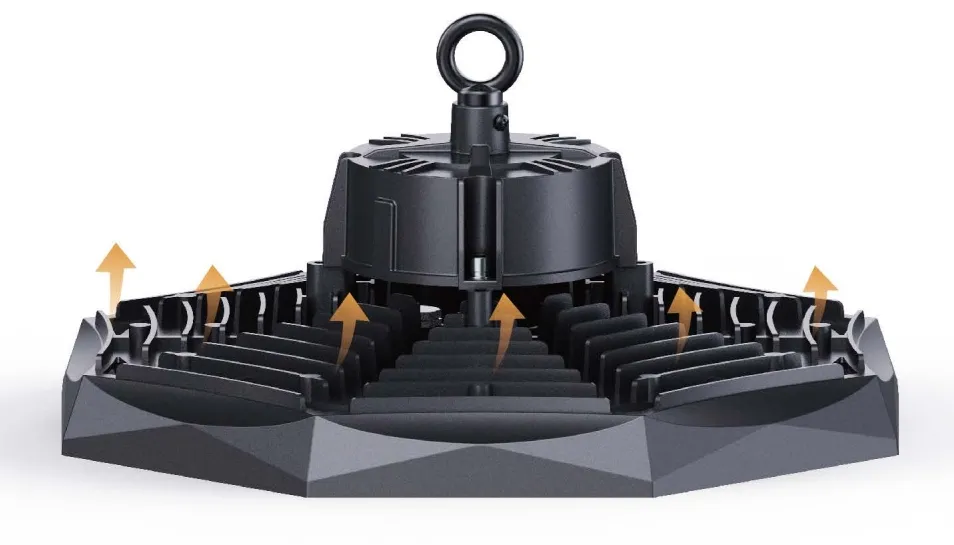

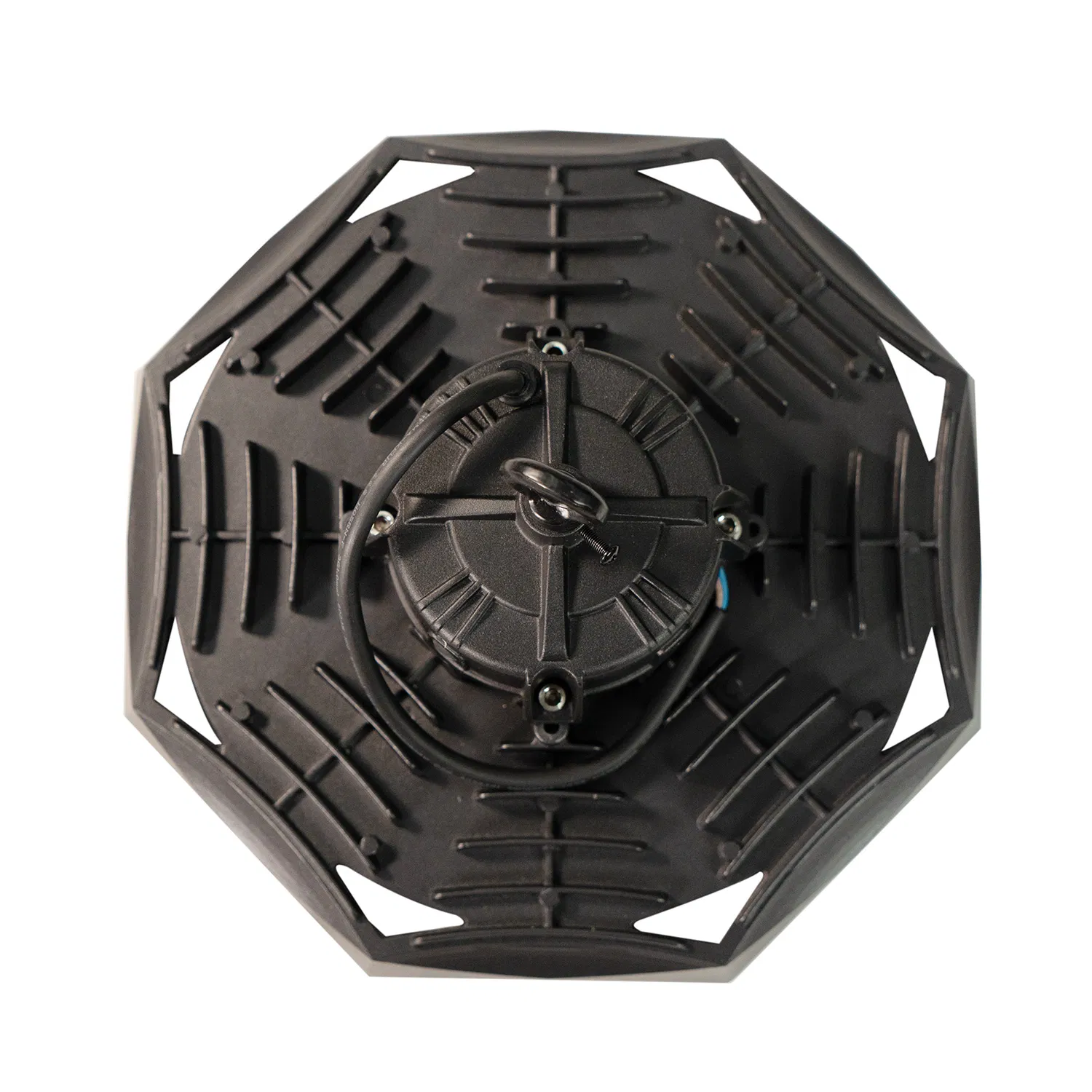

Die Cast Aluminum Material
The hollow heat dissipation structure design effectively increases the heat dissipation area, optimizes the air duct, and realizes three-dimensional efficient heat dissipation to reduce light attenuation and extend life.
🛡️ Leakage Prevention
Polymer thermal materials with insulation level 1, high voltage resistance, and no leakage risks.
🛡️ Anti-Corrosion
WF2 corrosion resistance level, operational from -40°C to 50°C. Weather resistance up to 10 years.
🛡️ Dust & Mosquito Prevention
Fully enclosed design for industrial safety and cleanliness.

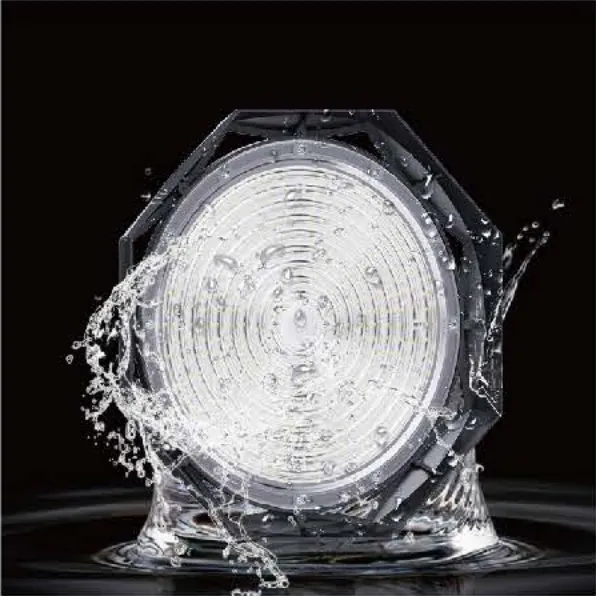

IP66: Protection against powerful water jets from any direction.
IK08: High protection level against harmful mechanical impacts.
| Model | JY-LZM100 | JY-LZM150 | JY-LZM200 |
|---|---|---|---|
| Power | 100W | 150W | 200W |
| Nominal Voltage | AC200-240V, 50/60Hz | ||
| Luminous Efficiency | 160Lm/W | ||
| LED Chip | SMD2835 | SMD3030 | ||
| CRI | CRI70 (CRI80 optional) | ||
| Lumen Output | 16000lm | 24000lm | 32000lm |
| IP / IK Rating | IP66 / IK08 | ||
| Net Weight | 1.85 kg | 2.15 kg | 2.75 kg |

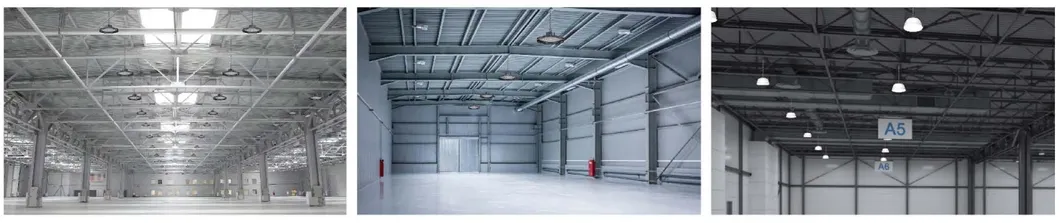

Ideal for commercial spaces, workshops, warehouses, offices, and complex multi-purpose environments.

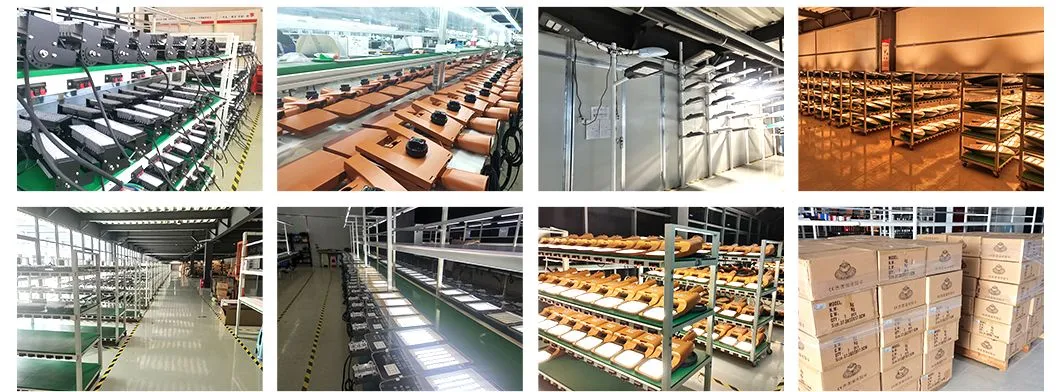

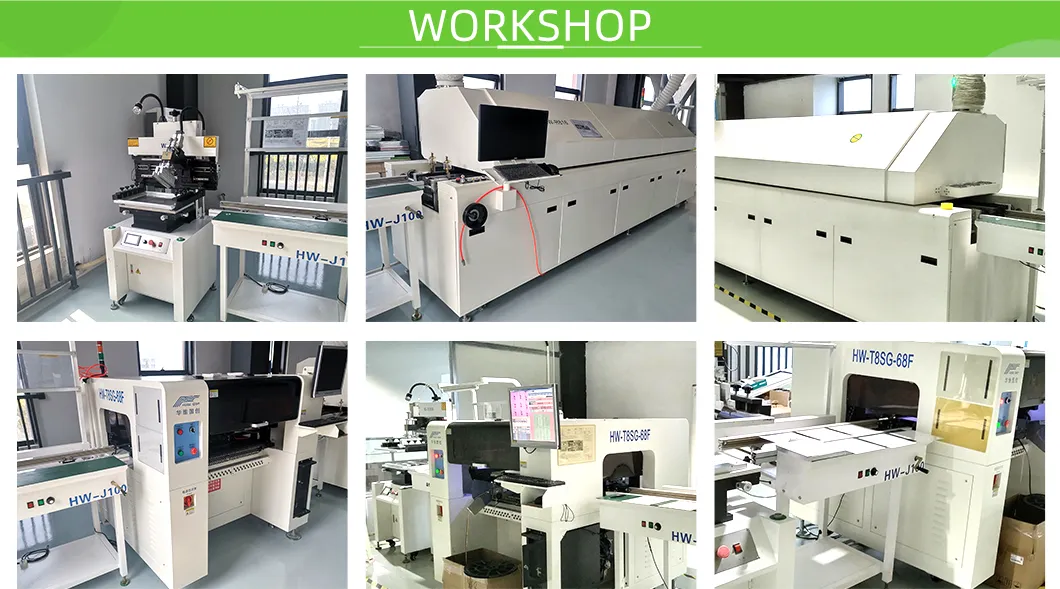

Our production facilities cover a vast area with multiple specialized lines, delivering up to 500,000 sets of LED lighting fixtures annually. We focus on energy storage, renewable resource utilization, and advanced environment-friendly materials.

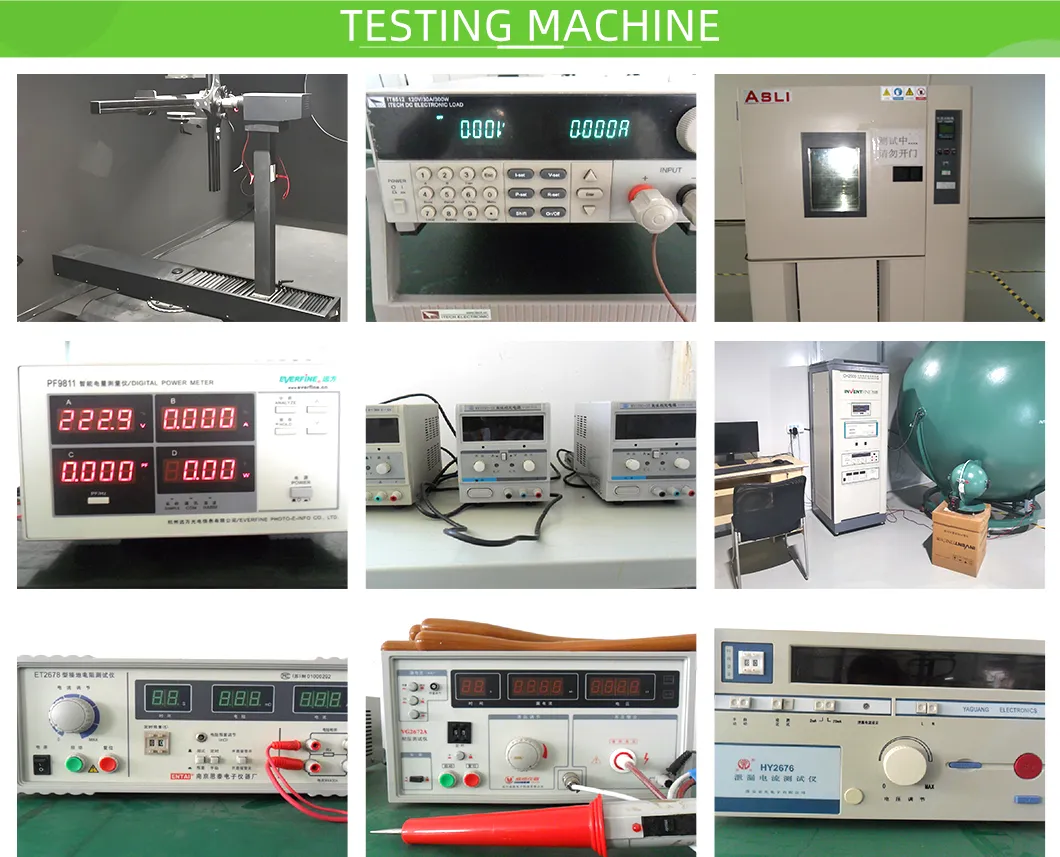

Strict Quality Inspection: We perform charge/discharge testing, insulation testing, aging testing, sampling testing, and structural integrity checks to ensure global compliance (CE, CCC, ROHS).
