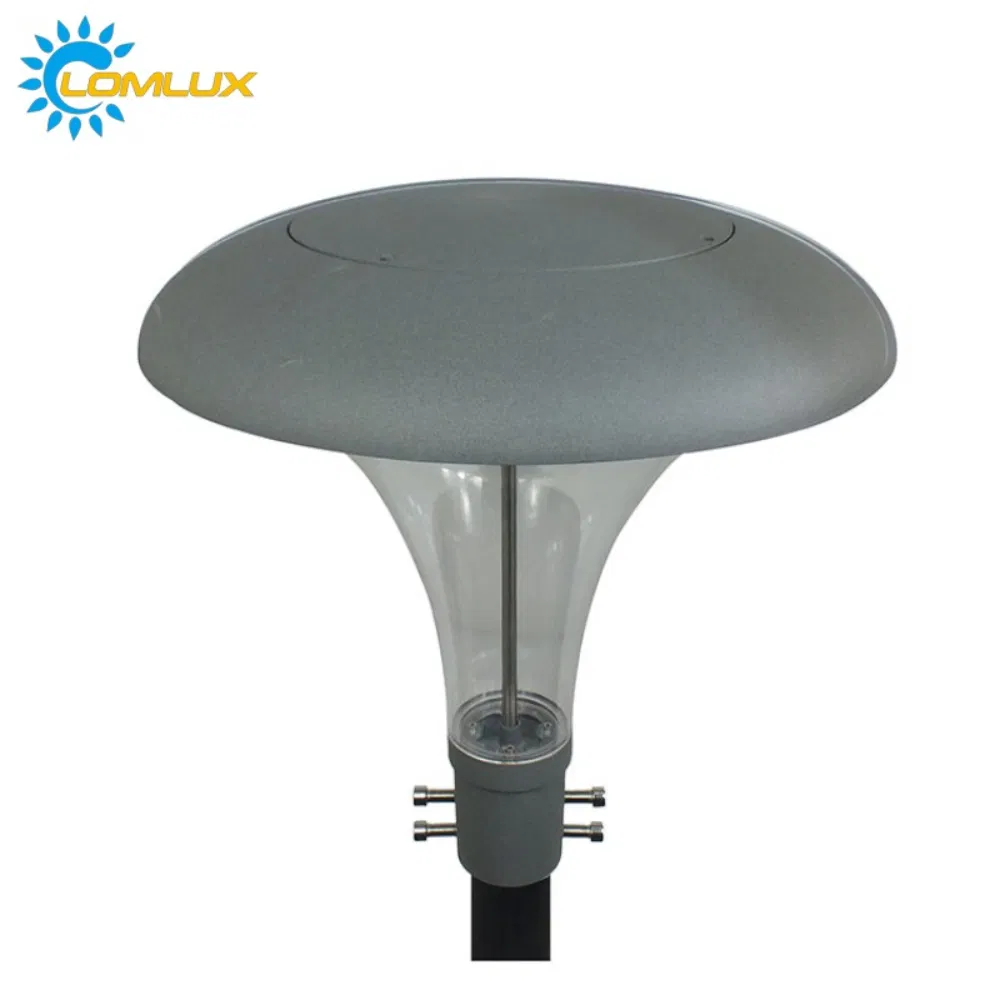

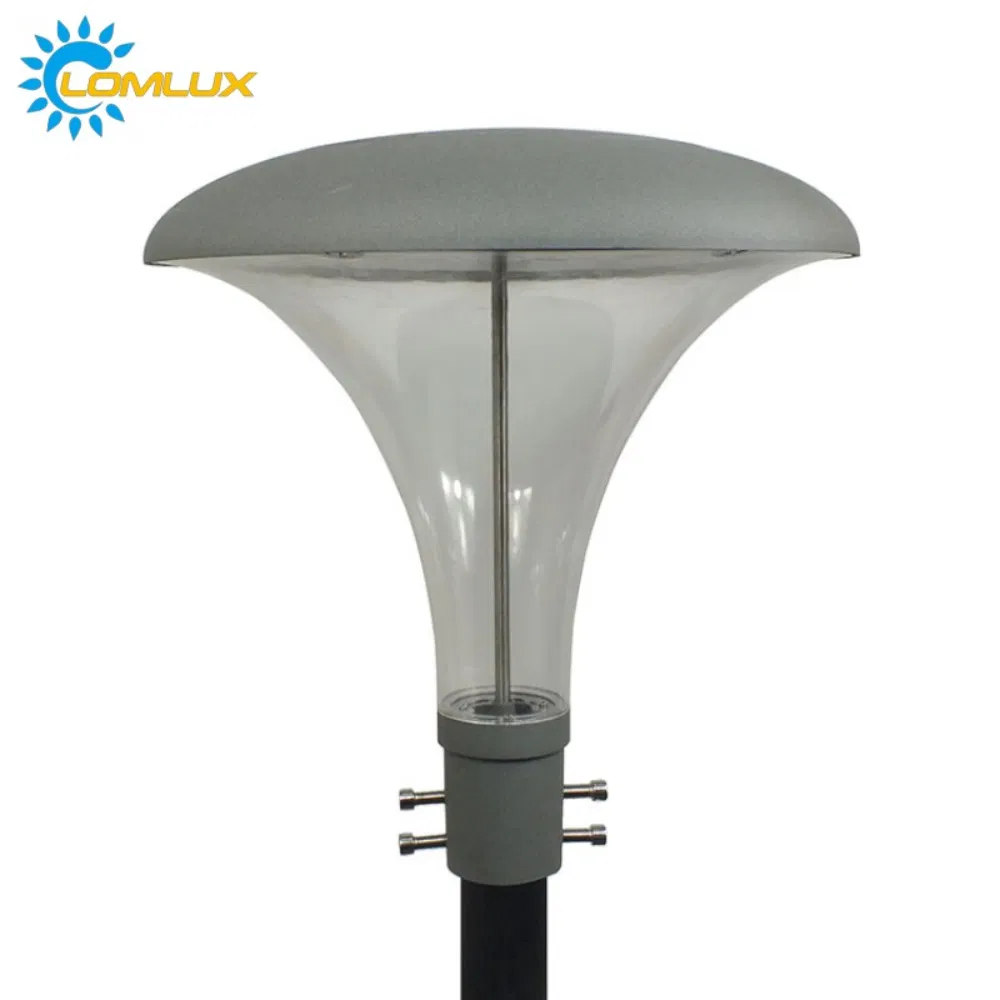

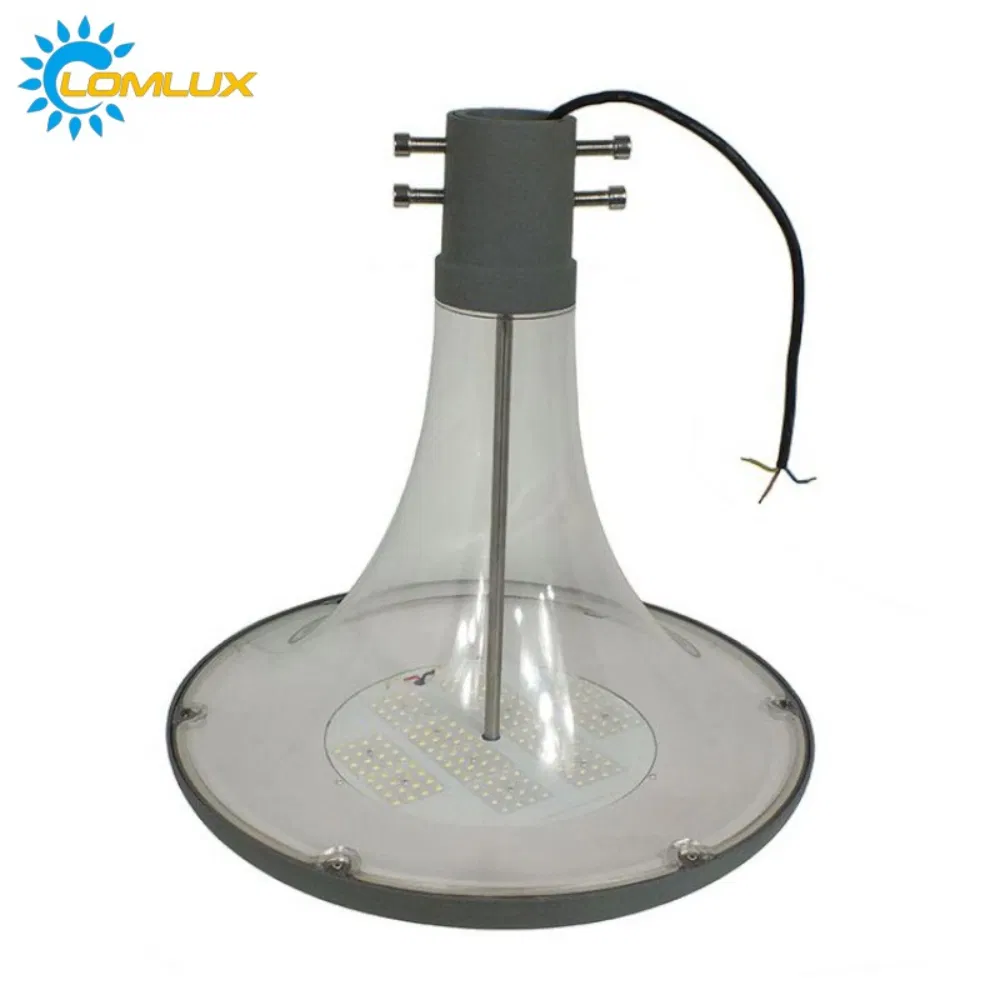

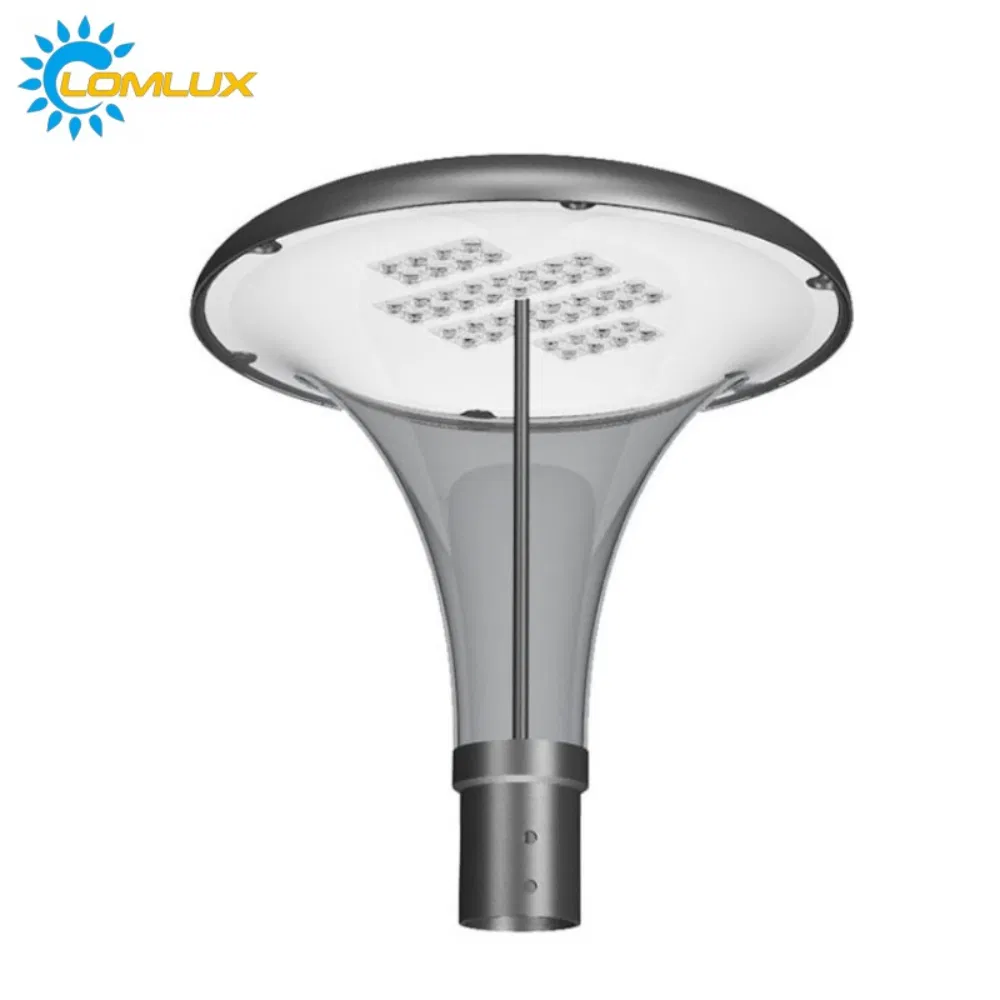

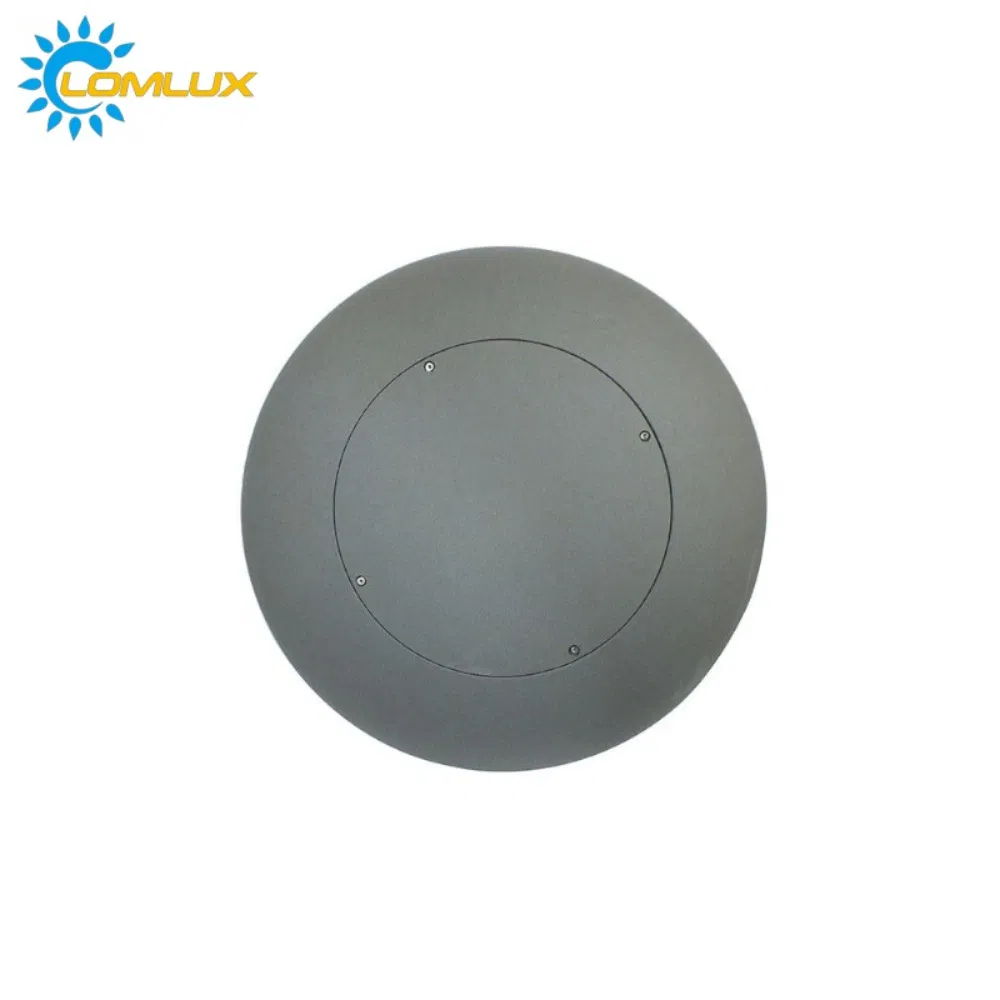

130lm/W LED Streetlight Post Top LED Urban Light Garden Light

1 / 5

130lm/W LED Streetlight Post Top LED Urban Light Garden Light

Still deciding? Get samples of $ !

Order Sample

Send Inquiry

Product Description

Basic Information

Model NO.

LM-GSL16

Material

Die-Casting Aluminum

Lighting Area

>30m^2

Power Range

20-120W

Warranty

5-7 Years

IP Rating

IP66

Certification

CE, EMC, LVD, RoHS, SAA, ENEC+

Voltage

85-265V

Beam Angle

150*75°

Lifespan

50,000 Hours

Package Size

56.50cm * 56.50cm * 62.00cm

Gross Weight

9.200kg

Product Description

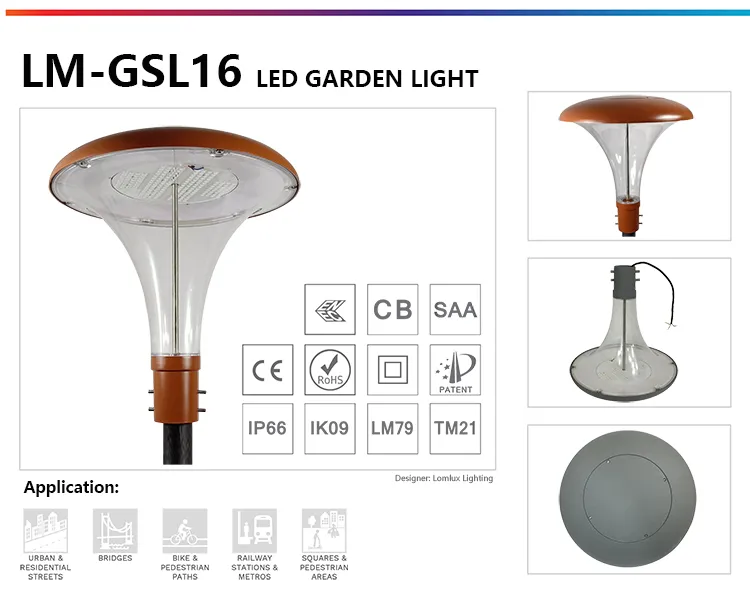

Main Advantages of the LED Luminaire LM-GSL16

Superior Durability: Die-cast aluminum body ensures effective heat dissipation and high resistance to mechanical damage.
Anti-Corrosion Coating: Power-coated body with a self-cleaning coating (Standard RAL9007) for ideal protection.
Energy Efficiency: High efficiency up to 150lm/W, reducing electricity costs by over 50%.
Smart Control Ready: Supports 3/5/7Pin NEMA for Photocell, 1-10V, PWM, DALI, and smart city integration.
Professional Optics: Wide range of lenses available to suit various road classes and outdoor applications.
Built-in Protection: Integrated over-voltage protection (10KV/20KV SPD) for long-term reliability.

Model	LM-GSL16
Dimensions	D510*H550mm
Power	20-120W
Luminous Flux	125-145lm/W
LED Source	3030SMD, 5050SMD, CREE Options
Holder	Standard 76mm (Supports 60mm with adapter)
Color Temperature	3000K, 4000K, 5000K, 5700K, 6500K
Driver Brand	Meanwell, Philips, Sosen, Inventronics
Impact Protection	IK09

Key Features & Components

High Efficacy LED Source

Equipped with premium luminous sources providing long-lasting stability. The efficiency of 5050 chips can reach more than 175 lm/w.

High-End LED Driver

Uses Meanwell or Sosen programmable drivers with 4KV/6KV surge protection for optimal stability and lifespan.

Variety Light Distribution

Optional North American IESNA standard lenses (Type I, II, III) to achieve the best lighting effects for different applications.

Smart Control Systems

Total solution for intelligent street lighting via GPRS/ZIGBEE/PLC/ROLA wireless or cable networks.

Related Main Products

LM-SL18

LM-GSL68

LM-GSL01A

LM-FL59

LM-GSL09A

LM-SL27

Frequently Asked Questions (FAQ)

What is the warranty period for this LED garden light?

The LM-GSL16 comes with a standard 5 to 7-year warranty covering both the luminaire and post-warranty service options.

Is the lamp waterproof and durable for outdoor use?

Yes, it features an IP66 rating for high-level water and dust protection and an IK09 rating for impact resistance.

Does this light support smart city integration?

Absolutely. It supports 3/5/7Pin NEMA sockets for photocells and is compatible with DALI, 1-10V, and PWM dimming systems.

What is the efficiency of the LED chips used?

The luminaire offers a high efficacy of 125-145 lm/W, with specific 5050 chip configurations reaching over 175 lm/w.

Can I customize the light distribution?

Yes, we provide various optic lens options (Type I, II, III, IV, V) to meet different lighting requirements and road classes.

What material is the body made of?

The body is made of high-quality die-casting aluminum with a powder-coated, self-cleaning finish for maximum heat dissipation and corrosion protection.
