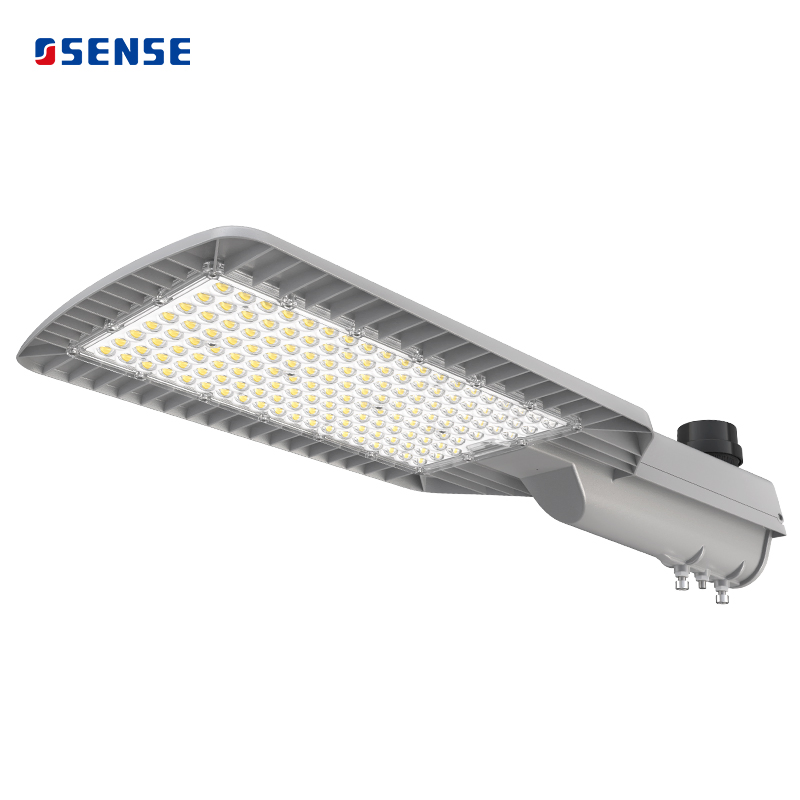

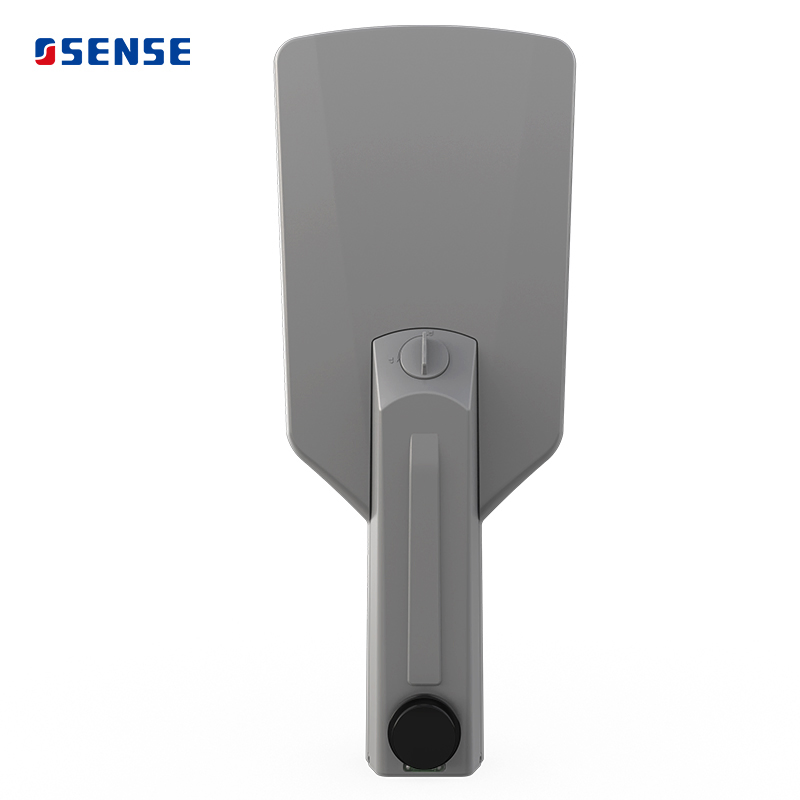

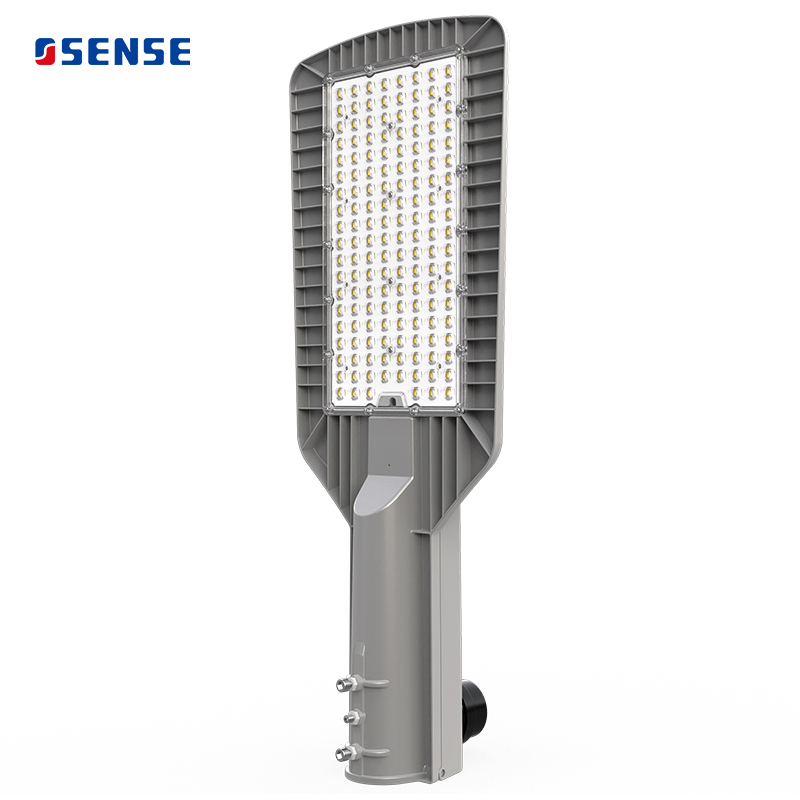

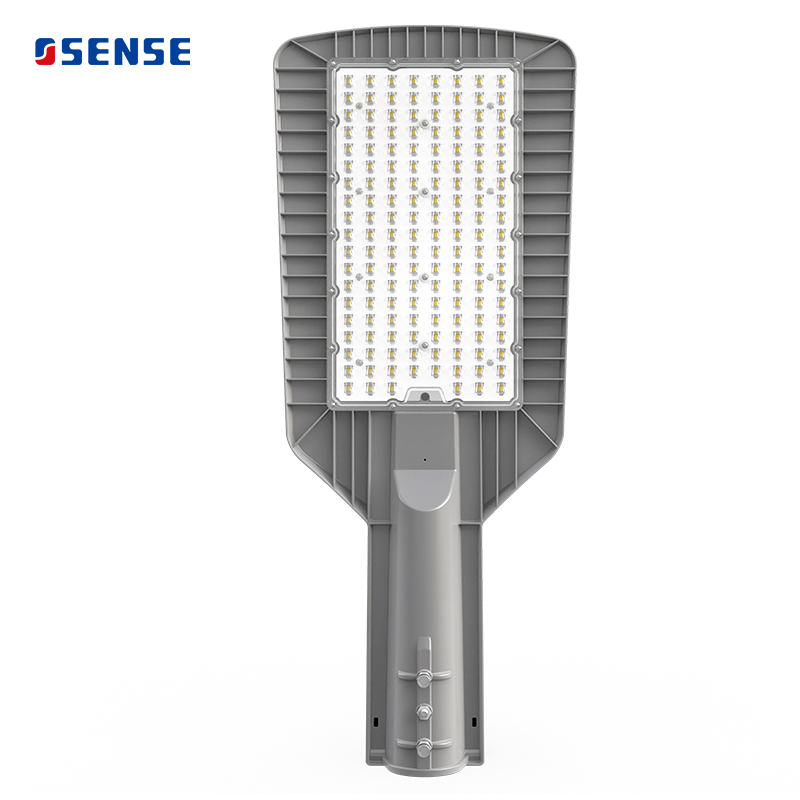

Manufacturer Supplier Factory ODM OEM 20-120W Power Saving IP66 Light Waterproof Solar Post Top Garden Light Housing LED Street Light

Still deciding? Get samples of $ !
Request Sample

Product Description

Basic Info

Model NO.
SWL-BY200W
Lamp Body Material
Aluminum
Power
60W
IP Rating
IP66
Input Voltage
100-277V
LED Chips Brand
CREE/OS RAM/Nichia/Lumileds/Bridgelux
Operating Temp
-30℃/+45℃
Driver Brand
Moso/Sosen/Meanwell/Inventronics
Warranty
3/5/7/10 Years
Certification
CB, CCC, CE, EMC, Energy Star, LVD, REACH, RoHS, SAA, VDE

Product Description

Paten private mold, integrated Die-casting.
High-efficiency coating, paint, and metal parts can pass 500 hours salt spray test.

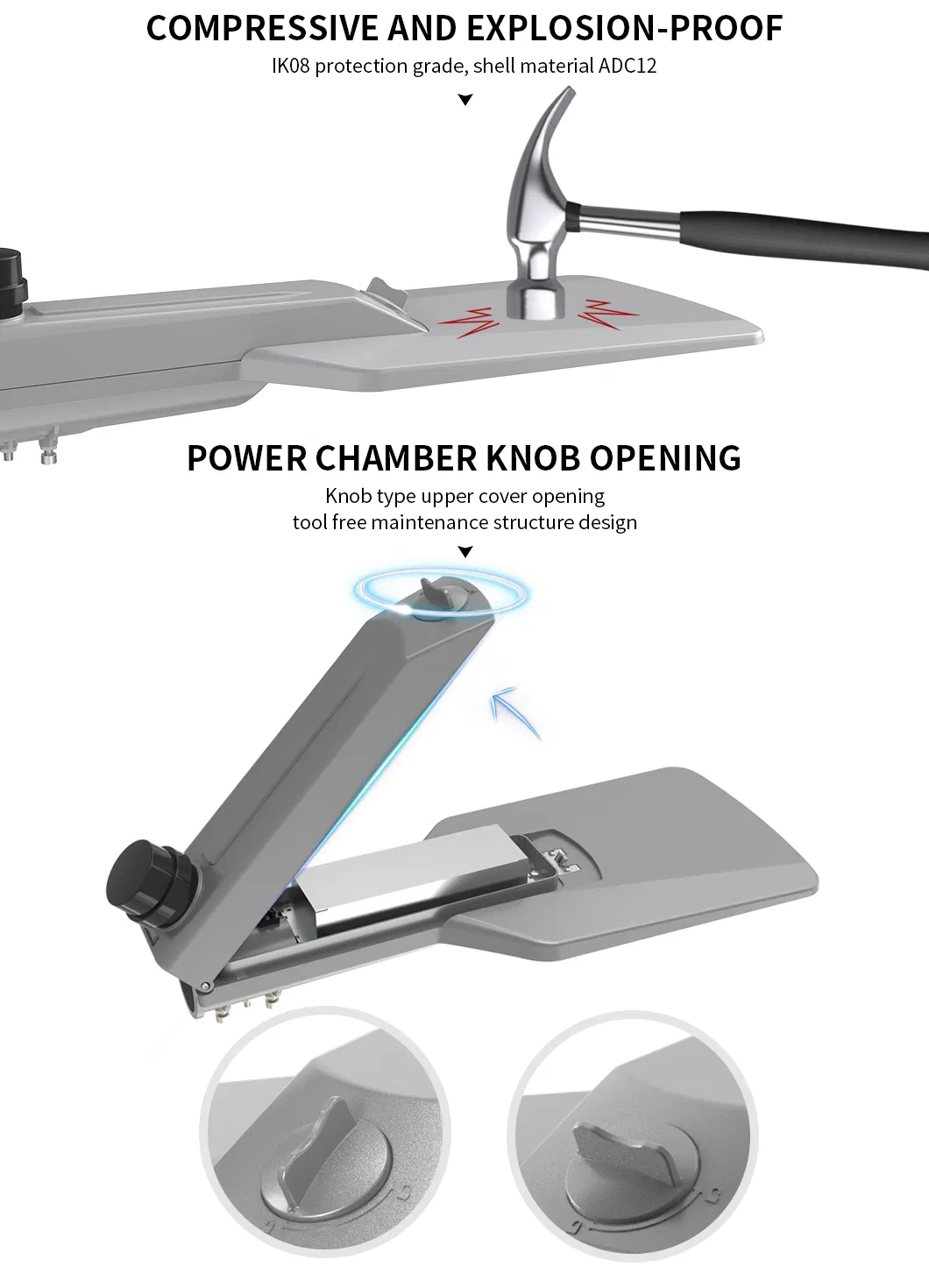

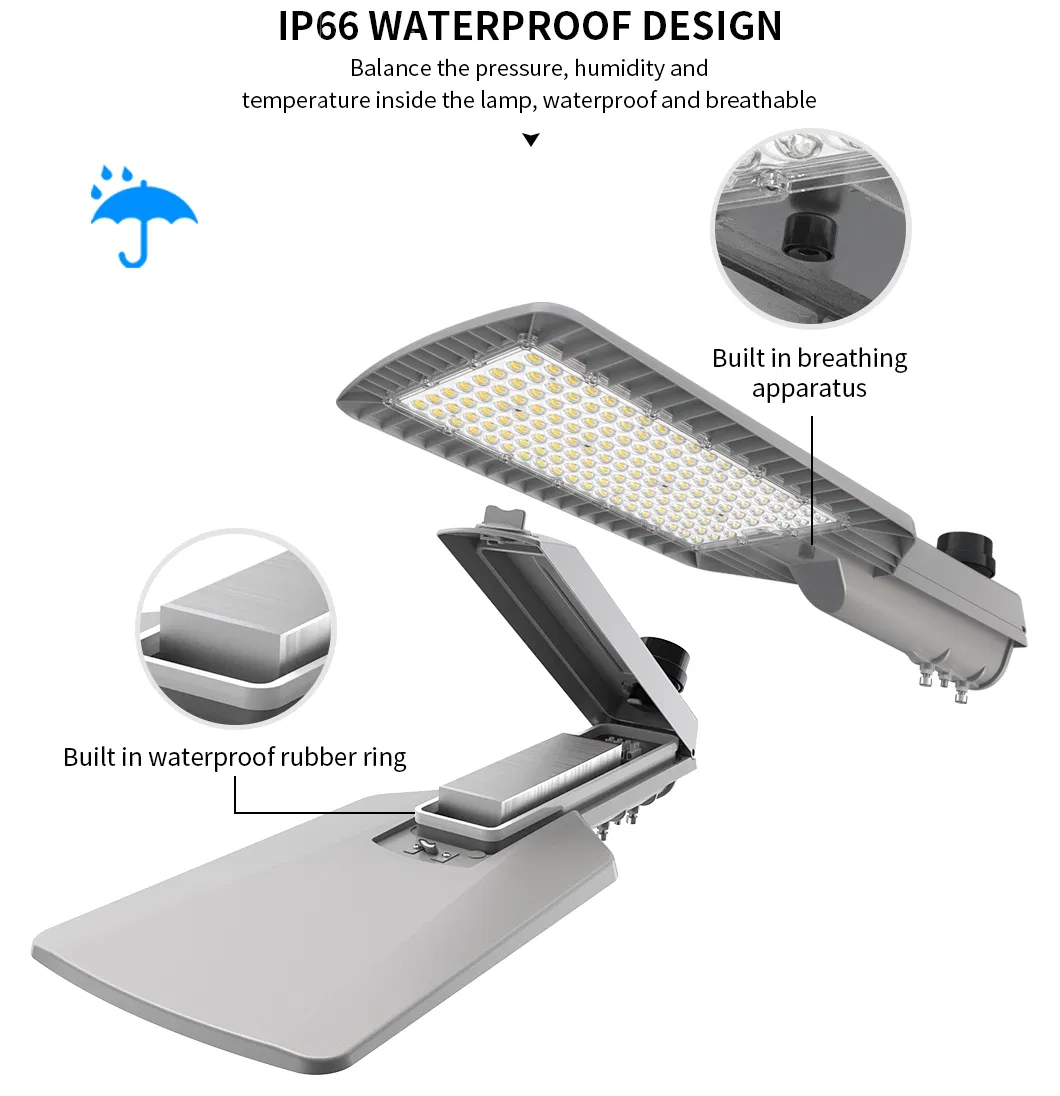

Power cavity opening method: Tool-free open; Easy installation and maintenance.
Detachable design and fast turn-off power protector render this luminaire convenient and safe for maintenance.
High efficiency up to 170lm/w optional; Cost-effective and efficient lighting solution.

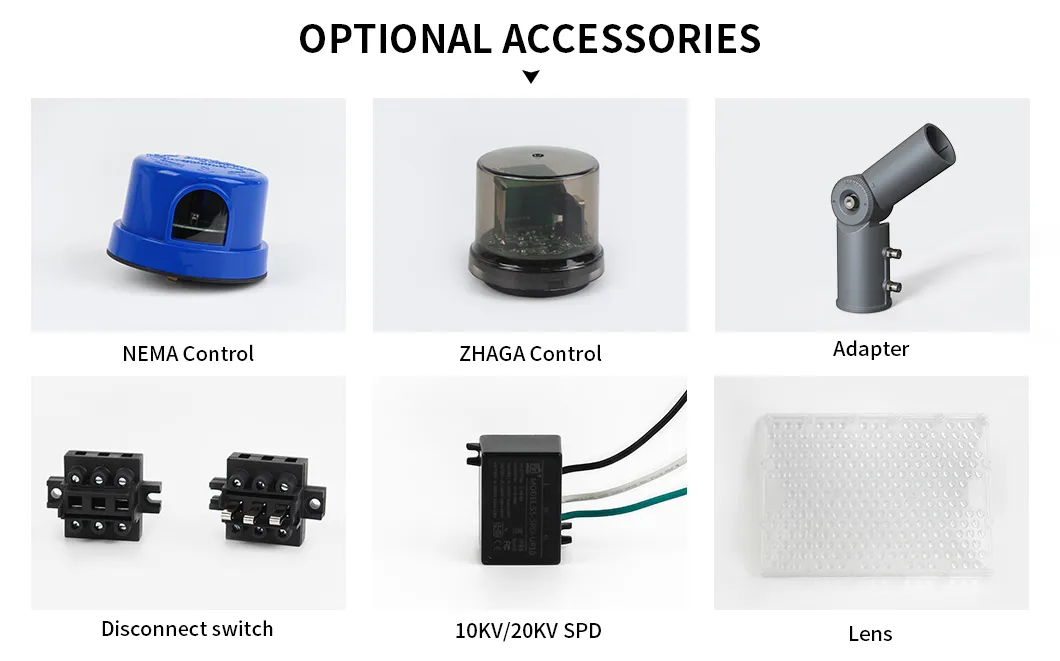

Equipped with PMW and Dimming interfaces, DALI, 0-10V / 1-10V control system available.
Long life span of over 50,000 Hours.
GENERAL INFORMATION ELECTRICAL INFORMATION

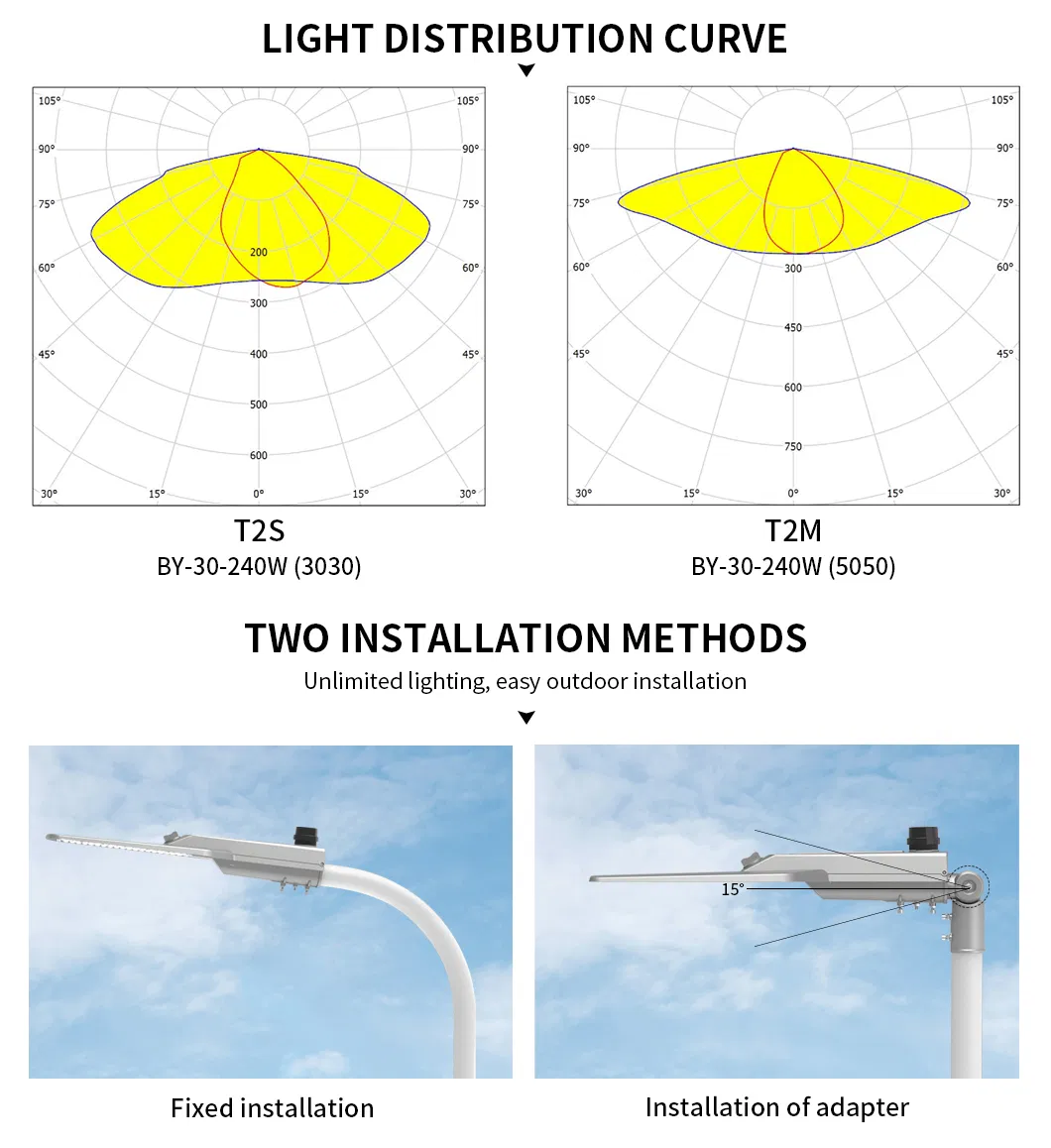

Mounting Module Post top or side entry 42-60Φ / 76-80Φ Electrical Class Class I
Tilt Angles 0, ±5, ±10, ±15 Nominal Voltage 100v-277vac 50/60Hz
LED Brand CREE; OS RAM; Nichia; Lumileds Surge Protection 10kV / 20kV (Optional)

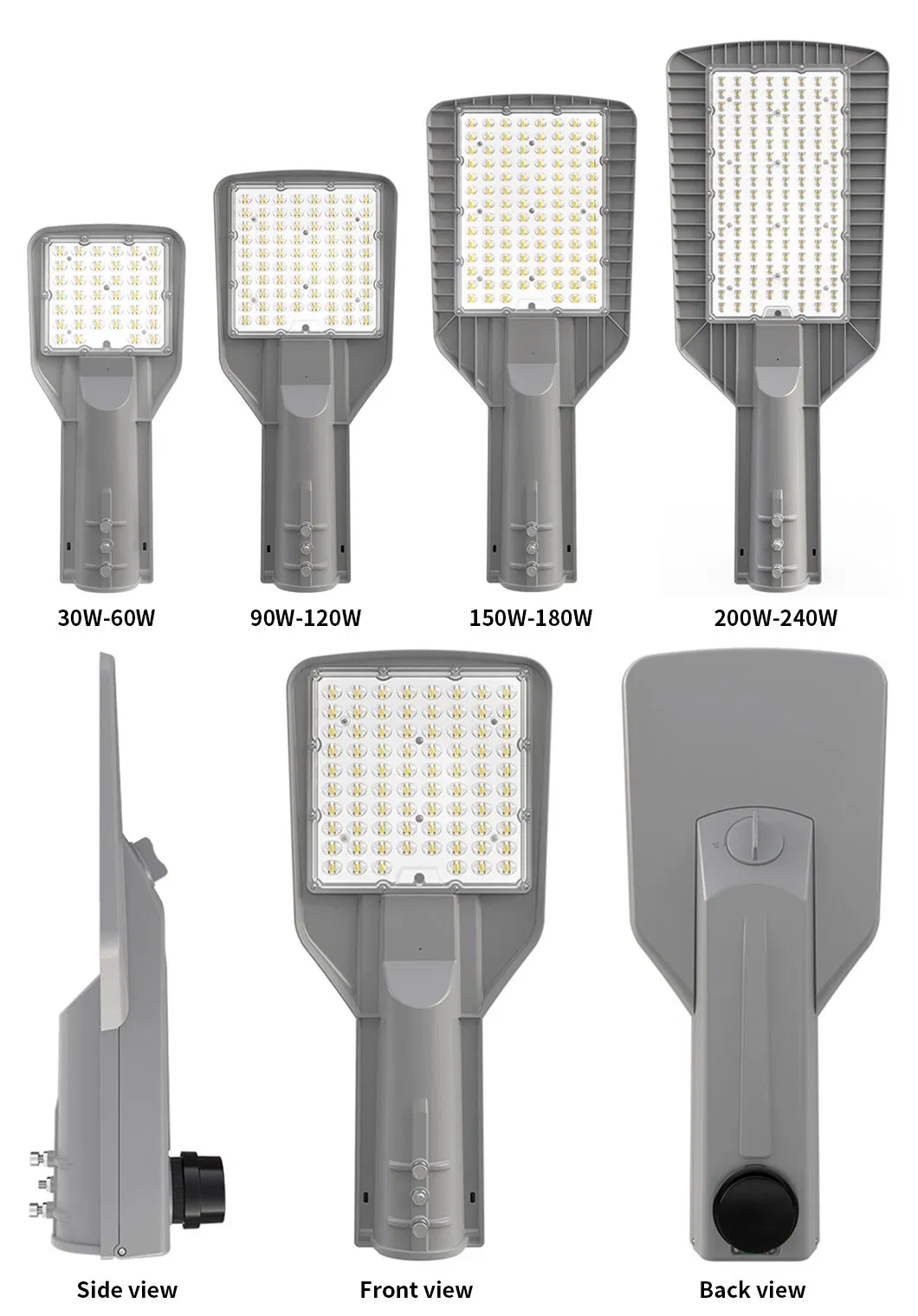

Product Configuration Scheme

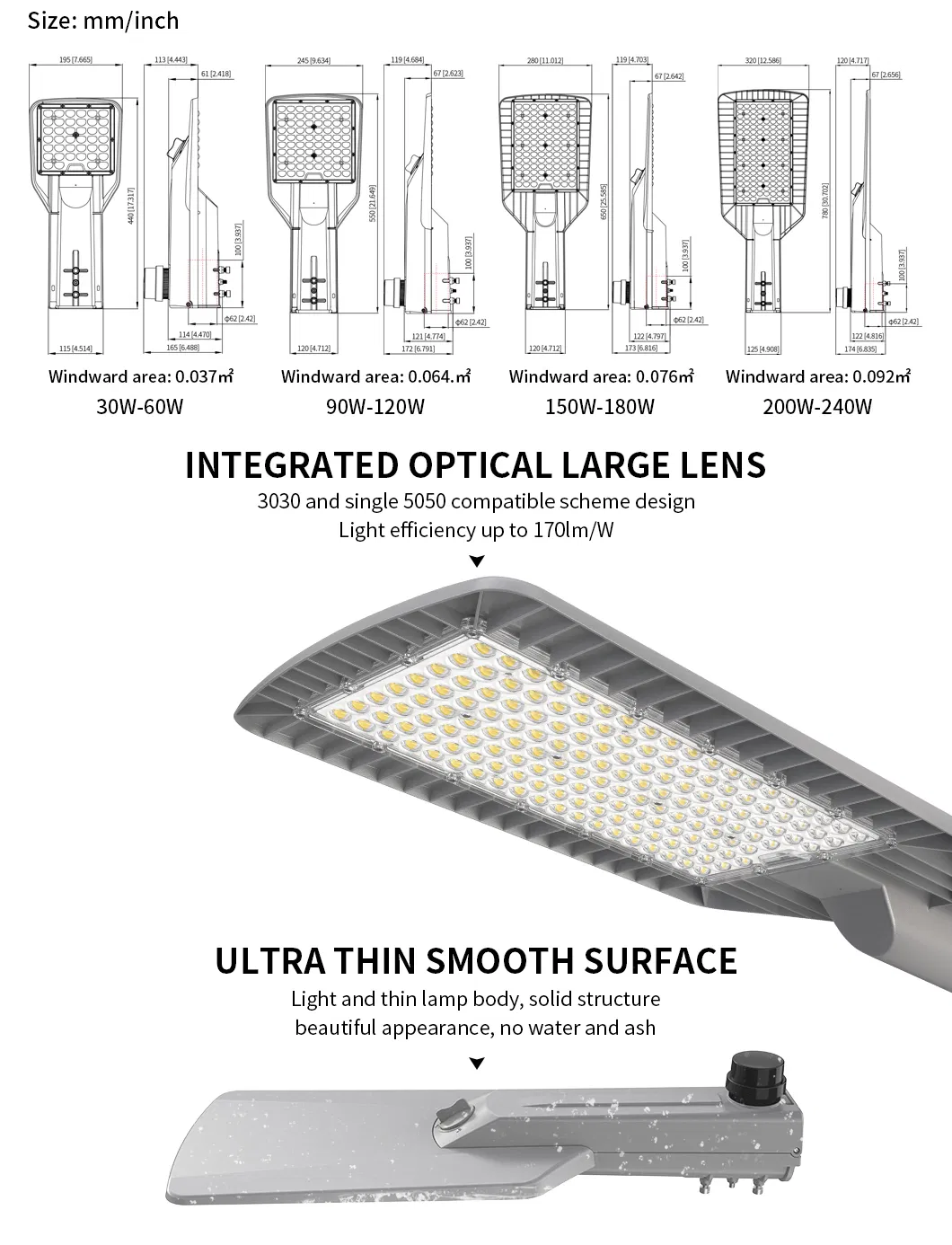

Model No. Power Luminous Efficiency Luminous Flux Product Dimension(mm) N.W(kg)
SWL-BY30W 30W 135-150lm/w 4050-4500lm L440*W195*H169 2.9
SWL-BY60W 60W 135-150lm/w 8100-9000lm L440*W195*H169 2.9
SWL-BY100W 100W 135-150lm/w 13500-15000lm L550*W245*H172 4.2
SWL-BY150W 150W 135-150lm/w 20250-22500lm L650*W280*H173 5.3
SWL-BY200W 200W 135-150lm/w 27000lm L780*W320*H174 6.6

Product Details

Frequently Asked Questions

Are you a manufacturer?
Yes, we have our own factory with over 20 years of R&D and manufacturing experience based on ISO quality management since 2003.
What Certification do you have?
TUV/CB/CE/EMC/SAA/CCC/RoHS approved. And with IP65/IP66/IP67/IK08/IK09/IK10/EMF/LM79/LM80/TM21/WF2/IES reports available.
Can I have our LOGO on the products and packages?
Yes. We provide OEM service to our customers to customize branding on products and packaging.
What is the warranty of your products?
We offer 5-7 years warranty depending on the specific application requests and project requirements.
What about the lead time for orders?
Generally 3-7 days for samples and 10-20 days for mass production based on order quantities.
How do you deal with faulty products?
Our products are produced under strict quality control (defective rate < 0.1%). Within the warranty period, we provide new lights or components for replacement based on the actual situation.
