Product Description

📋

Basic Information

Model NO.

Feature

Anti-corrosion, Dust-Proof, Waterproof

Light Body Material

Plastic

IP Rating

IP65

IK Rating

IK08

Input Voltage

AC220-240V

CRI

>80

>0.9

Specification

60cm, 120cm, 150cm

Origin

China

Production Capacity

10,000PCS Per Day

⚙️

Technical Specifications

Parameter	Details	Parameter	Details
Model:	FM-1112	LED Driver:	Osram/Tridonic Optional
Power:	20W, 40W, 60W	Input Voltage:	100/220-240Vac~ 50/60Hz
CCT:	3000K-6500K, or 3CCT selectable	P.F.:	>0.95 Flicker Free
Lumen Efficiency:	>150lm/W	Function:	On/Off, 0/1-10V, DALI, Emergency, Motion Sensor
CRI:	>80Ra	Warranty:	5 Years

🏭

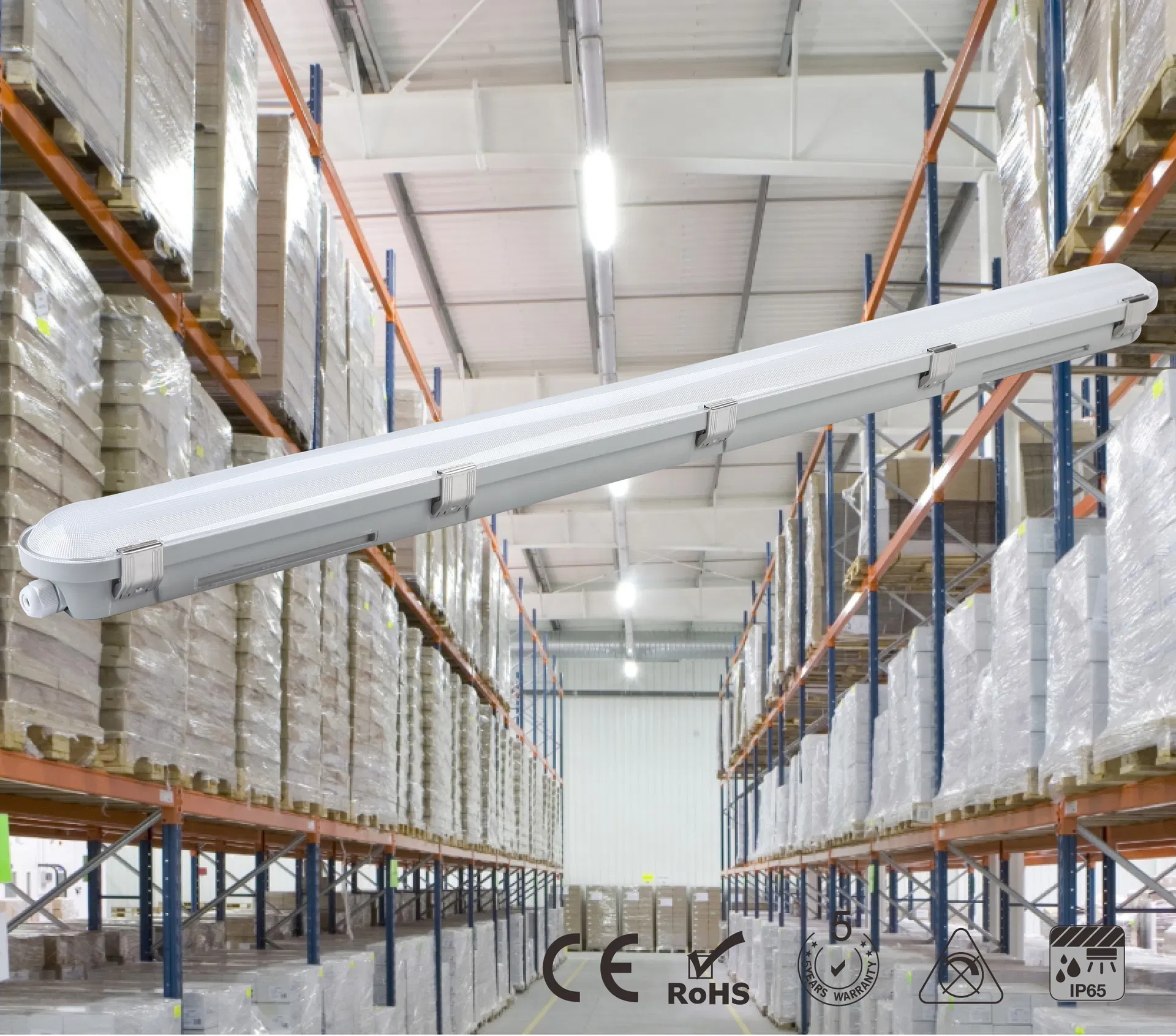

Applications

Perfect for harsh environments where dust, dirt, humidity, and moisture are present. Ideal for:

Industrial Kitchens
Car Washes
Car Parks
Warehouses & Barns
Auto Shops
Walk-in Freezers
Gas Stations
Airports
Garages & Basements

💡

Product Features

LED Chips:
* SMD2835, 0.5W/led;
* Aluminum led PCB;
* >150lm/W Efficiency;
* 3000K/4000K/6000K; CRI>80

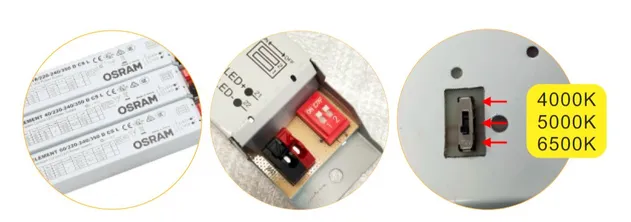

LED Driver:
* Osram/Tridonic/Philips optional;
* 4 types of powers switchable;
* CCT switchable options.

Protection:
* V0 Fire rating;
* Anti-Corrosion level F2;
* Glow wire test 850°C.

Polycarbonate Diffuser:
Robust, no breaks, no shape changes.

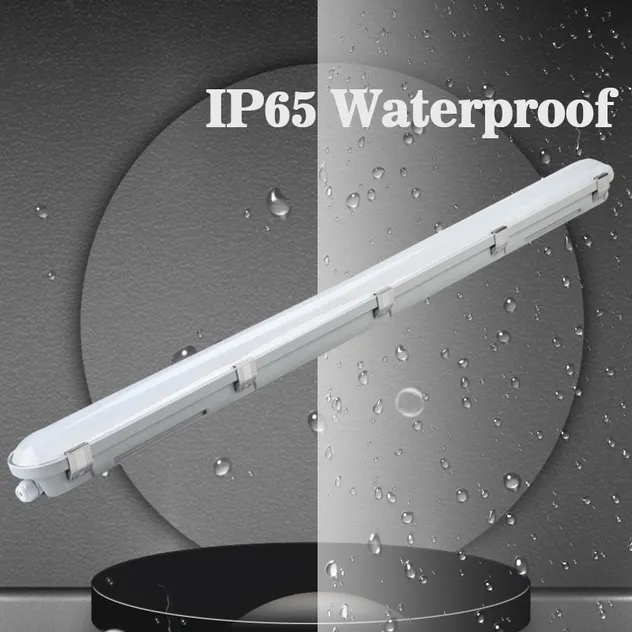

Waterproof IP65:
Complete protection against dust and water jets.

Impact IK08:
High-strength Polycarbonate Housing.

Clips:
Stainless steel or Plastic clips optional.

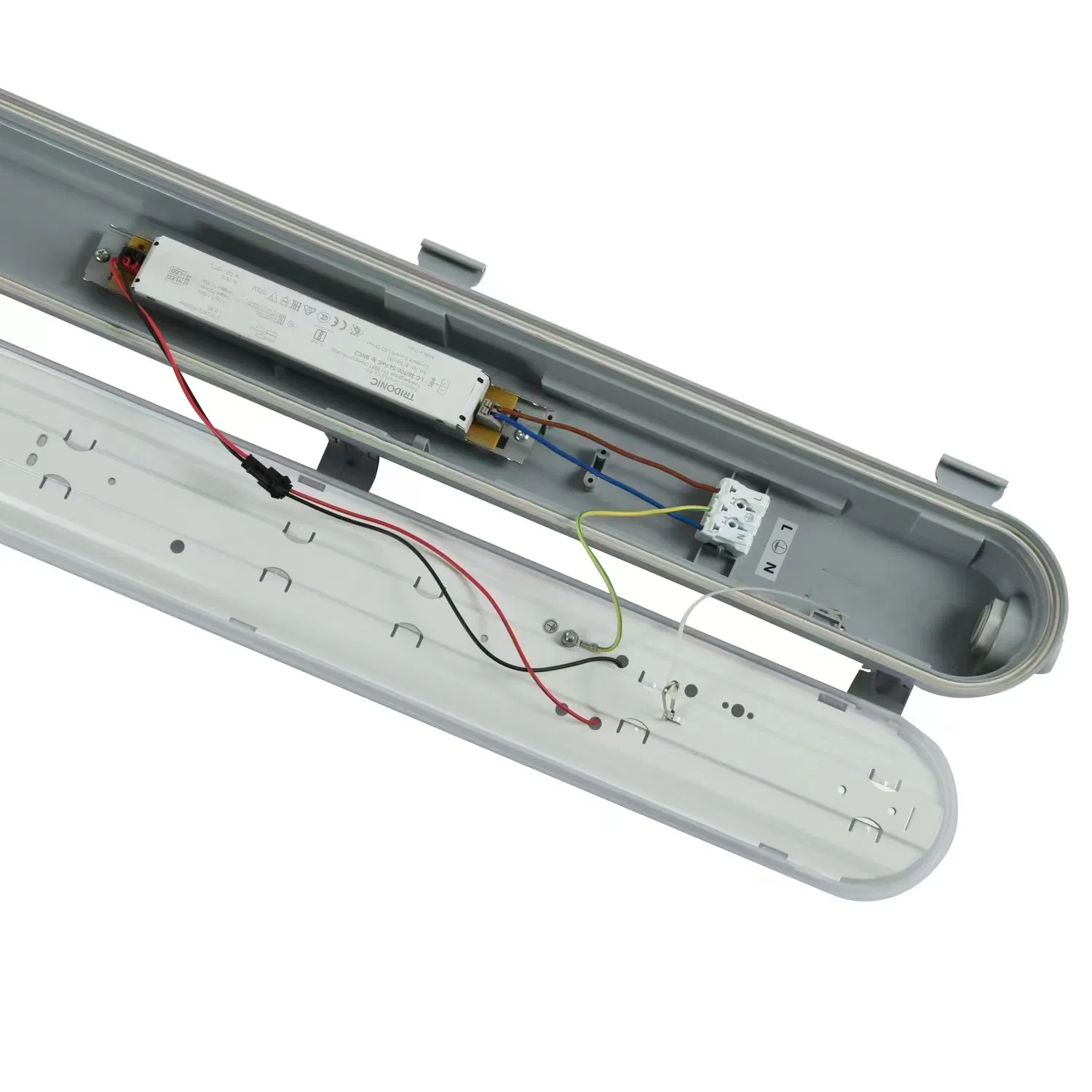

Fast Connection:
Wiring without opening the metal tray.

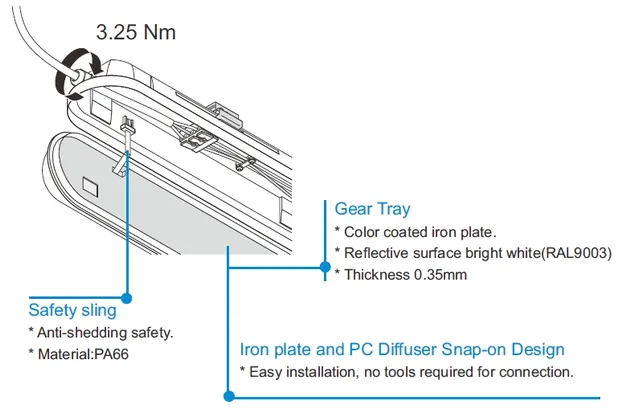

Safety Sling:
Diffuser secured during maintenance.

📏

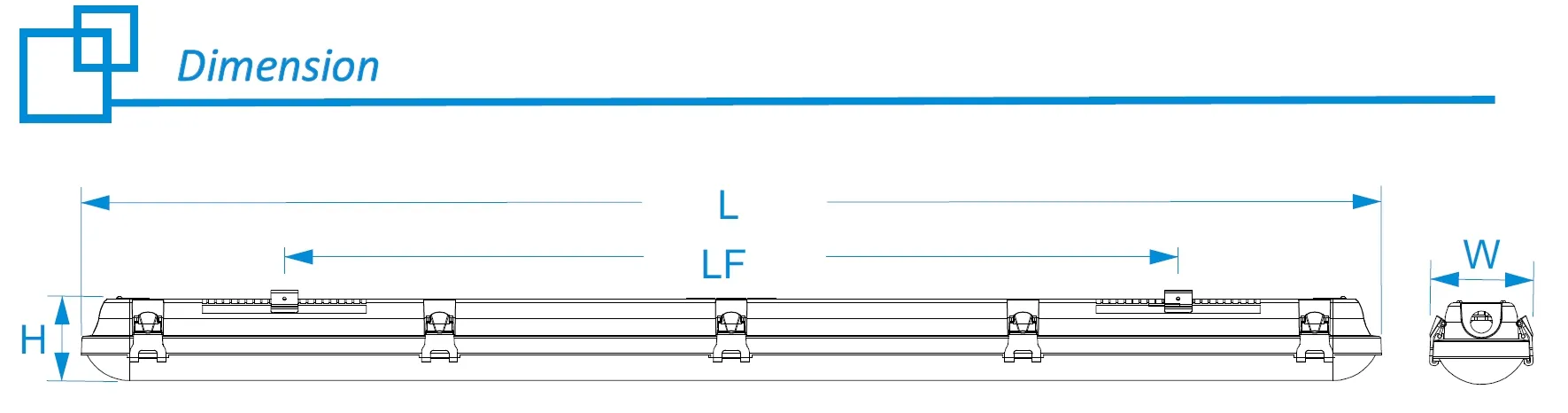

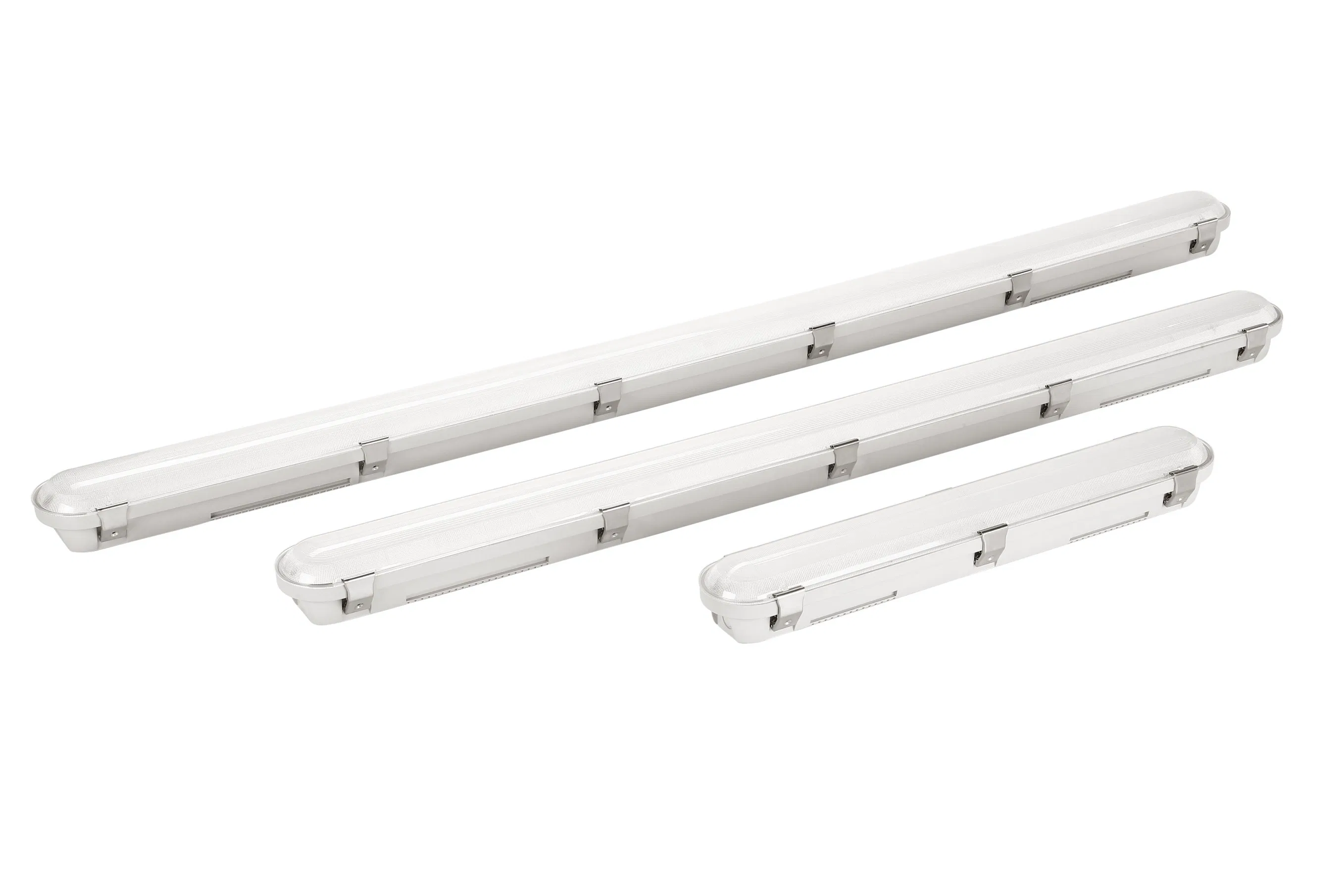

Product Size & Packaging

Size	L(mm)	LF(mm)	W(mm)	H(mm)
2FT	590	300	95	75
4FT	1190	818	95	75
5FT	1490	1018	75	75

Standard Packing Data:

Model	Box Size (mm)	Qty/CTN	CTN DIM (cm)	G.W. (kgs)
FM-1106	600x103x83	6	62x33x18.6	6.6
FM-1112	1200x103x83	6	122x33x18.6	11
FM-1115	1500x103x83	6	152x33x18.6	13.92

🛠️

Installation Guide

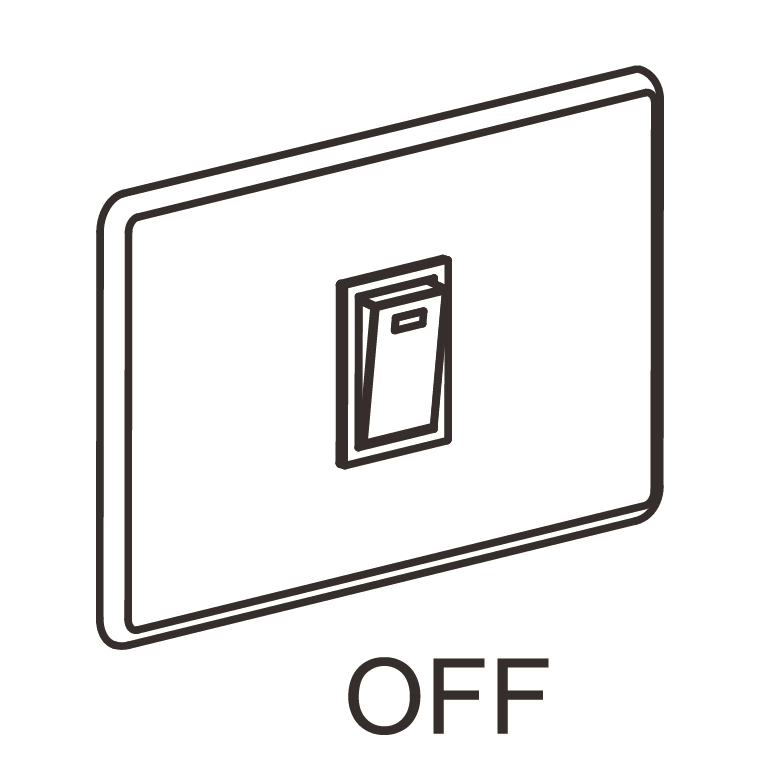

Keep power switches turned off.

Drill 6 mm holes according to cutting size instructed.

Model	X (mm)	Y (mm)
2FT	40±2	300±50
4FT	40±2	818±50
5FT	40±2	1018±50

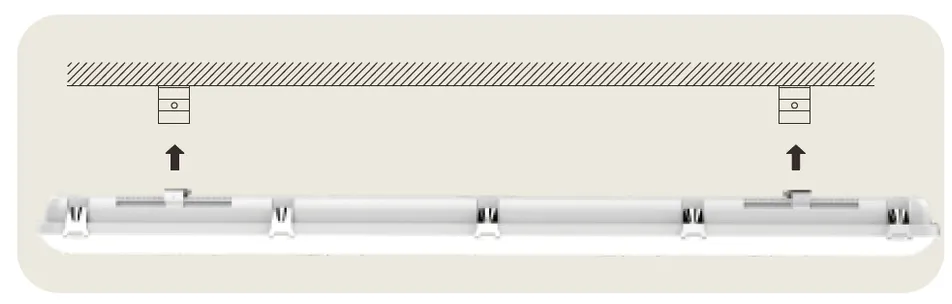

Fix mounting brackets and put the luminaire into brackets properly.

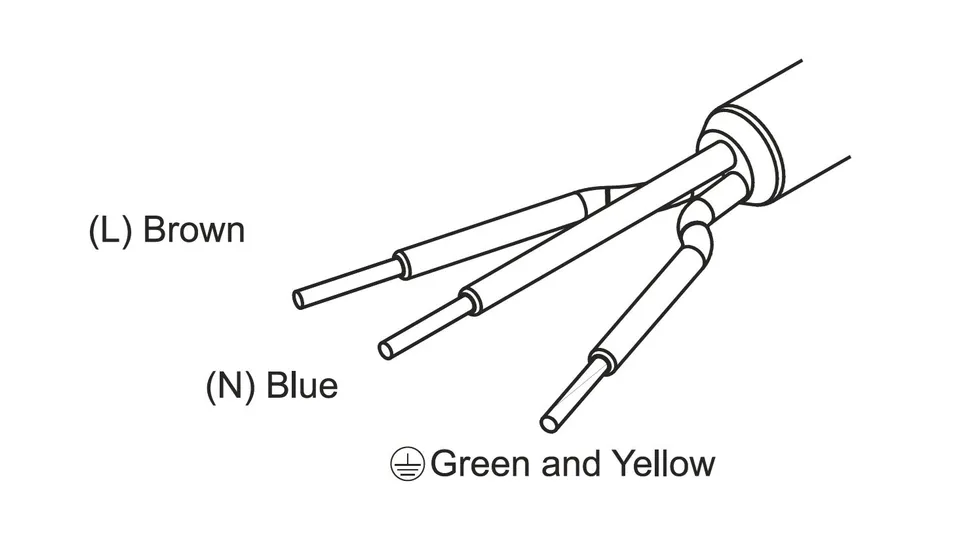

Connect Live(L), Neutral(N), and Grounding correctly.

L: Brown | N: Blue | Grounding: Green & Yellow

⚠️ Special Notes & Warnings

Professional installation required according to local regulations.
Ensure power is off before installation or cleaning.
Do not cover fixtures with flammable materials.
Non-professionals are not allowed to disassemble the lamp.
Clean with a soft cloth and PH neutral detergent only.

Frequently Asked Questions

What does the IP65 and IK08 rating mean for this light?

IP65 ensures the light is completely dust-tight and protected against water jets from any angle. IK08 means it has high resistance to mechanical impacts, thanks to its robust polycarbonate housing.

Can I adjust the power and color temperature of the FM series?

Yes, the FM series offers optional 4-power switchable settings and 3CCT (color temperature) selectable functions to suit different lighting needs.

What is the luminous efficiency of this LED Triproof light?

This product features high-performance LED chips providing an efficiency of over 150 lumens per watt (150lm/W).

Where is this triproof light typically used?

It is widely used in harsh environments such as industrial kitchens, car washes, car parks, warehouses, barns, freezers, and other wet or dusty locations.

Is there a warranty provided for this product?

Yes, we provide a 5-year warranty on this FM series LED Triproof light, covering standard operational conditions.

Does the installation require opening the metal LED tray?

No, it features a fast wiring connection design that allows for electrical connection without opening the metal tray, significantly speeding up the installation process.
