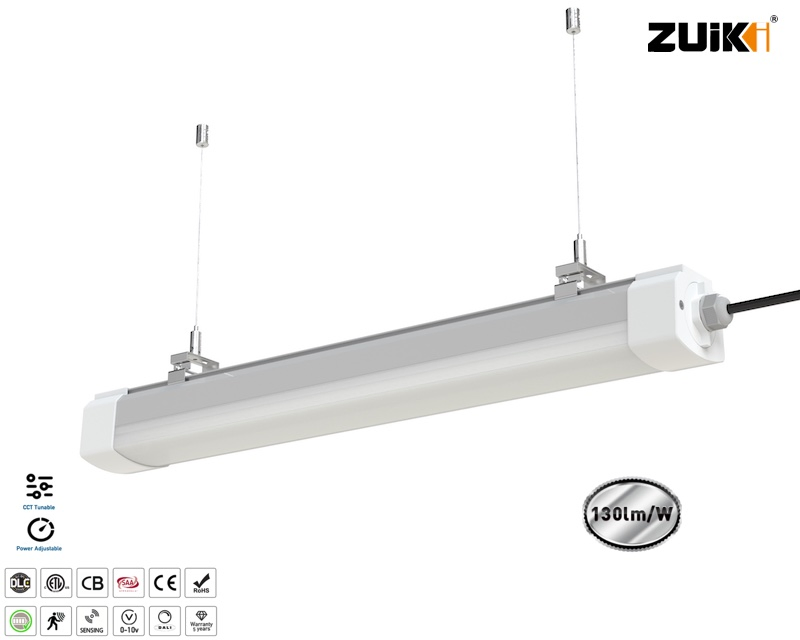

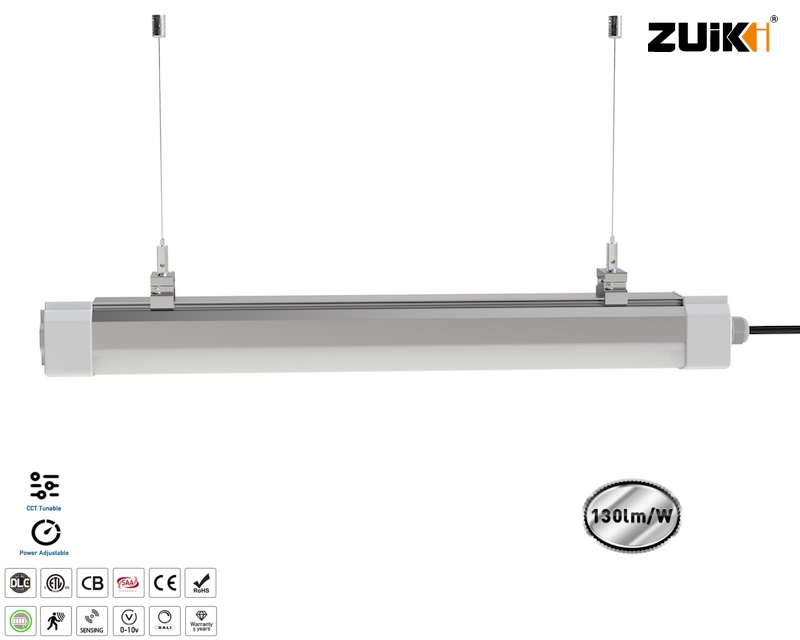

Product Overview
| Model NO. |
JR-SF03 |
| Feature |
Anti-corrosion, Dust-Proof, Waterproof, Anti-UV |
| Light Body Material |
Aluminum Alloy |
| Wattage |
18W/36W/55W |
| Input Voltage |
AC100-277V |
| Color Temperature |
3000K/4000K/5000K, or All in One |
| Lumen Efficiency |
100-150lm/W, Customized |
| CRI |
>83 |
| Length |
2FT/4FT/5FT/8FT Customized |
| IP & IK Rated |
IP67 & IK10 |
| Warranty |
5 Years |

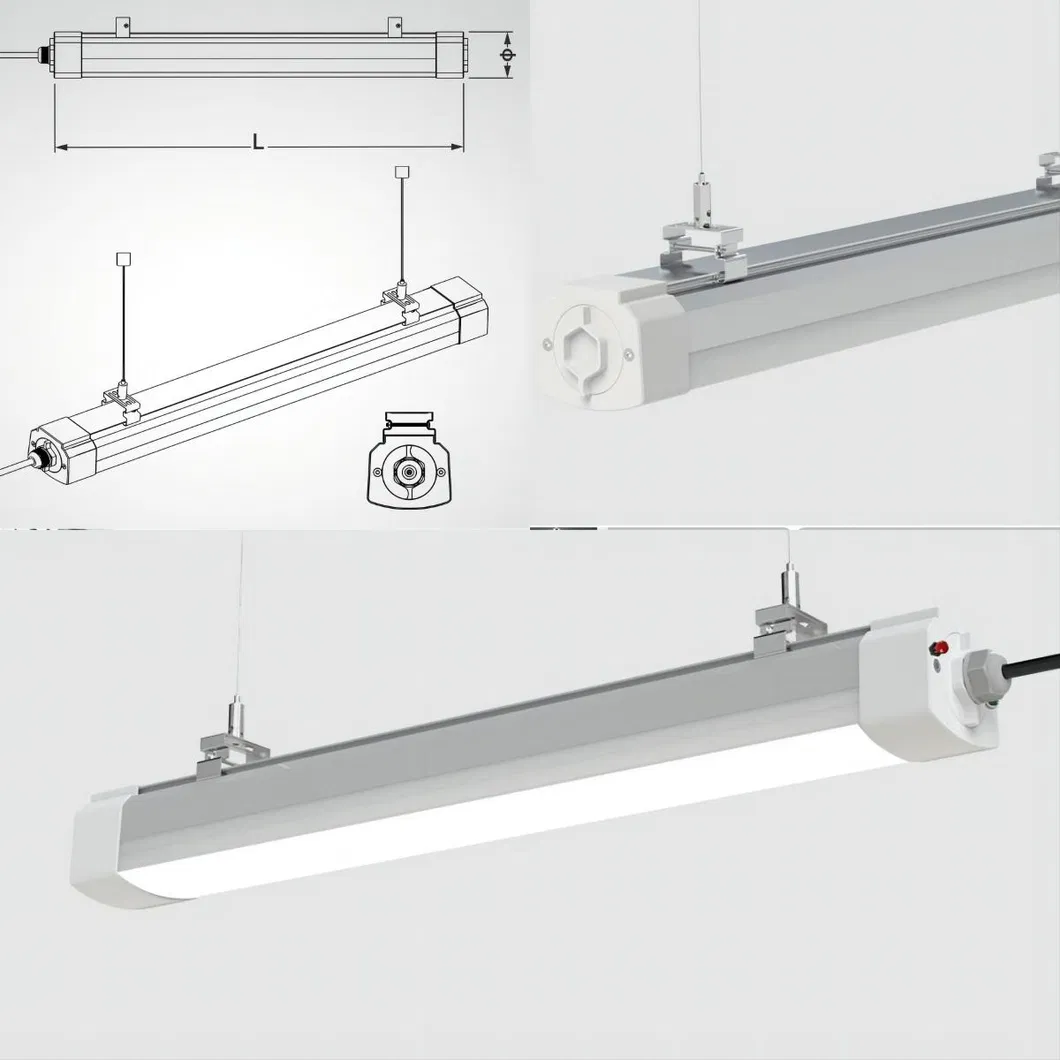

Detailed Specifications
| Item No |
Dimension(cm) |
CCT |
Power |
IP Grade |
IK Grade |
Input Voltage |
Lumen Efficiency |
Material |
Warranty |
| JR-SF03 |
600*77*68 |
2700~6000K |
20W |
IP65 |
IK10 |
AC100-277V |
100~150lm/W |
AL+PC |
3/5 years |
| JR-SF03 |
1200*77*68 |
2700~6000K |
40W |
IP65 |
IK10 |
AC100-277V |
100~150lm/W |
AL+PC |
3/5 years |
| JR-SF03 |
1500*77*68 |
2700~6000K |
50W |
IP65 |
IK10 |
AC100-277V |
100~150lm/W |
AL+PC |
3/5 years |

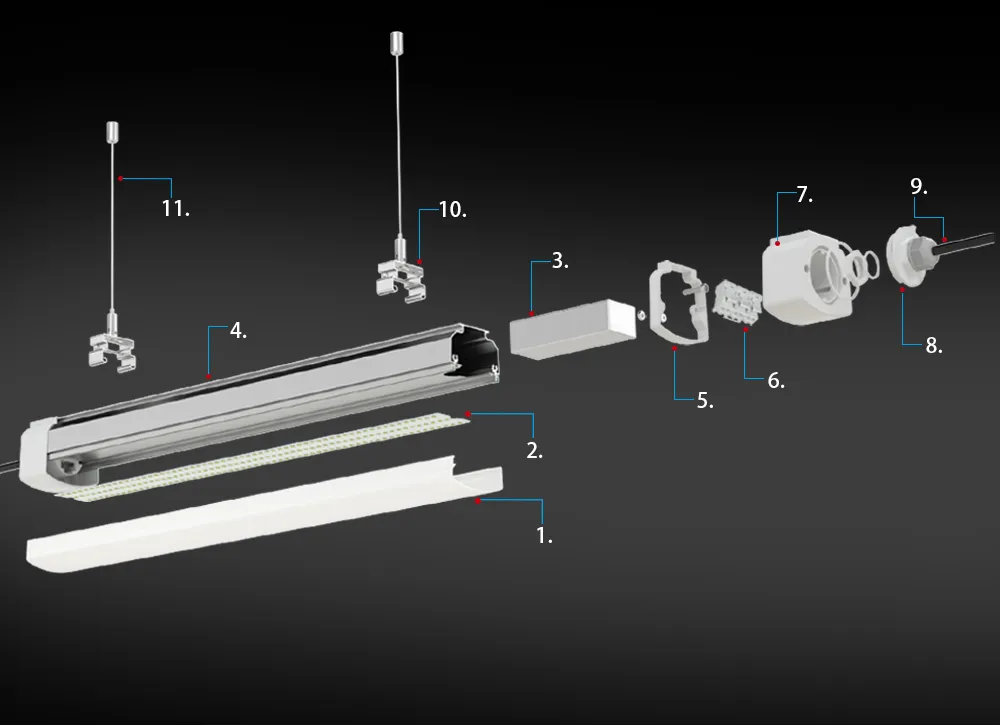

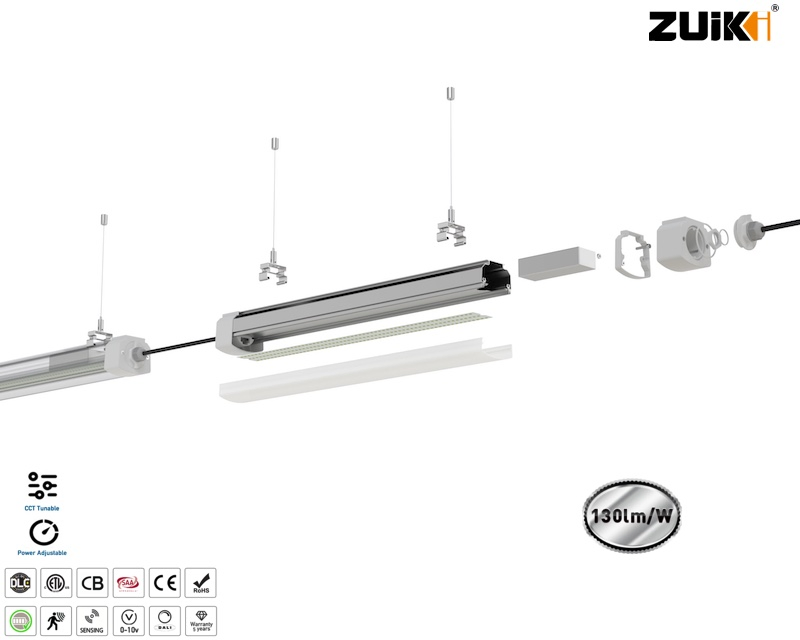

Key Features & Construction
- Fire-proof PC shade, UV proof for outdoor durability.
- High lumen SMD light source on aluminum PCB, up to 100lm/W.
- Famous LED Drivers including Tridonic, Lifud etc.
- 6063 aviation aluminum heat sinker with efficiency up to 209w/m.k.
- Waterproof silica gel sealing and anti-corrosion PC ends.
- Quick connector for easy manual installation without tools.

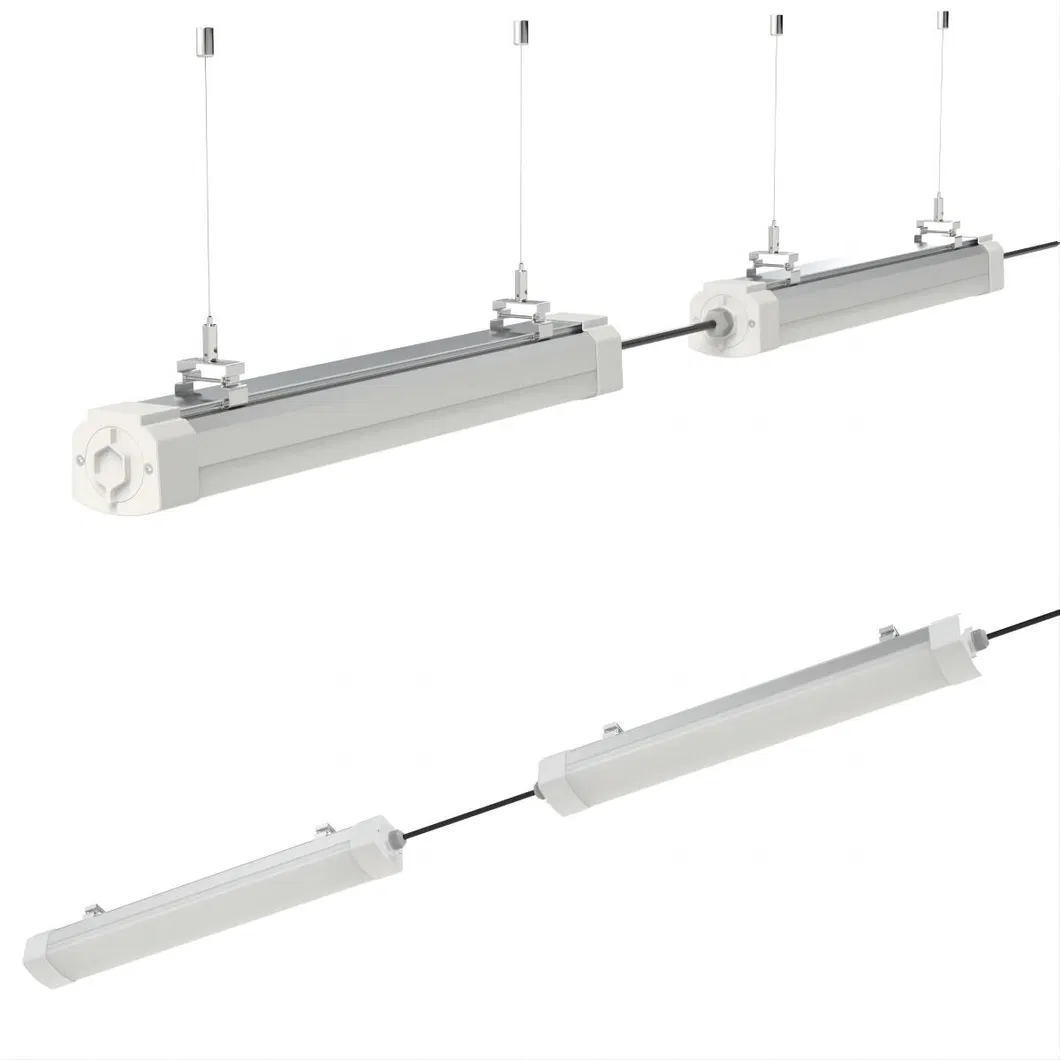

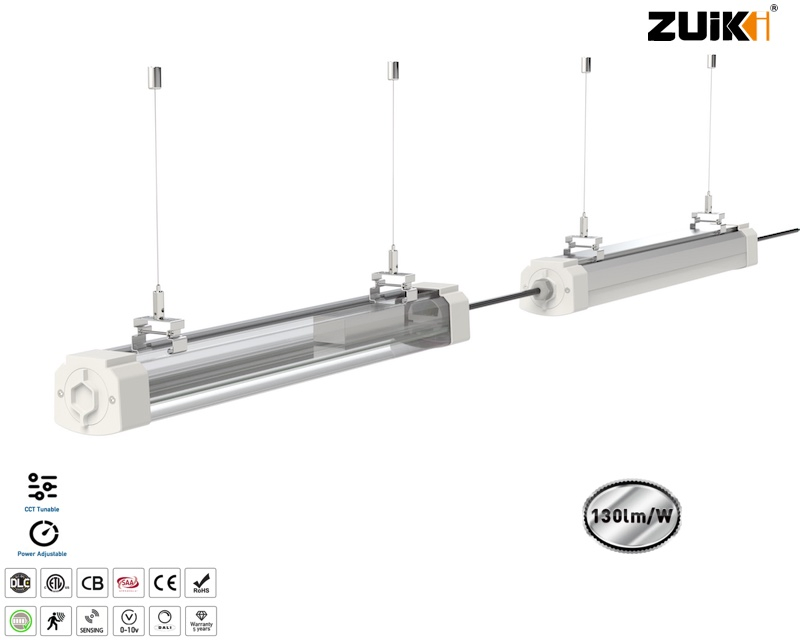

- Stainless steel surface mounting or suspended installation options.
- Emergency backup and Microwave sensor optional.

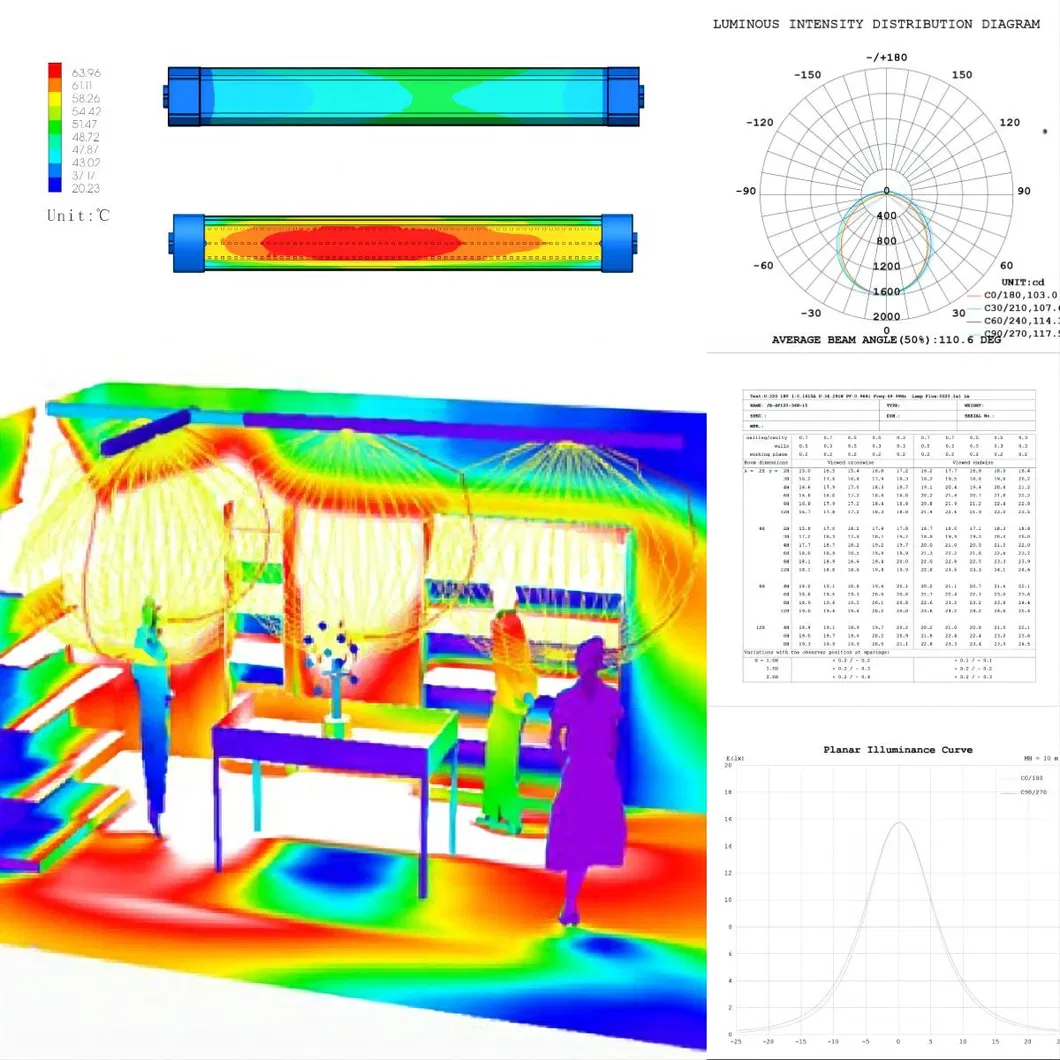

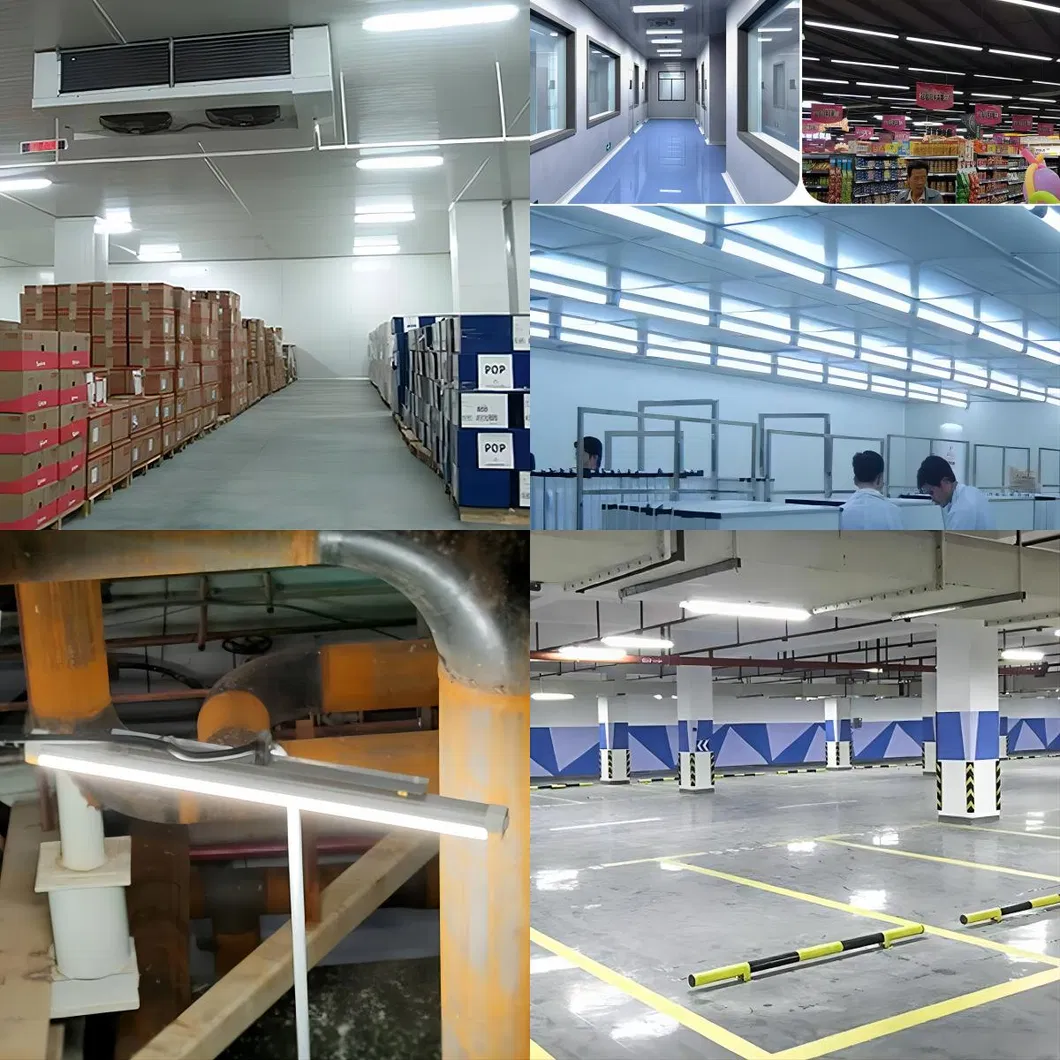

Light Distribution & Application
Frequently Asked Questions
Can I have a sample order for led light?
Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
What about the lead time?
Quick delivery time 3-5 working days for sample order, and 12-20 working days for bulk orders depending on quantities.
Do you have any MOQ limit for led light order?
Low MOQ, 1pc for sample checking is available.
How do you ship the goods and how long does it take to arrive?
We usually ship by sea, or via DHL, UPS, and FedEx. It usually takes 3-5 days to arrive by air.
Is it OK to print my logo on led light product?
Yes. Please inform us formally before our production and confirm the design based on our sample.
Do you offer guarantee for the products?
Yes, we offer 3-5 years warranty to our products.
