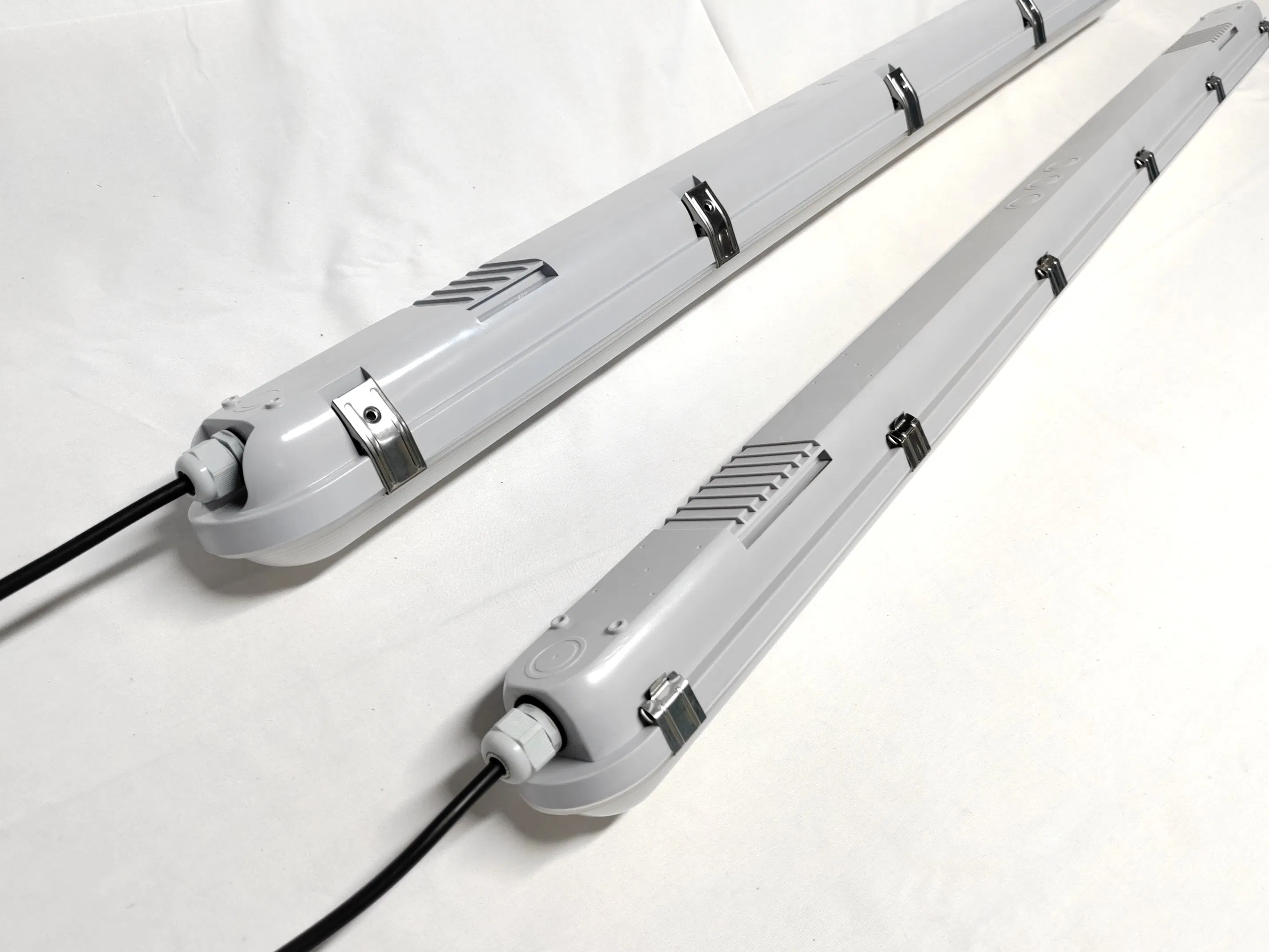

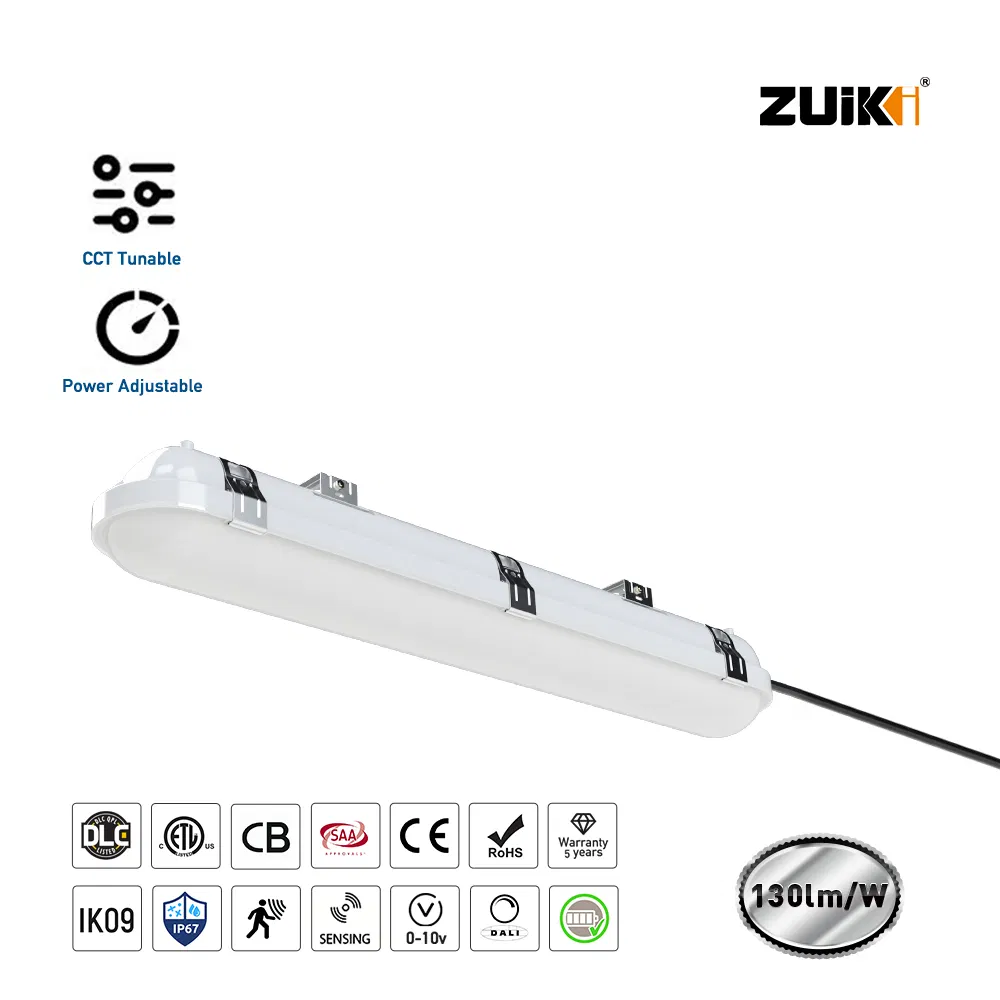

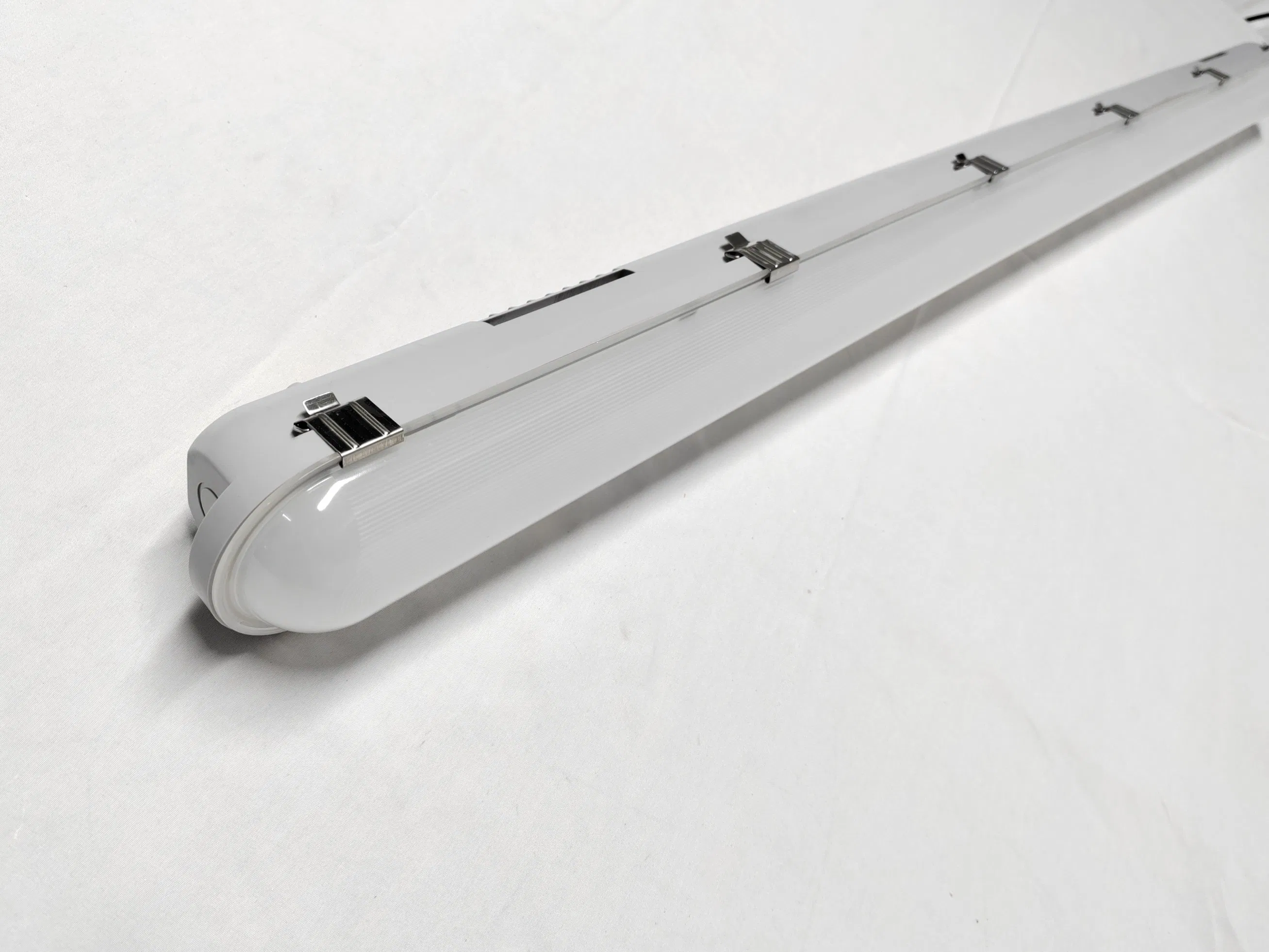

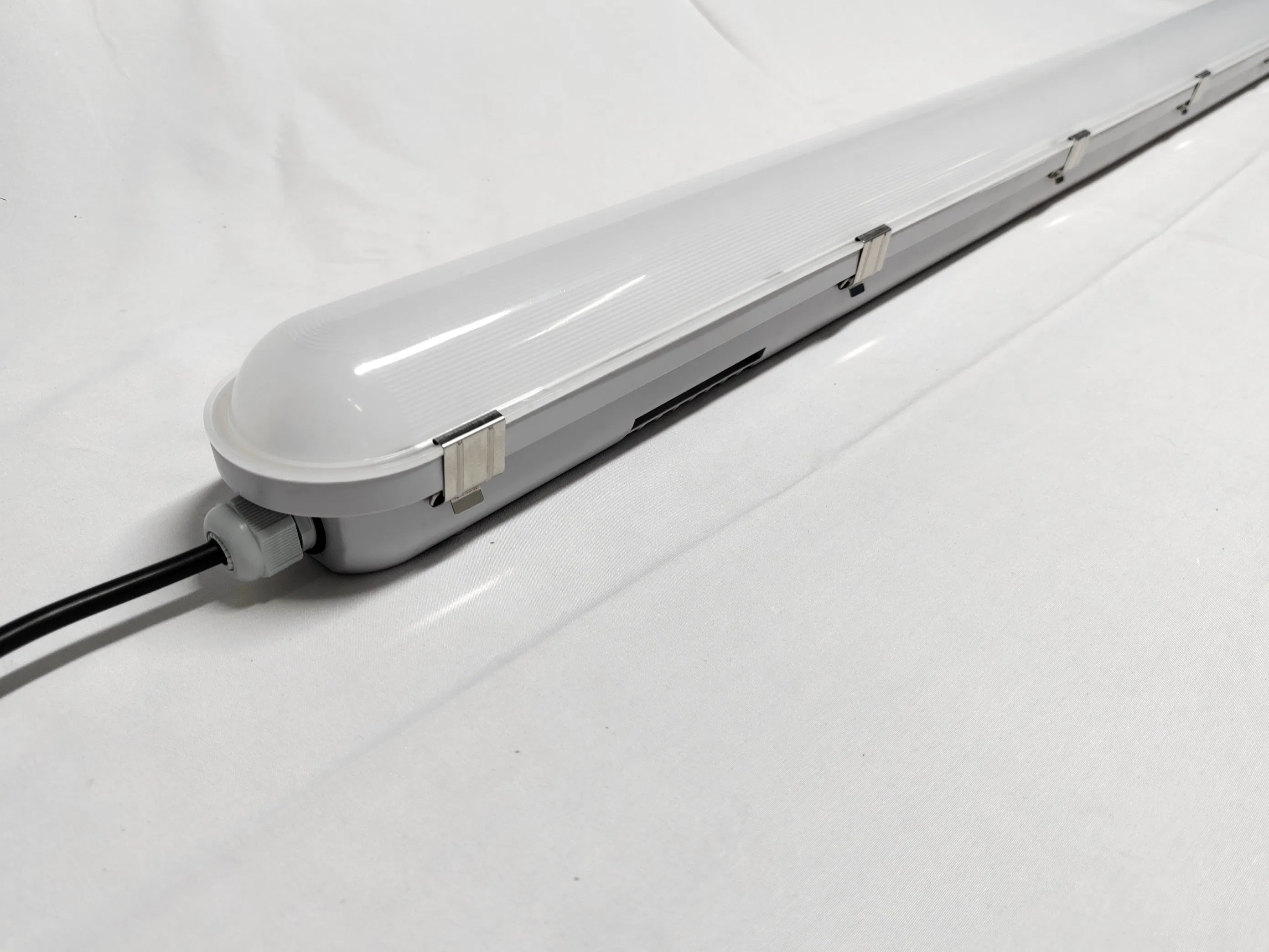

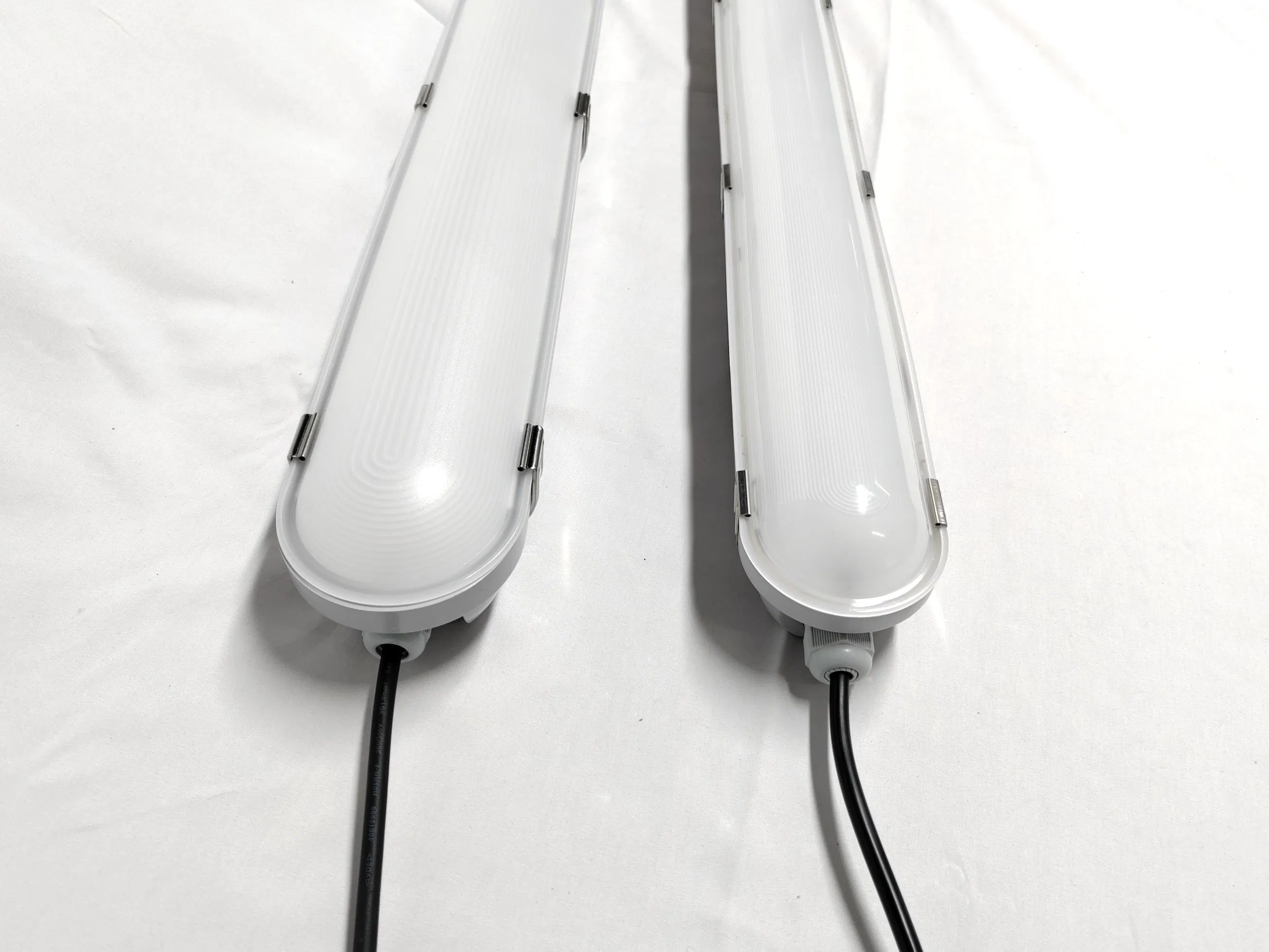

Product Description
| Product Name |

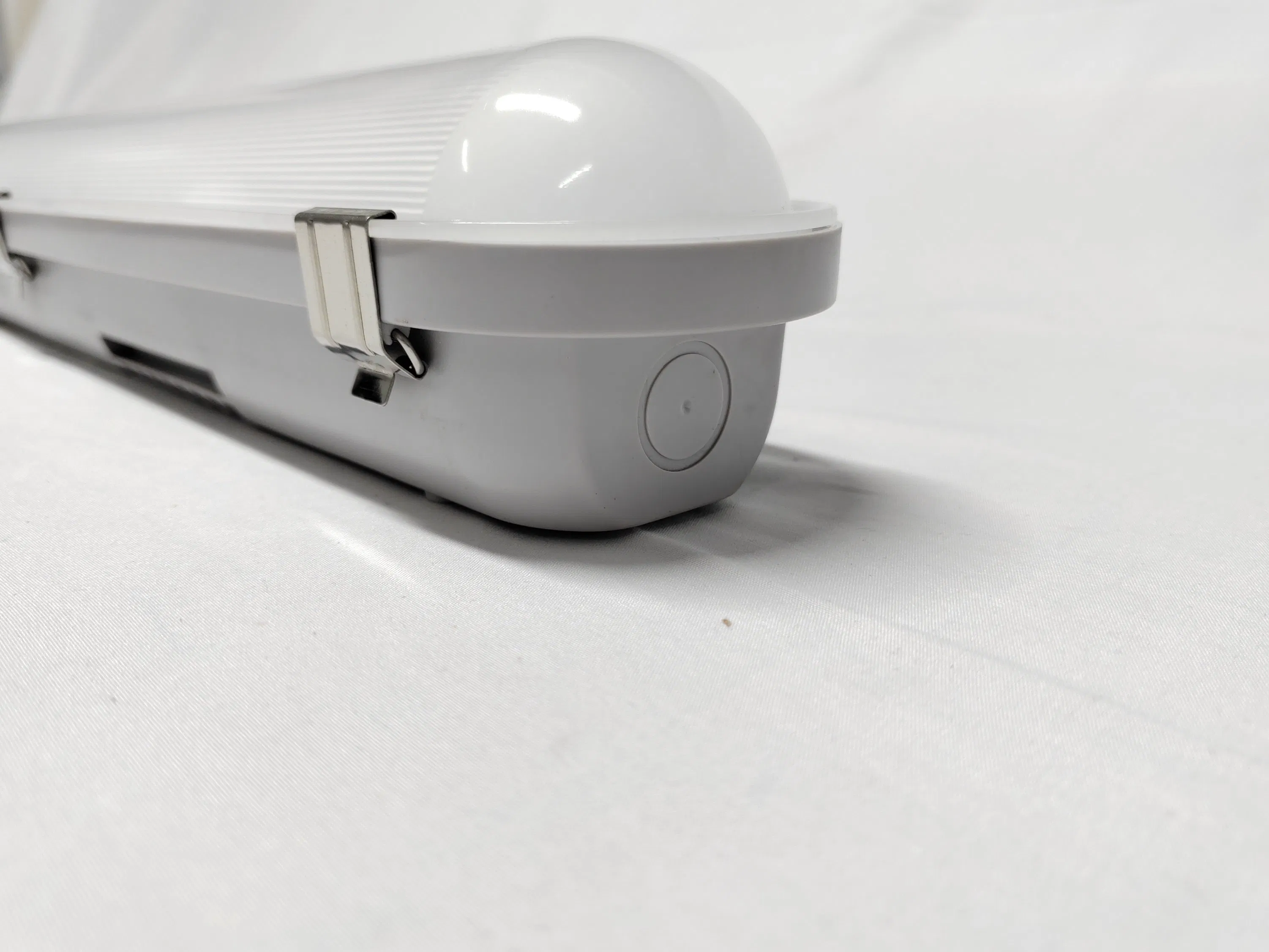

T-shaped Three anti-light |
| Product Number |
JR-T60 |
JR-T120 |
JR-T150 |
| Size (mm) |
N 600*95*80
W 600*125*88 |
N 1200*95*80
W 1200*128*88 |
N 1500*95*80
W 1500*125*88 |
| Voltage |
100-277V |
100-277V |
100-277V |
| Power |
20W |
40W |
60W |
| Power Factor |
0.9 |
0.9 |
0.9 |
| Luminous Flux |
>2200lm |
>4000lm |
>6000lm |
| CRI |
>83 |
>83 |
>83 |
| Operating Temp |
-40°C to 50°C |
-40°C to 50°C |
-40°C to 50°C |
| Protection |
IP65 IK09 |
IP65 IK09 |
IP65 IK09 |
✔
Multiple options available for wattage, length, and color temperature to suit various requirements.
✔
Constructed with special protective materials for high durability.
✔
Lampshade features corrosion-resistant and V0 grade fireproof PC material.
✔
Highly flexible design: lampshade can be bent 180° without cracking.
✔
Full protection against water and dust (IP65) and high impact resistance (IK09).
Frequently Asked Questions
What is the "Three-Anti" protection of this light?
The light is designed to be anti-corrosion, dust-proof, and waterproof, making it ideal for harsh environments.
Is the lampshade fragile?
No, the lampshade is made of V0 grade fireproof PC material which is extremely tough and can be bent up to 180° without cracking.
What are the available power and size options?
The series includes 20W (600mm), 40W (1200mm), and 60W (1500mm) models to fit different lighting needs.
Can it withstand outdoor or extreme conditions?
Yes, with an IP65 rating for waterproofing and an operating temperature range of -40°C to 50°C, it is built for extreme performance.
What is the impact resistance rating?
The light fixture has an IK09 rating, meaning it can withstand significant mechanical impacts.
What voltage does this light fixture support?
It supports a wide input voltage range of 100-277V, making it compatible with most industrial and commercial power systems.
