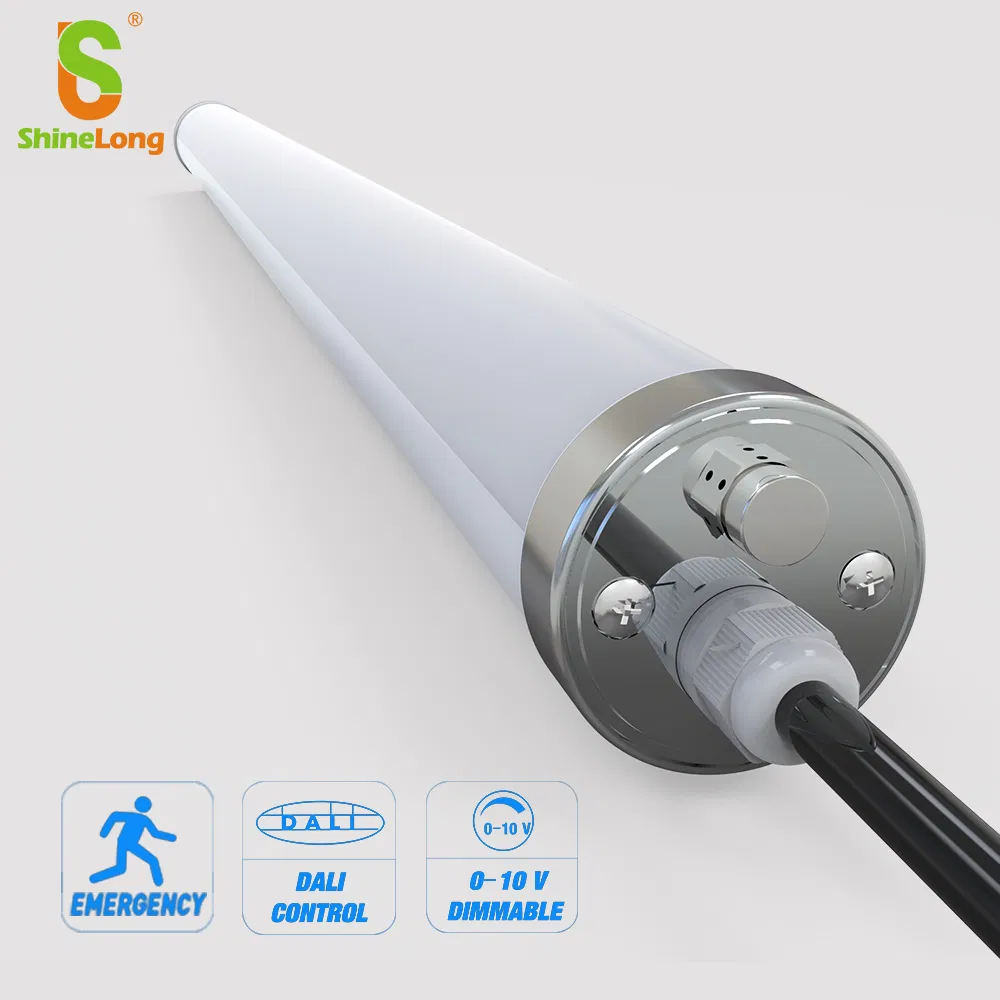

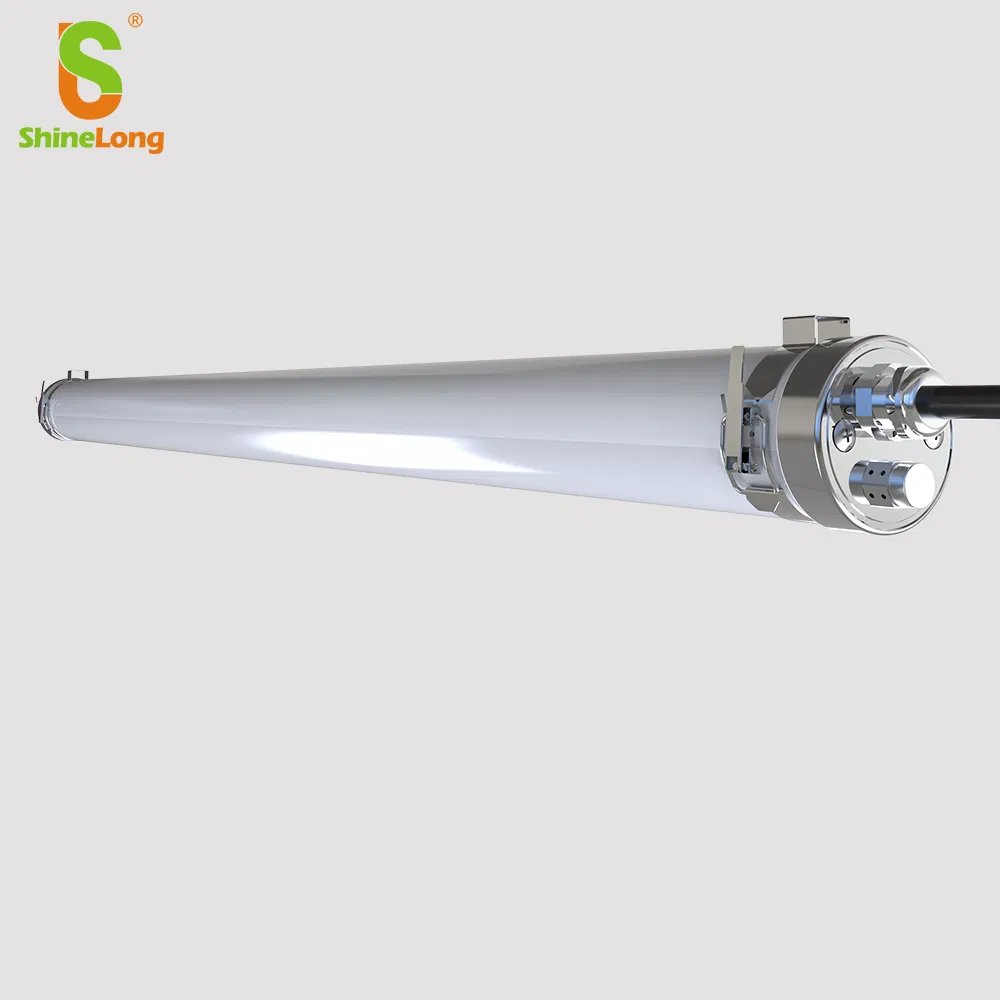

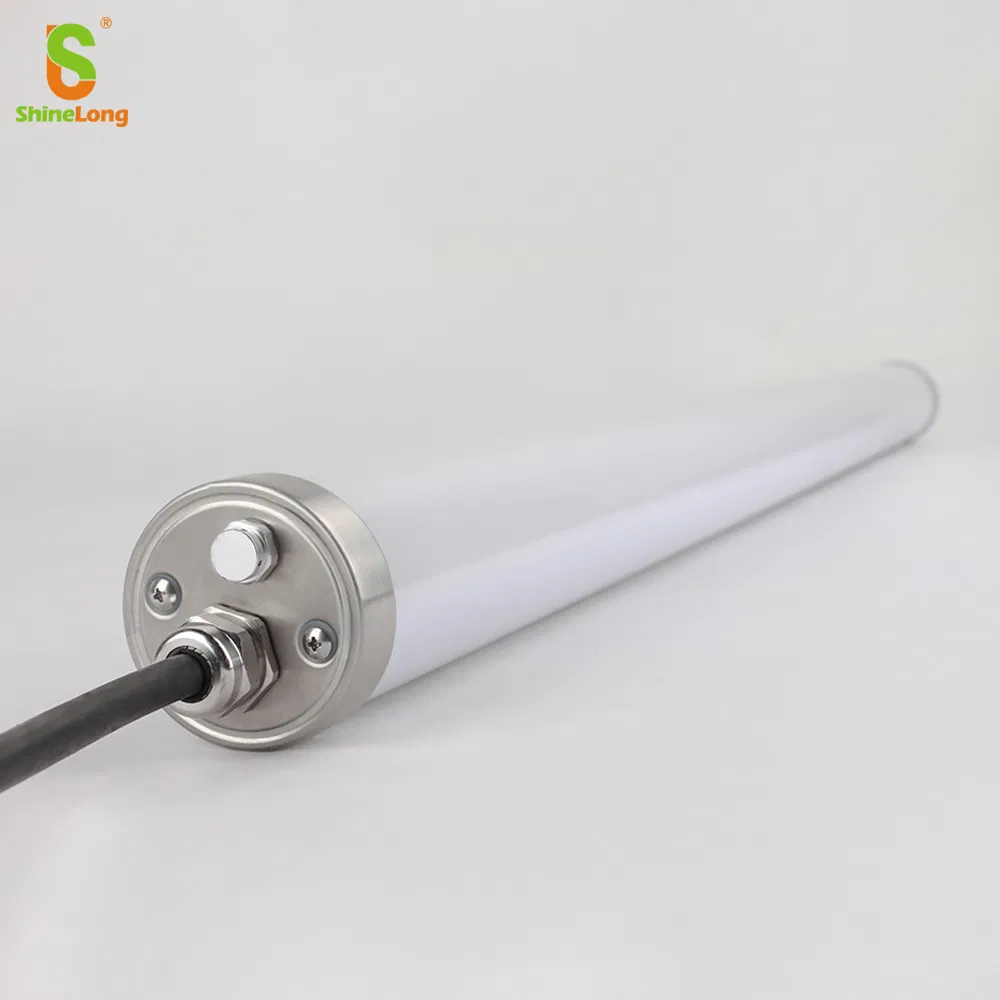

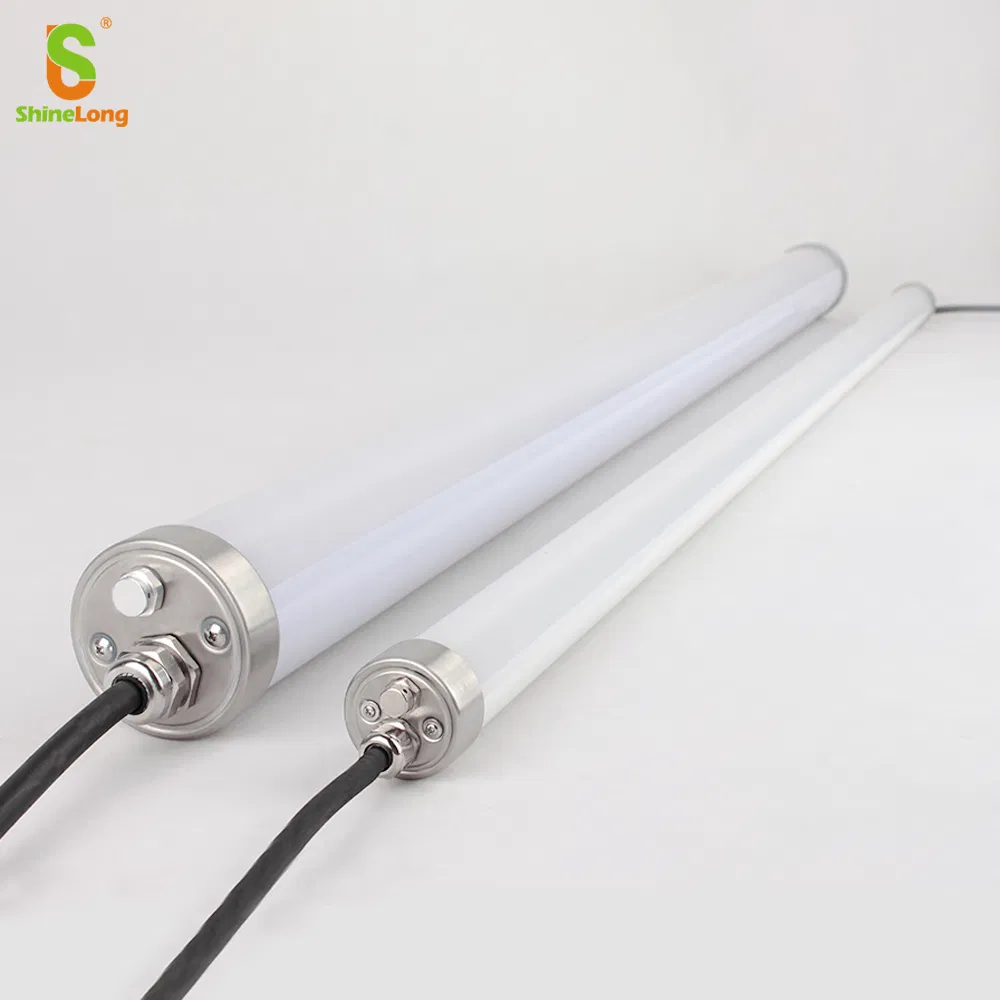

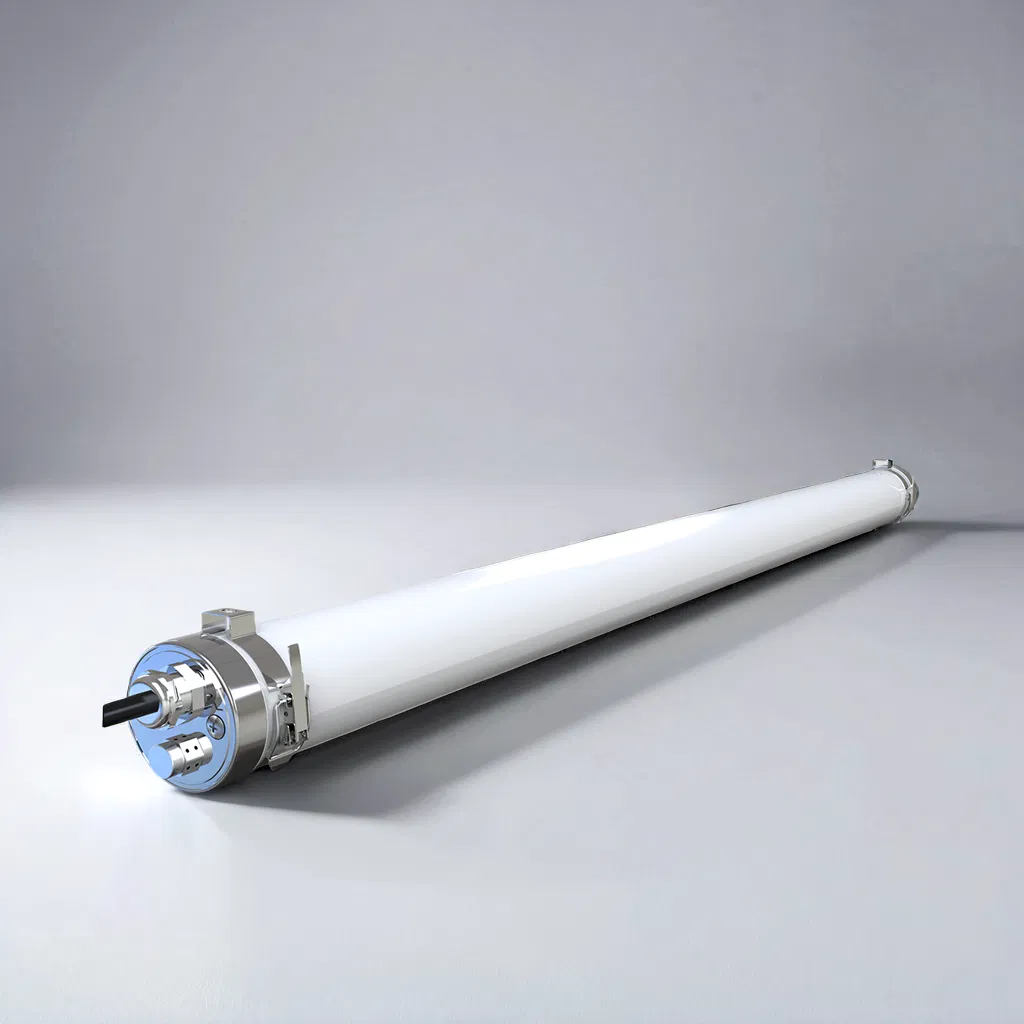

IP69K Ik10 Industrial Tube Light LED Tri-Proof Fixture with 0-10V Dimming

⭐ Basic Information

Model NO.

SL-P69X4-36-X

Feature

Anti-corrosion, Dust-Proof, Waterproof

Material

Full PC / PMMA Housing

IP Rate

IP69K

Power

20W/36W/45W

Certification

ENEC, SAA, CE, RoHS, ERP, D-Mark

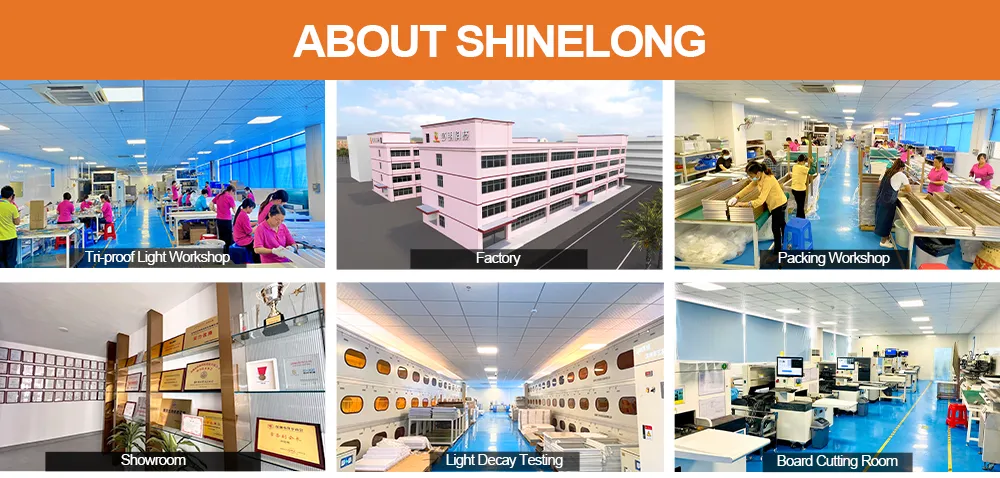

🏢 Manufacturing Excellence

📜 Quality Certifications

💡 Product Features

Global recognition secured by ENEC, SAA, CE, RoHS, ERP, and D-Mark certifications.
Meticulously engineered robustness with IP69K and IK10 validation.
Crafted from flame-retardant 94V0 materials, offering exceptional durability.
Anti-corrosion (PMMA) and Anti-UV (PC) capabilities, surpassing the 850ºC glow wire test.
Advanced Aluminum Rebreather design for superior ventilation and performance.
High efficiency levels reaching up to 150lm/w, leading industry standards.
ENEC Certified flicker-free driver with THD < 15% for smooth operation.
Long-lasting performance (L80B10) beyond 50,000 hours with a 5-year warranty.

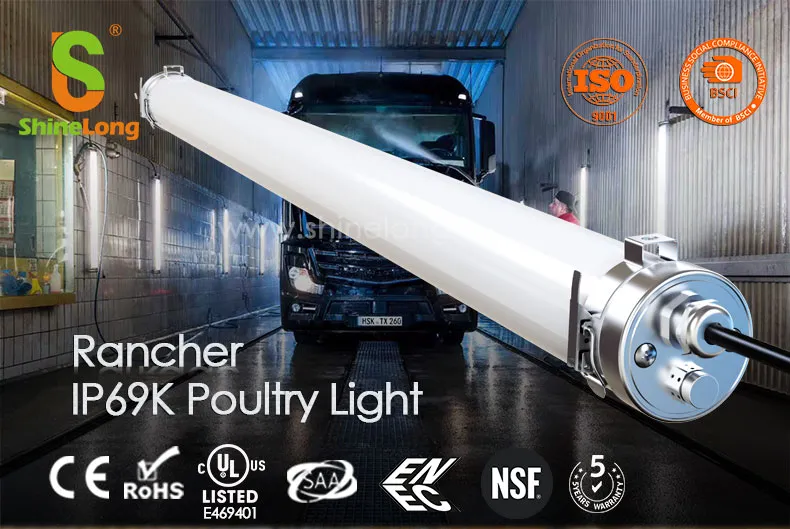

Ideal for Food & Meat processing, Parking areas, Chicken sheds, and Livestock farms.

📸 Product Details

📊 Technical Parameters

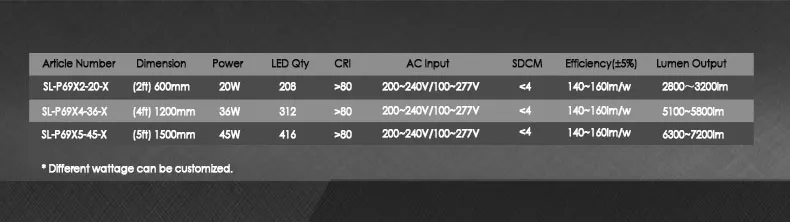

Parameter	Specifications

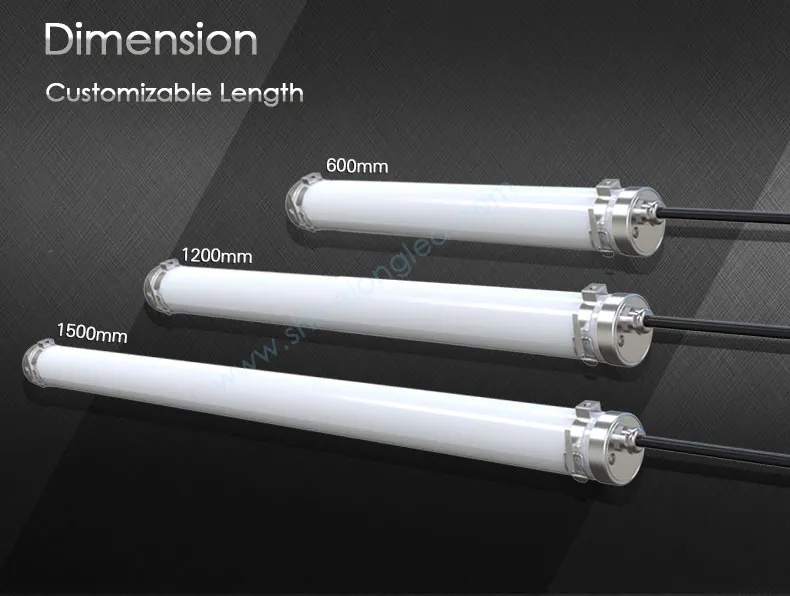

Size	2Ft, 4Ft, 5Ft, Customizable for projects.
Wattage	20W, 35W, 45W - High brightness, flicker-free.
Housing Material	Full PC (Frosted) / Full PMMA for Anti-corrosion.

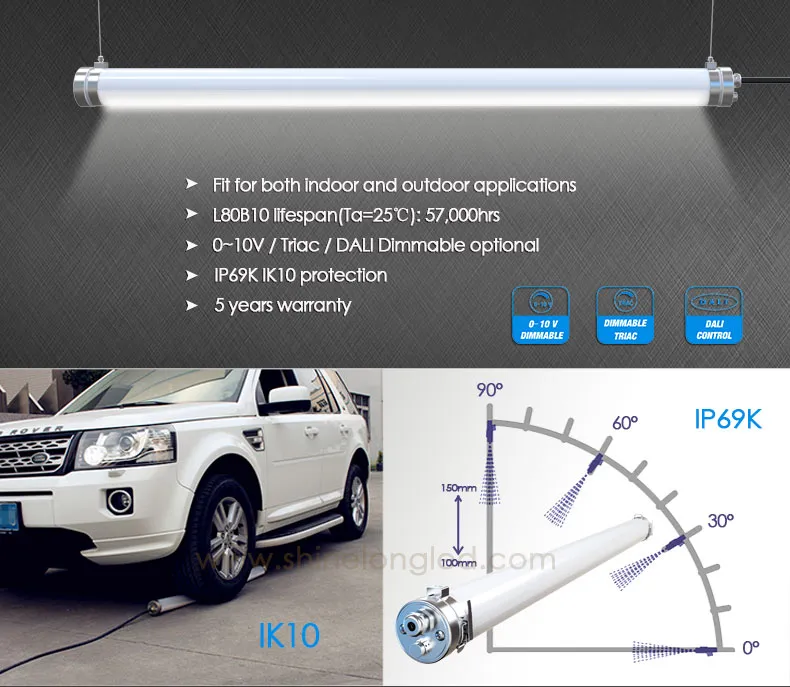

Protection	IP69K Waterproof, Dust-proof, IK10 Pressure-proof.
Efficiency	130lm/w - 150lm/w ±10%.
Working Voltage	AC200-240V, 50/60Hz.

📦 Packaging & Shipping

❓ Frequently Asked Questions

What makes the IP69K rating important?

The IP69K rating ensures the fixture can withstand high-pressure washdowns and steam cleaning, making it ideal for the food and beverage industry where hygiene is critical.

Are these lights resistant to ammonia and corrosion?

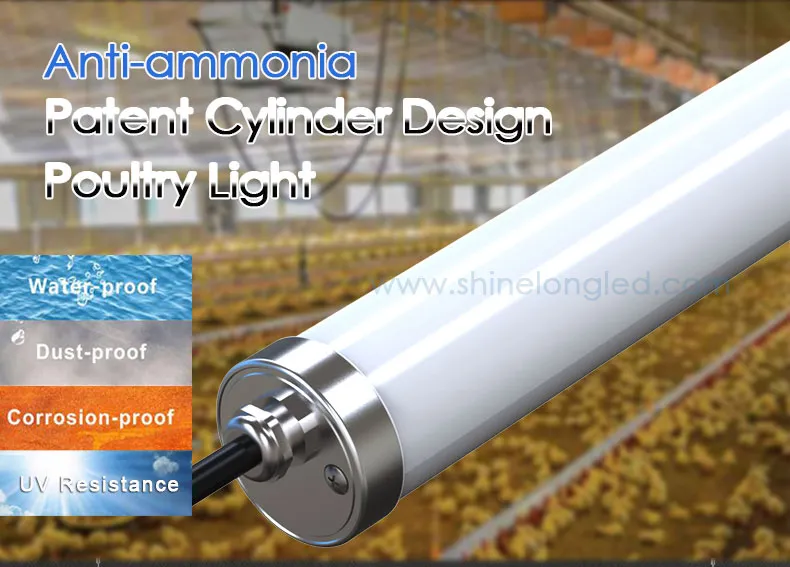

Yes, the PMMA housing option is specifically designed to be anti-corrosive and resistant to ammonia, which is essential for poultry farms and livestock applications.

What is the warranty period for this product?

We provide an extensive 5-year warranty, supported by high-quality components and an ENEC certified flicker-free driver.

Can these lights be linked together?

Yes, the design allows for linkable installations, making it easy to create continuous rows of lighting in warehouses or corridors.

Is the driver flicker-free?

Absolutely. We use ENEC certified flicker-free drivers with a Total Harmonic Distortion (THD) of less than 15% to ensure eye comfort and steady operation.

What mounting options are available?

The fixtures support both suspending and ceiling-mounted installations to suit various architectural requirements.
