Technical Specifications Overview
Item Name:IP69K Vapor Tight LED Luminaire

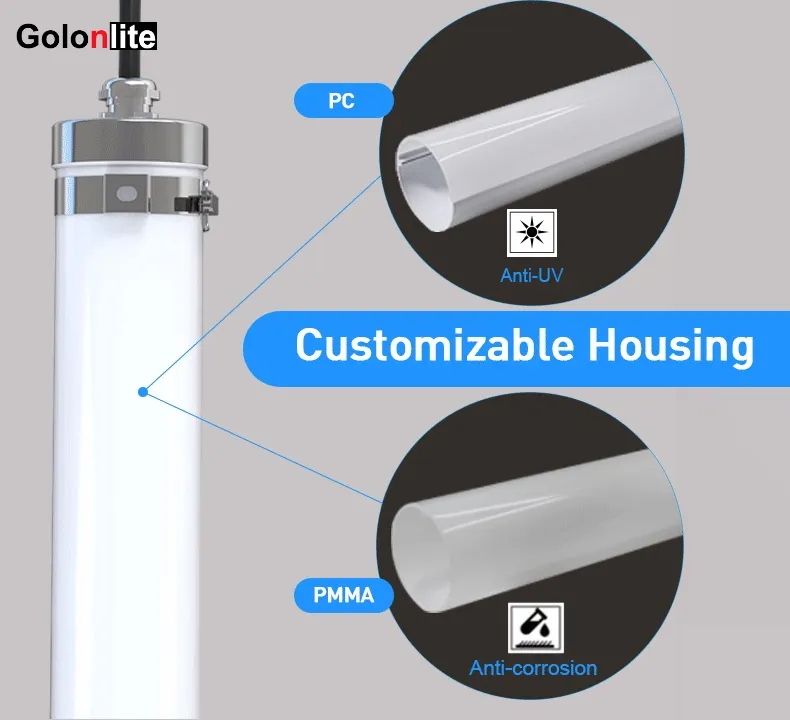

Material:Aluminum Alloy & PC Cover
IP Grade:IP69K IK10 Vapor Tight
Lumens:130-160lm/W Efficiency
Power Factor:PF > 0.95
Life Span:> 50,000 Hours

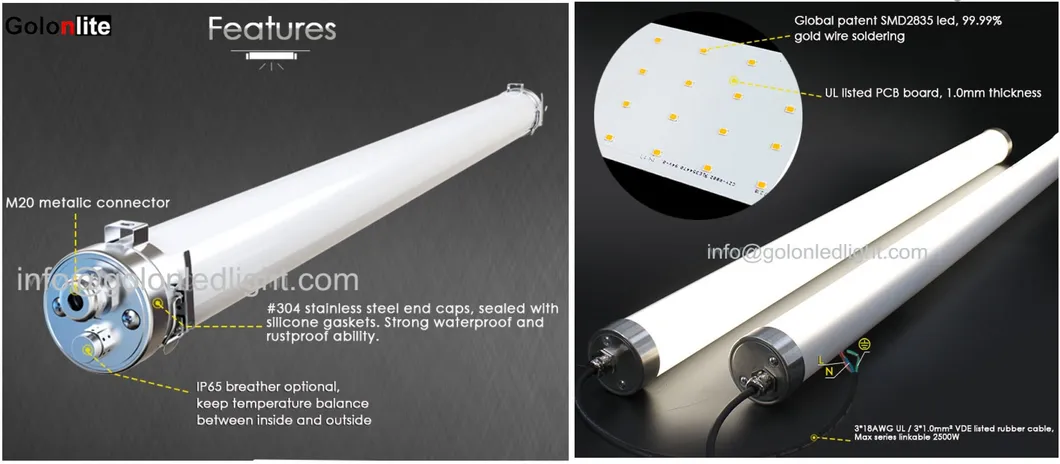

Features:Anti-corrosion, Dust-Proof, Waterproof
CRI:Ra > 80, SDCM < 4
Product Description

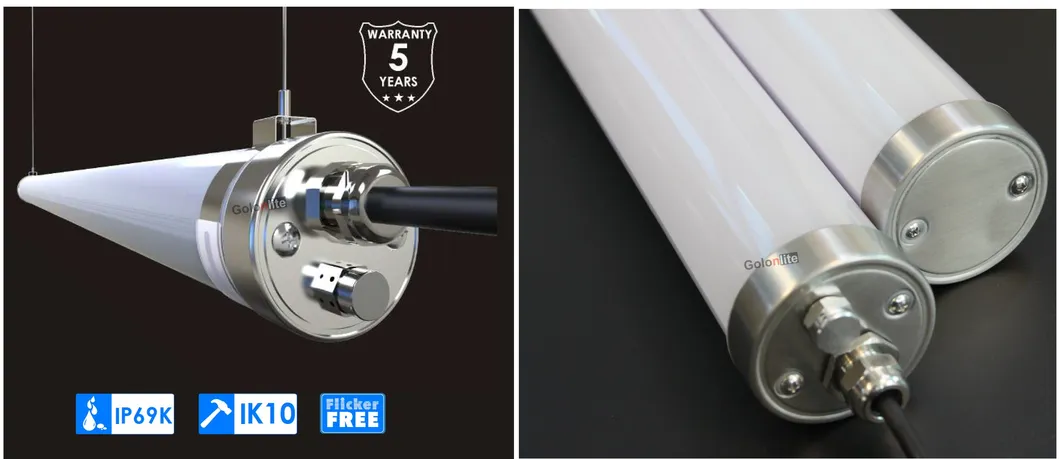

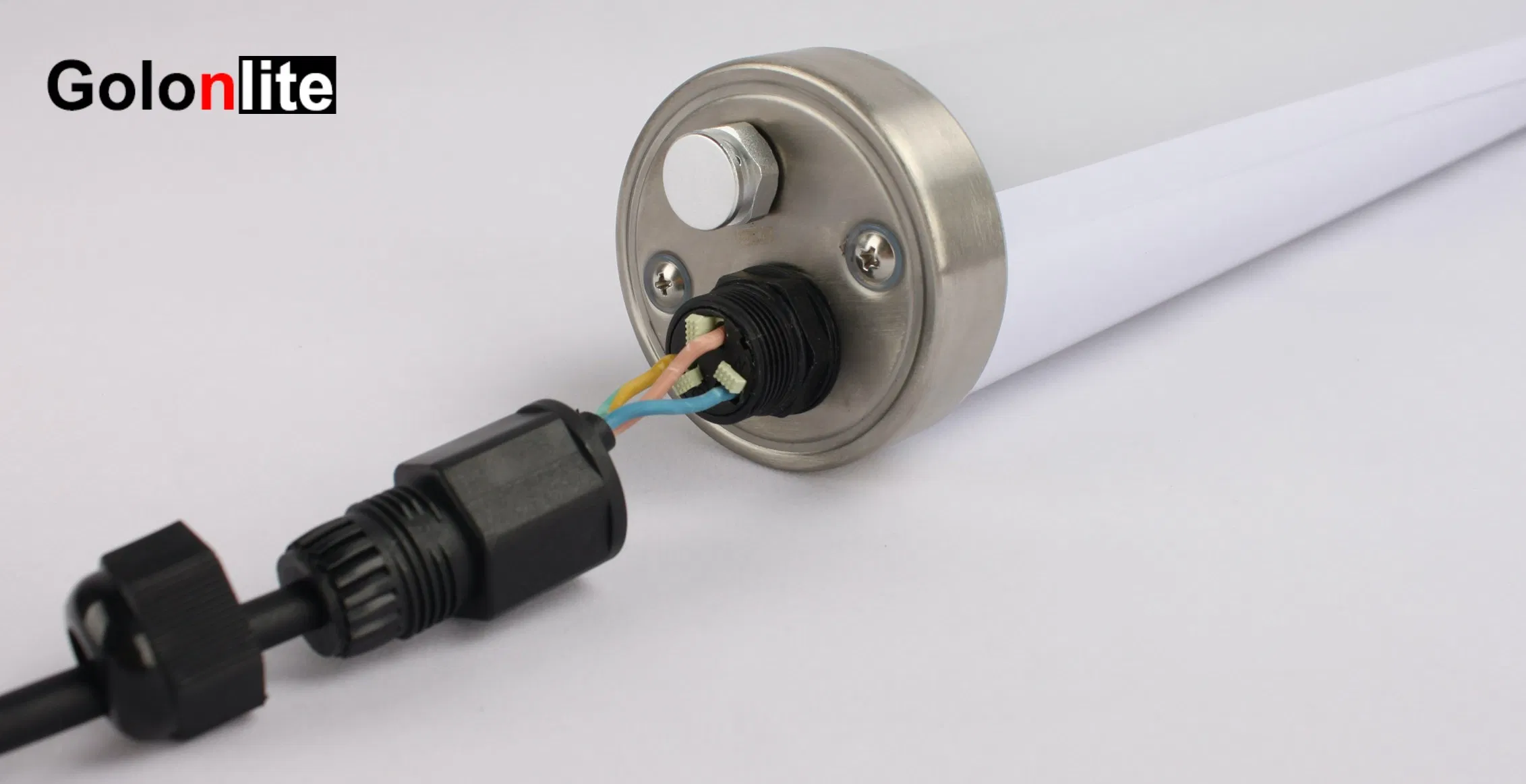

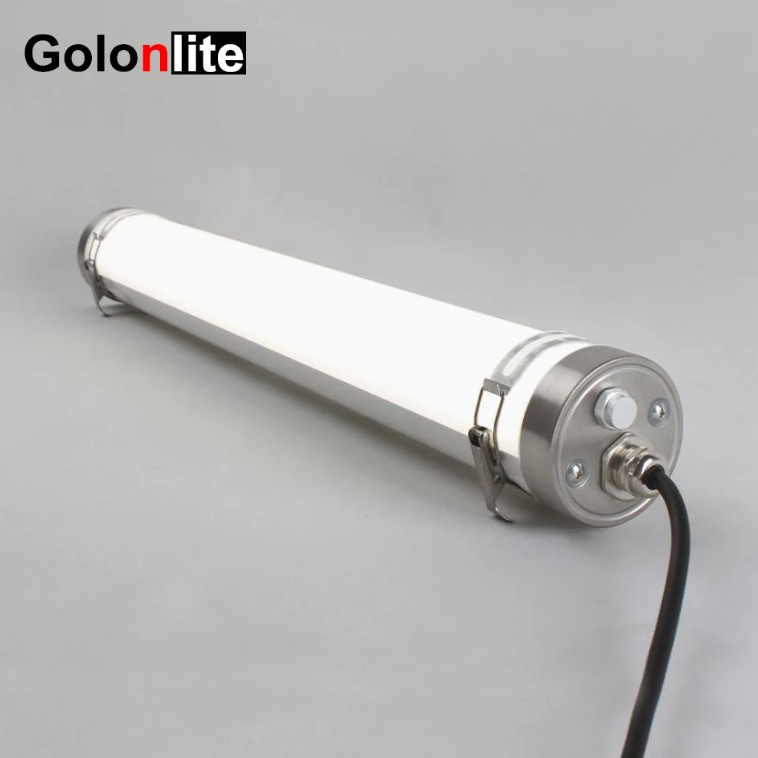

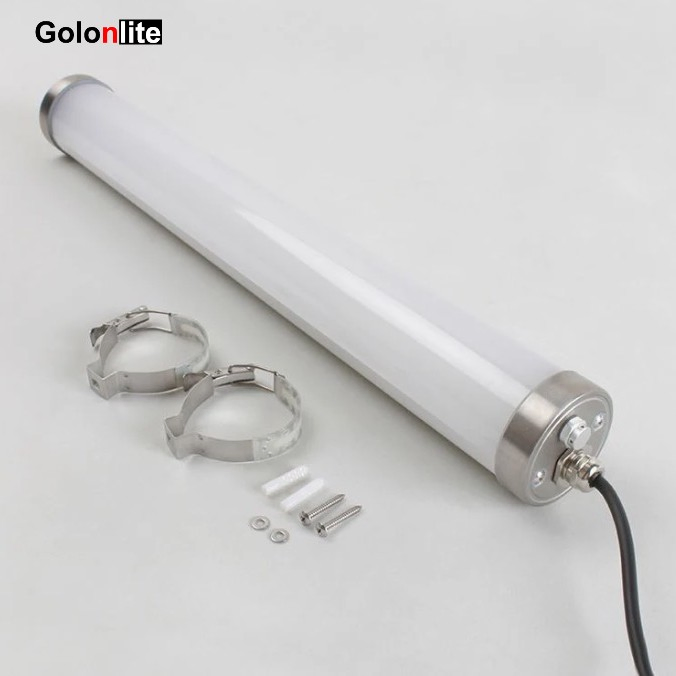

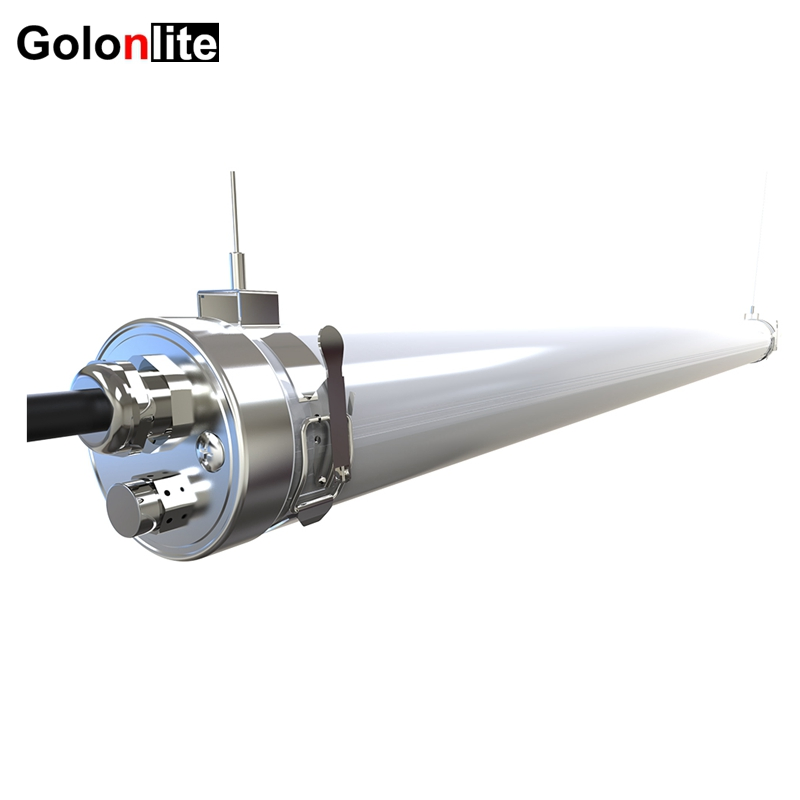

IP69K Light Vapor Tight LED Triproof Luminaire
Specifically designed for high-demand environments like food processing factories, carwashes, and chicken farms. Dialux lighting study is available for project planning.
| Power Options |
60W, 50W, 30W |
Item No. |
GL-TP Series |
| LED Type |
SMD2835 |
Luminous Efficiency |
130-160Lm/W |
| CCT (K) |
2700K - 6500K |
CRI |
> Ra80 |
| Power Supply |
ENEC Certified flicker-free driver, THD < 15% |
Lifespan |
> 50,000 Hours |
| Input Voltage |
100-277VAC / 347V / 480V 50/60Hz |

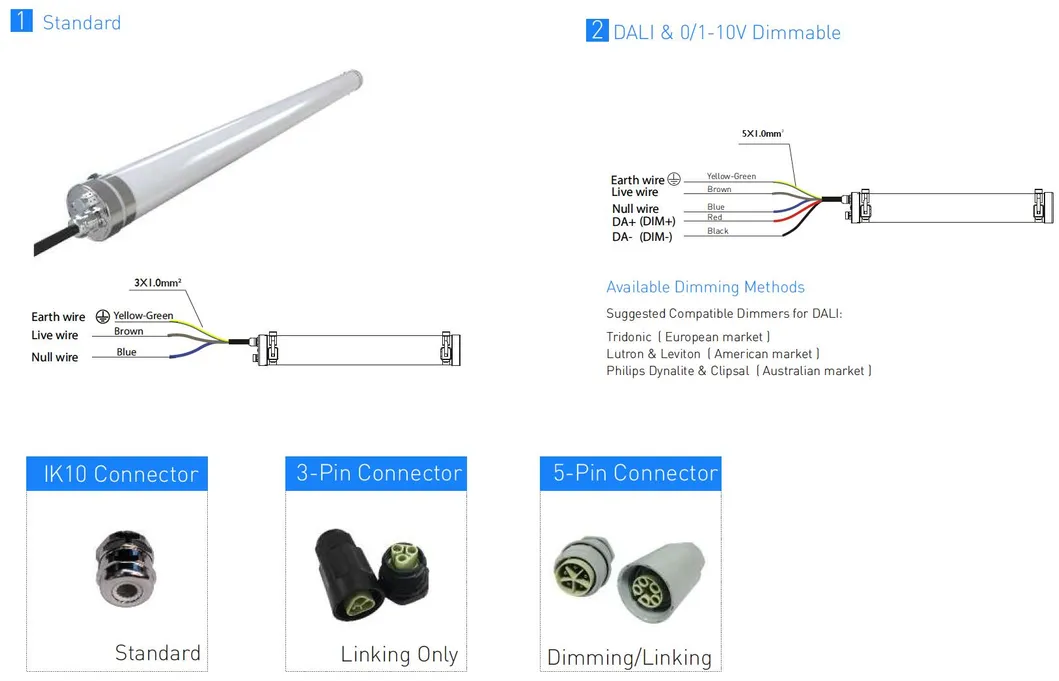

Dimming |
0-10V, PWM, Resistance, Dali dimmable |
| Beam Angle |
120° |
Protection |
IP69K waterproof, Vapor tight |

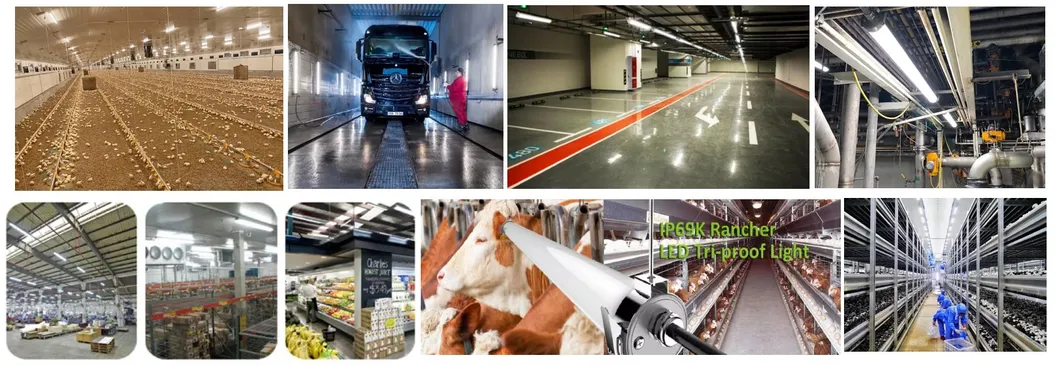

Production & Applications

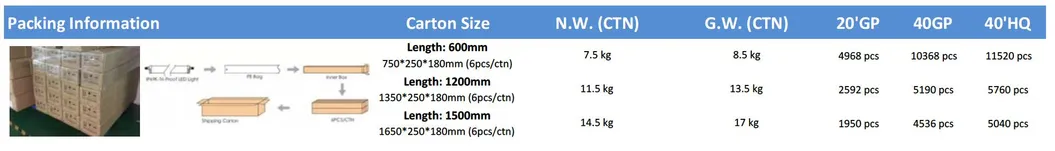

Ensuring strong packaging for global transport and providing professional lighting solutions for industrial spaces.
Frequently Asked Questions
What makes IP69K rating different from IP65?
IP69K is the highest protection rating available. While IP65 protects against low-pressure water jets, IP69K is designed for high-pressure, high-temperature wash-downs, making it ideal for food processing and carwash environments.

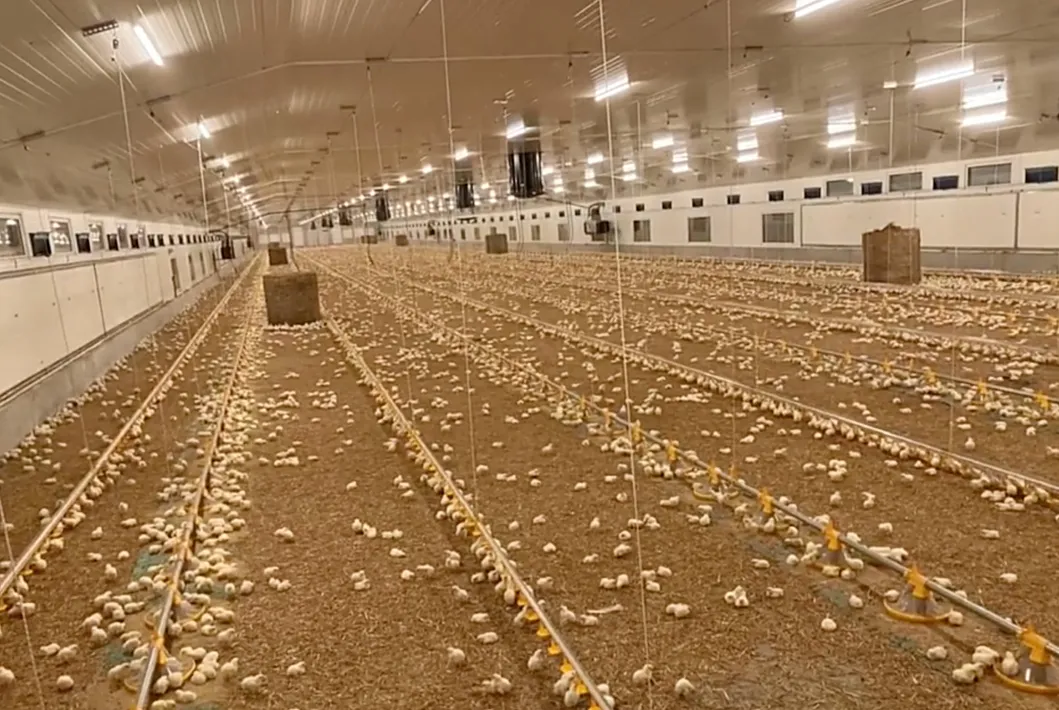

Can these lights be used in livestock farms?
Yes, these fixtures are specifically designed for chicken sheds and livestock farms. They feature anti-corrosion materials and are vapor-tight to withstand the ammonia and humidity common in farming environments.
Do the lights flicker?
No, our luminaires use ENEC certified flicker-free drivers with a THD < 15%, ensuring a stable and comfortable lighting environment for both workers and livestock.

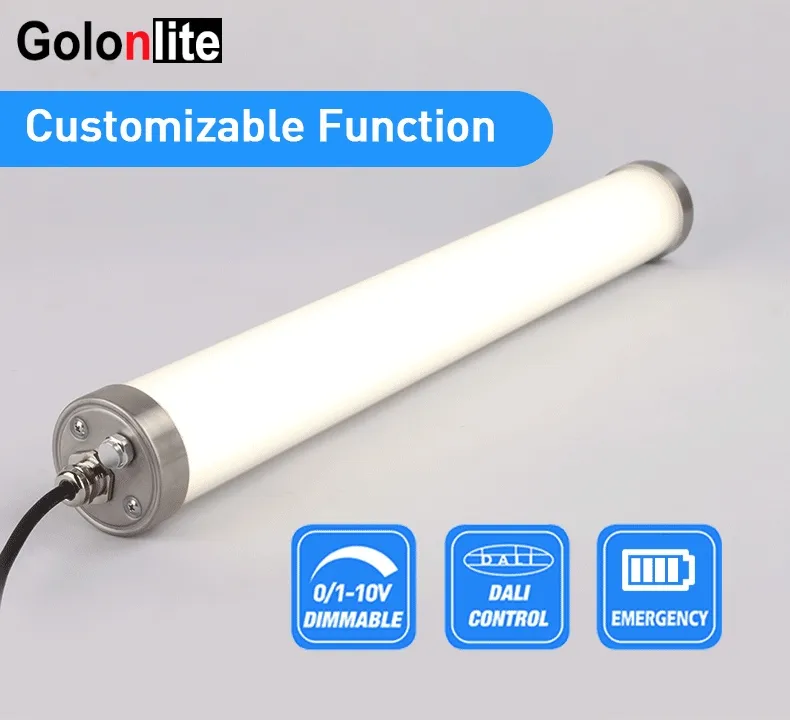

What dimming options are available?
We offer multiple dimming solutions, including 0-10V, PWM, Resistance, and DALI dimmable options to suit different control systems.
How long is the warranty period?
We provide a 5-year warranty on these LED tri-proof lights, backed by a lifespan of over 50,000 hours.
Is lighting design support provided?
Yes, we provide free lighting design services, including IES files and Dialux lighting solutions to ensure the best configuration for your project.
