| APPLICATIONS | Hazardous location LED explosion proof lighting fixture; Class I Division 2, Groups A, B, C and D; Group II, Zone 1 & Zone 2; Zone 21 & 22. |

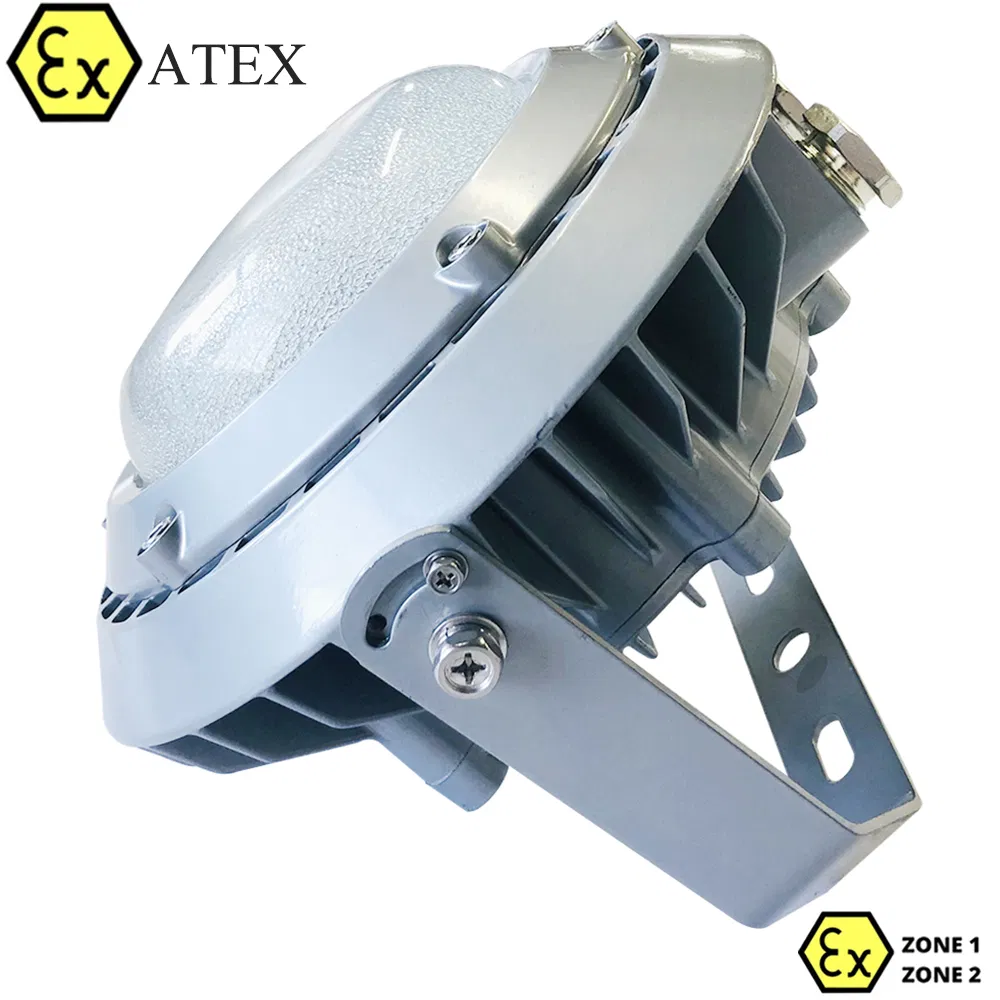

| CERTIFICATIONS | ATEX, IECEx certificate issued by TUV, CE, ROHs |
| HOUSING BODY | Aluminum alloy ADC12, WF2 grade |

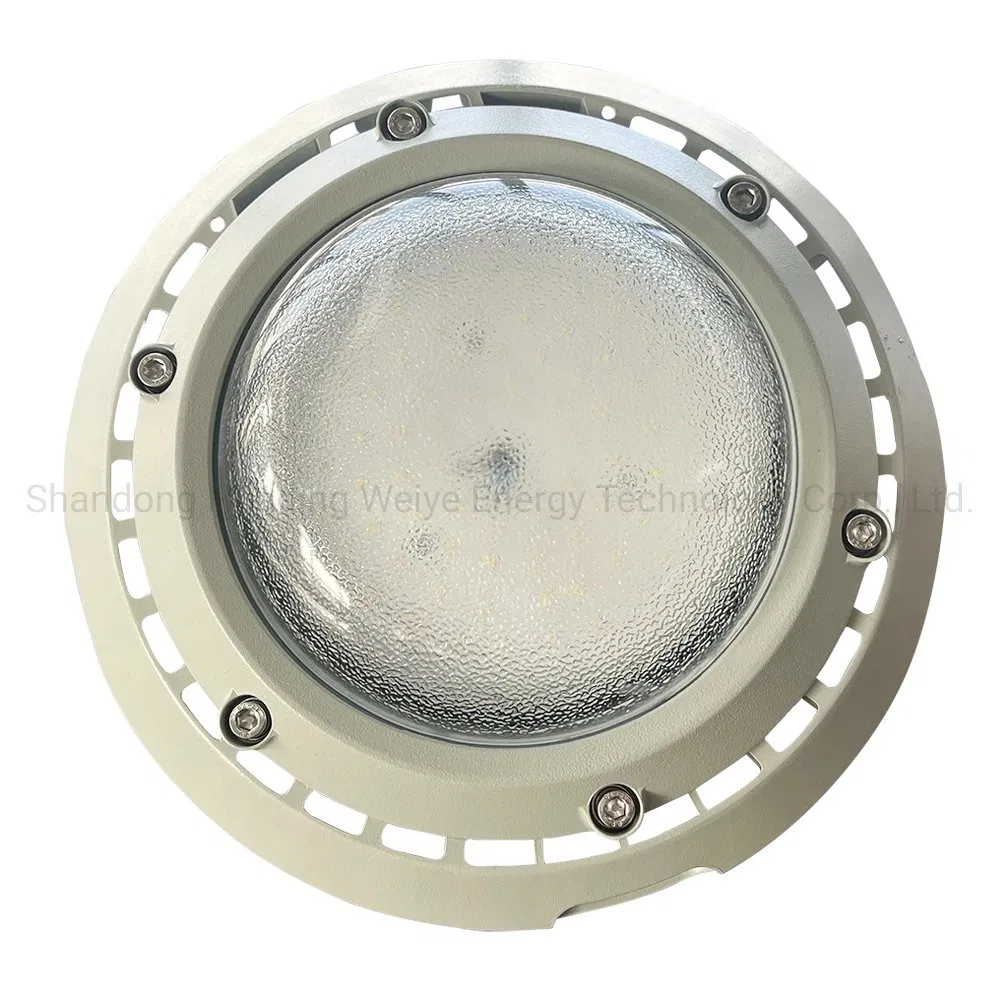

| LENS | 4mm thick tempered glass & PC reflector 120º, +95% light transmission. Shock and vibrations resistant. |

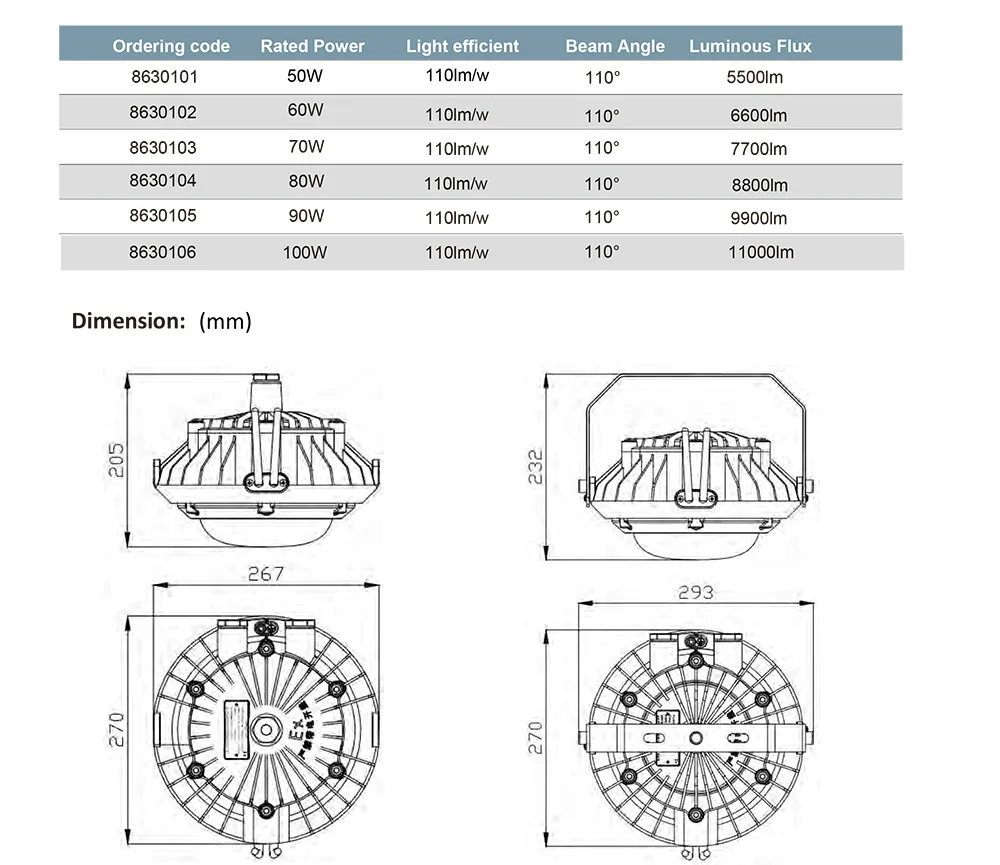

| PERFORMANCE | Up to 110 lm/w. From 50W up to 100W. L70 (hrs) rated > 65,000. |
| IP RATED | IP66 & IP67 Rated. Dust tight and protected against immersion. Ideal for heavy industry, mining, refineries, and corrosive applications. |

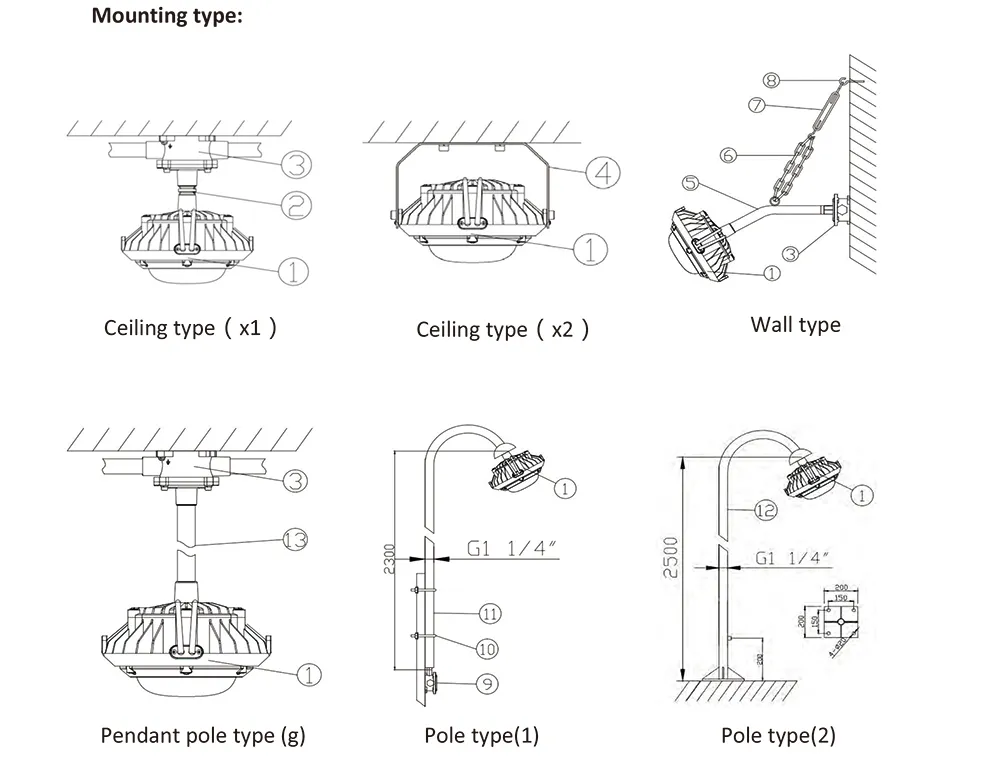

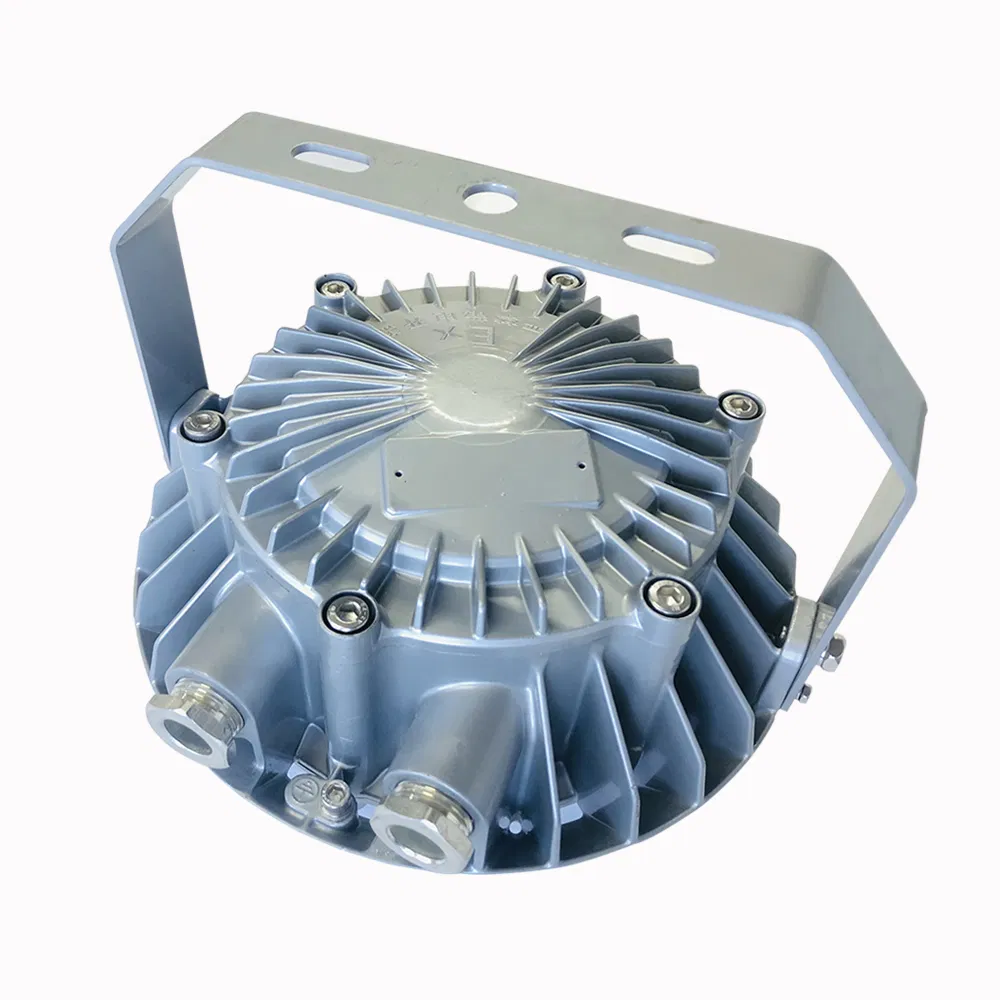

| MOUNTING | Surface/wall mount standard (adjustable bracket included). Pendant kit optional. |
| TEMPERATURE | Operating from -40°F up to 122°F (-40°C to 50°C). |
| DIMMING | 1-10V dimming standard, DALI, Triac |

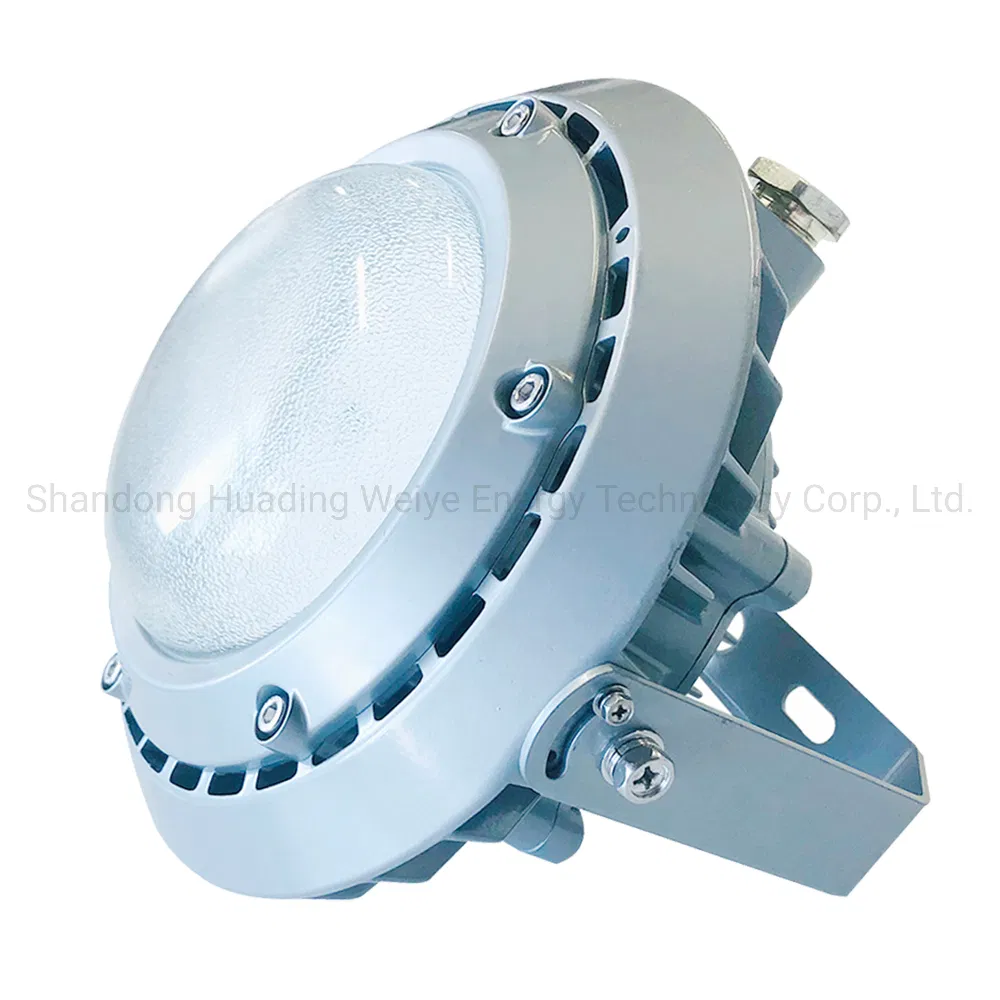

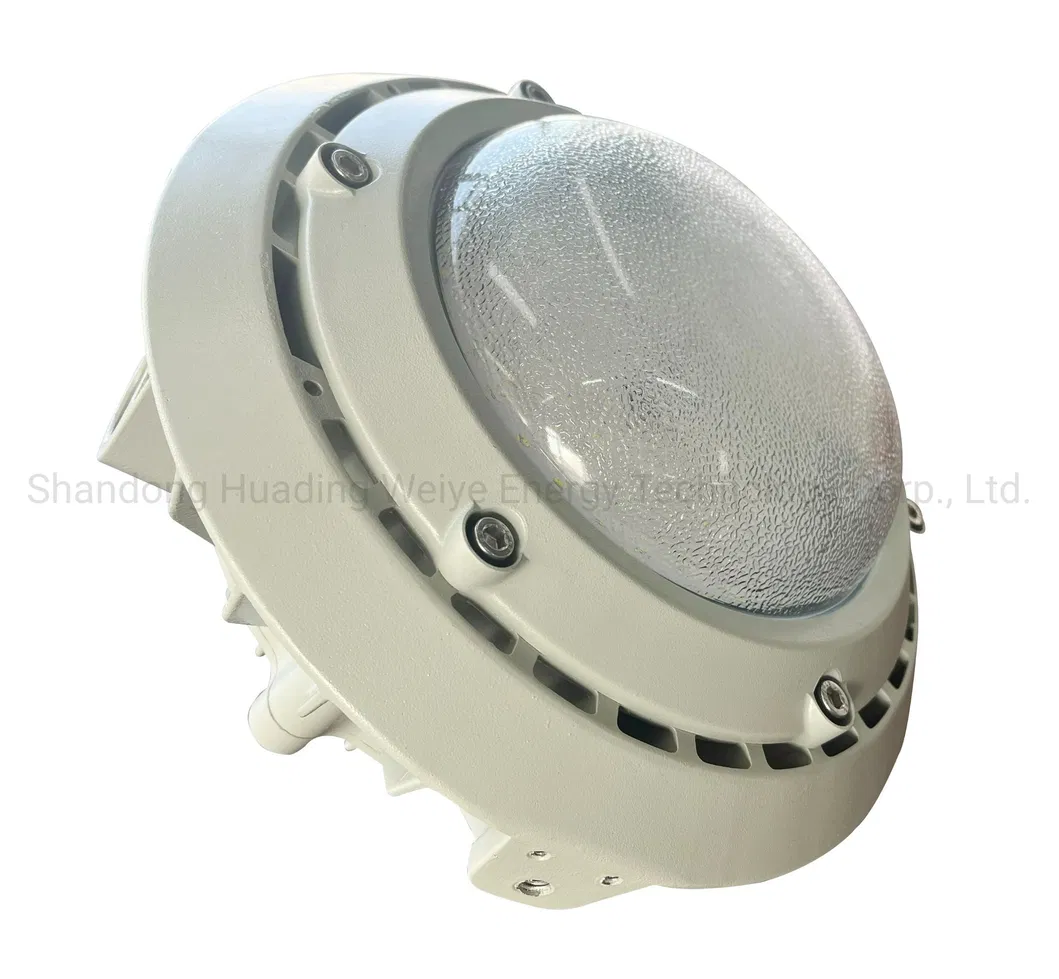

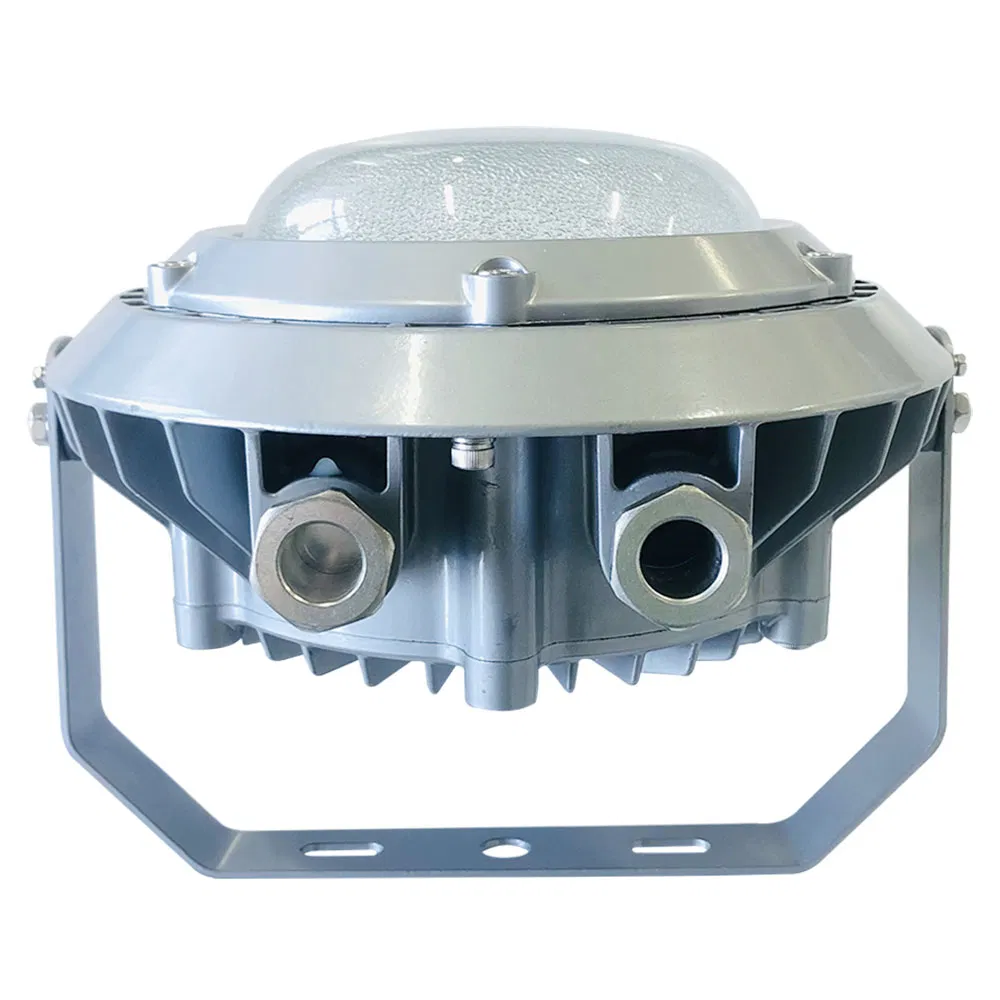

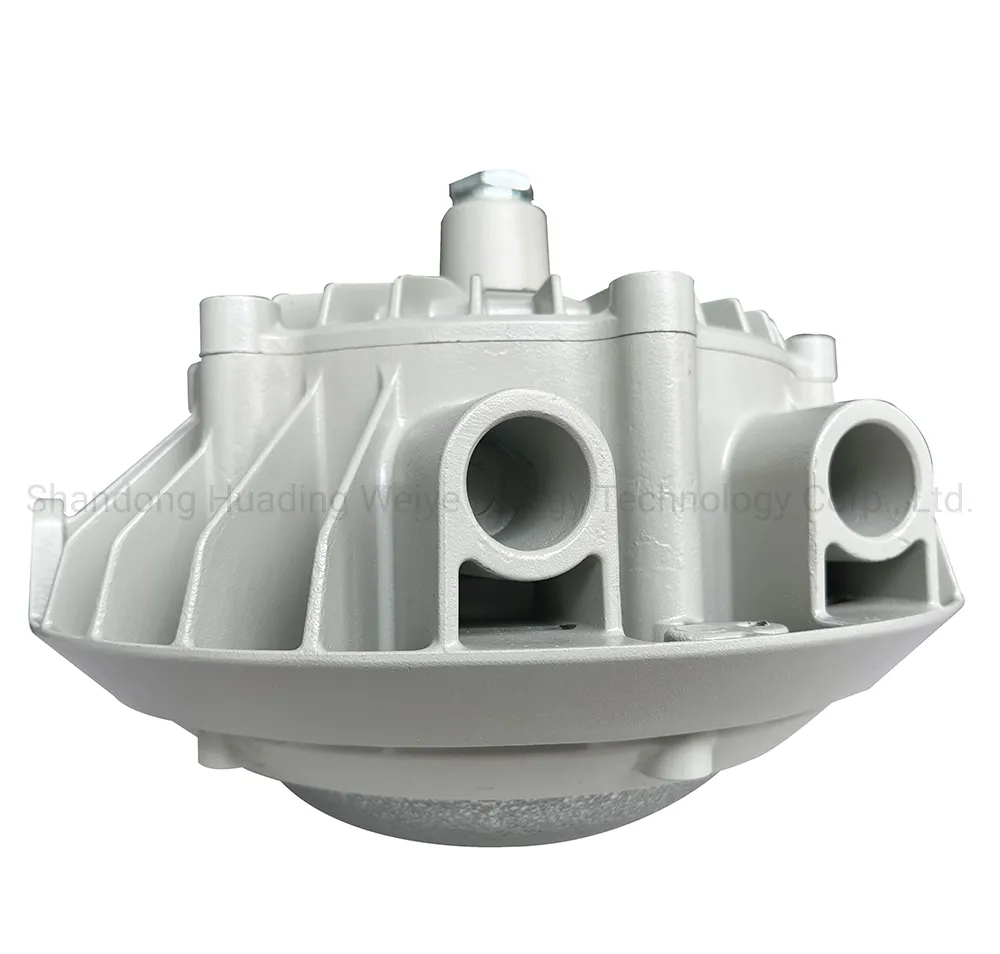

This light is designed specifically for harsh & hazardous environments which require high performance, high reliability, safety, and durable illumination. The compact, low-profile design is ideal for restricted spaces and allows easy access for installation with rear cable entries that protect cabling from damage.
